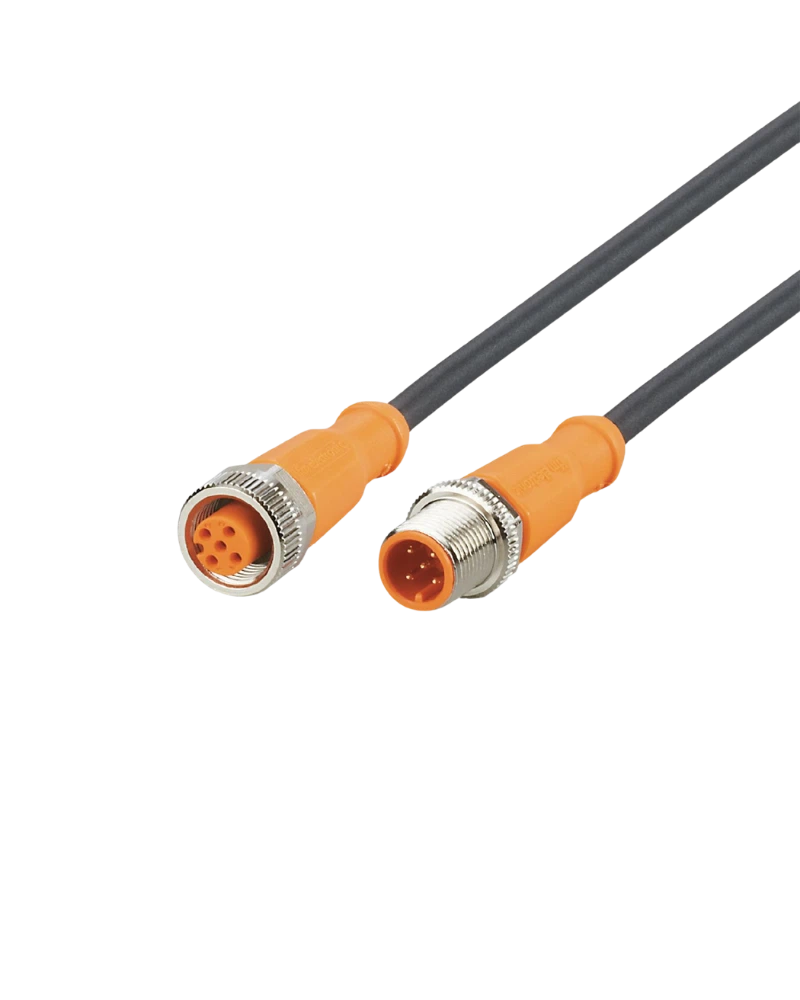

EVC200 is a 5 m M12 connection cable designed for reliable industrial automation and sensor connectivity. It features straight M12 plug and socket connections with five gold-plated contacts. The PUR cable is halogen-free and suitable for demanding industrial environments. High IP protection and drag-chain compatibility support long-term machine operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC200 provides a straight plug-to-socket connection for compatible industrial automation components. The 5 m cable length provides flexible routing across machine assemblies. Five contacts support multiple signals. Gold-plated contacts provide stable electrical connectivity.
The cable uses black PUR with 5 × 0.34 mm² conductors. It is halogen-free and silicone-free. TPU connector bodies provide mechanical protection. FKM sealing supports reliable environmental resistance.
The 5-pole M12 design supports industrial signal connections. Gold-plated contacts provide dependable electrical performance. The cable is suitable for sensors, actuators and control equipment. Its robust connector construction supports repeated industrial operation.
IP65, IP67, IP68 and IP69K protection supports harsh industrial environments. The cable is suitable for oils, coolants and lubricants. Drag-chain suitability and high bending-cycle performance support moving machinery.
5 m cable length
M12 plug-to-socket connection
5-pole A-coded design
Straight / straight configuration
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Factory automation
Industrial sensors
Machine tools
Actuator systems
Production machinery
Conveyor systems
Control equipment
Dynamic automation
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOGH050MSS0005H05STGH050MSS |
| Cable Length | 5 m |
| Connector | M12 plug / M12 socket |
| Configuration | Straight / Straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Ø 4.6 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
