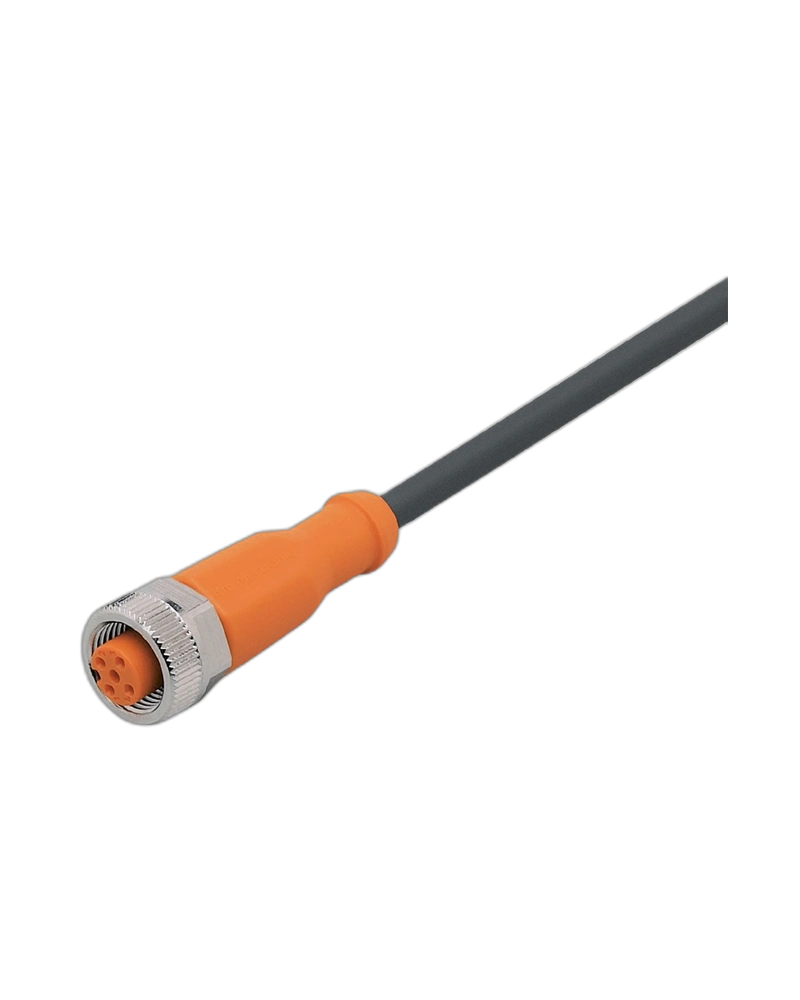

EVC199 is a 25 m M12 connecting cable with a straight 5-pole socket designed for long-distance industrial automation connections. It combines gold-plated contacts with a halogen-free PUR cable. IP65, IP67, IP68 and IP69K protection supports harsh industrial environments. Its drag-chain suitability provides reliable performance in dynamic applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 25 m cable provides long-distance connection between industrial sensors and automation equipment. The straight M12 socket allows convenient installation. Five gold-plated contacts provide multi-signal connectivity. It is suitable for large machines and production systems.
EVC199 uses black PUR cable with 5 × 0.34 mm² conductors. The cable is halogen-free and silicone-free. TPU housing provides mechanical durability. FKM sealing supports reliable environmental protection.
IP65, IP67, IP68 and IP69K protection helps protect against dust, moisture and industrial cleaning. The cable is suitable for oils and coolants. The sealed M12 interface provides dependable connection integrity. This makes it suitable for machine tools.
The cable supports drag-chain applications and repeated movement. More than 5 million bending cycles are supported. The minimum bending radius is 10 times the cable diameter. This helps provide reliable service in automated machinery.
25 m cable length
M12 straight socket
5-pole A-coded connection
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
FKM sealing
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Machine tools
Factory sensors
Production machinery
Conveyor systems
Control equipment
Sensor networks
Large automation installations
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOGH050MSS0025H05 |
| Cable Length | 25 m |
| Connector | M12 socket |
| Design | Straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Ø 4.6 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
