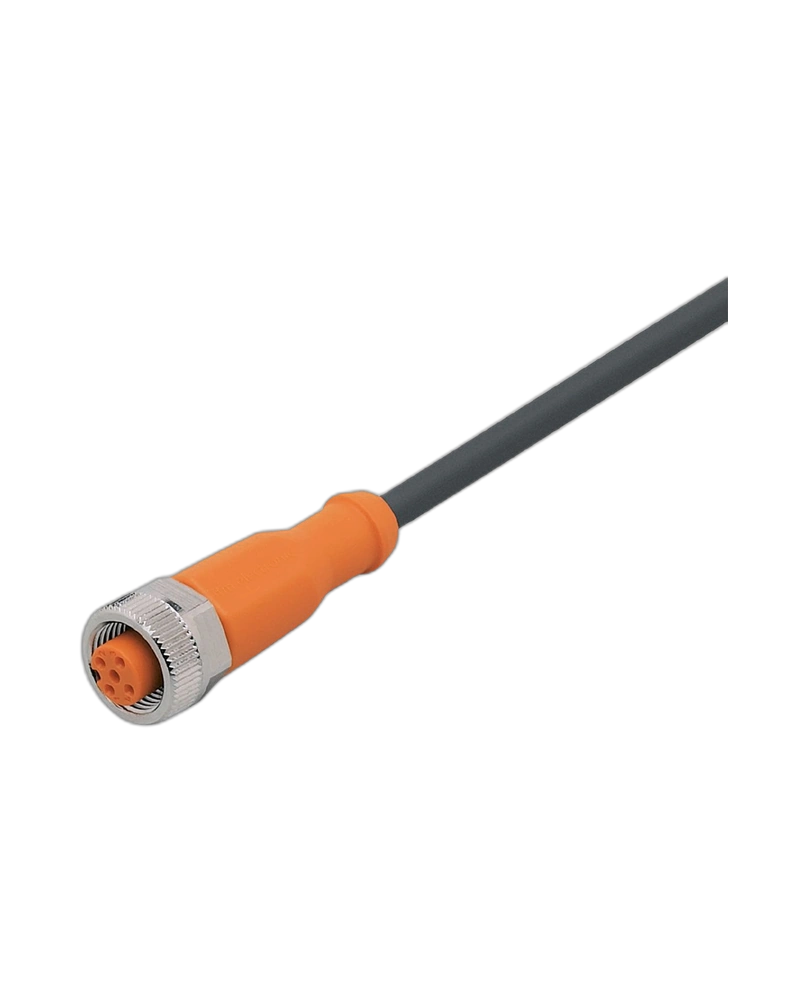

EVC198 is a 20 m M12 connecting cable with a straight 5-pole socket designed for extended industrial sensor connectivity. It features gold-plated contacts and a durable PUR halogen-free cable. High IP protection provides reliable performance in demanding industrial environments. Drag-chain suitability supports dynamic machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 20 m cable provides extended reach between field sensors and automation equipment. The straight M12 socket provides convenient installation. Five gold-plated contacts support multi-signal connections. The cable is suitable for industrial sensor systems.
EVC198 uses black PUR cable with 5 × 0.34 mm² conductors. The cable is halogen-free and silicone-free. TPU housing provides mechanical protection. FKM sealing provides reliable environmental resistance.
The cable provides IP65, IP67, IP68 and IP69K protection. It is suitable for oils, coolants and lubricants. The sealed M12 connection helps prevent moisture and contamination. This makes it suitable for machine tools and factory automation.
EVC198 is suitable for drag-chain installations. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This provides reliable performance in machinery with repeated cable movement.
20 m cable length
M12 straight socket
5-pole A-coded connection
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
FKM sealing
Drag-chain suitable
More than 5 million bending cycles
Industrial sensors
Machine tools
Factory automation
Production equipment
Conveyor systems
Sensor networks
Automation systems
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOGH050MSS0020H05 |
| Cable Length | 20 m |
| Connector | M12 socket |
| Design | Straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Ø 4.6 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 696.5 g |
| Pack Quantity | 1 pc |
