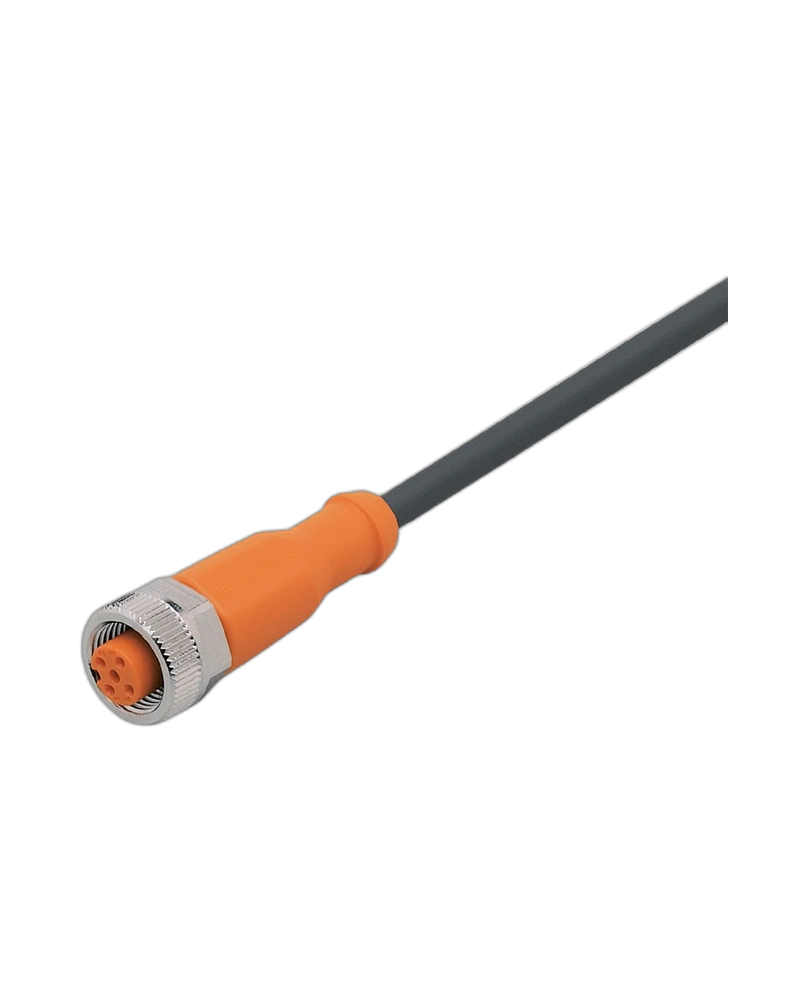

EVC197 is a 15 m M12 connecting cable with a straight 5-pole socket for industrial automation applications. It combines gold-plated contacts with a halogen-free PUR cable for dependable connectivity. High IP protection supports operation in harsh industrial environments. Its drag-chain suitability makes it suitable for repeated cable movement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 15 m cable provides additional routing distance between sensors and automation equipment. The straight M12 socket supports simple installation. Five contacts provide multiple signal connections. Gold-plated contacts help maintain reliable electrical performance.
The cable uses black PUR with 5 × 0.34 mm² conductors. It is halogen-free and silicone-free. TPU housing provides mechanical durability. FKM sealing supports reliable environmental protection.
EVC197 is suitable for machine tools and factory automation. It is resistant to oils, coolants and lubricants. IP65, IP67, IP68 and IP69K protection supports harsh industrial environments. The connector provides dependable sealing during operation.
The cable is suitable for drag-chain applications. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. Travel speed can reach up to 3.3 m/s under specified conditions.
15 m cable length
M12 straight socket
5-pole A-coded connection
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
FKM sealing
Drag-chain suitable
More than 5 million bending cycles
Industrial sensors
Machine tools
Factory automation
Production machinery
Conveyor systems
Control equipment
Sensor networks
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOGH050MSS0015H05 |
| Cable Length | 15 m |
| Connector | M12 socket |
| Design | Straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 492.8 g |
| Pack Quantity | 1 pc |
