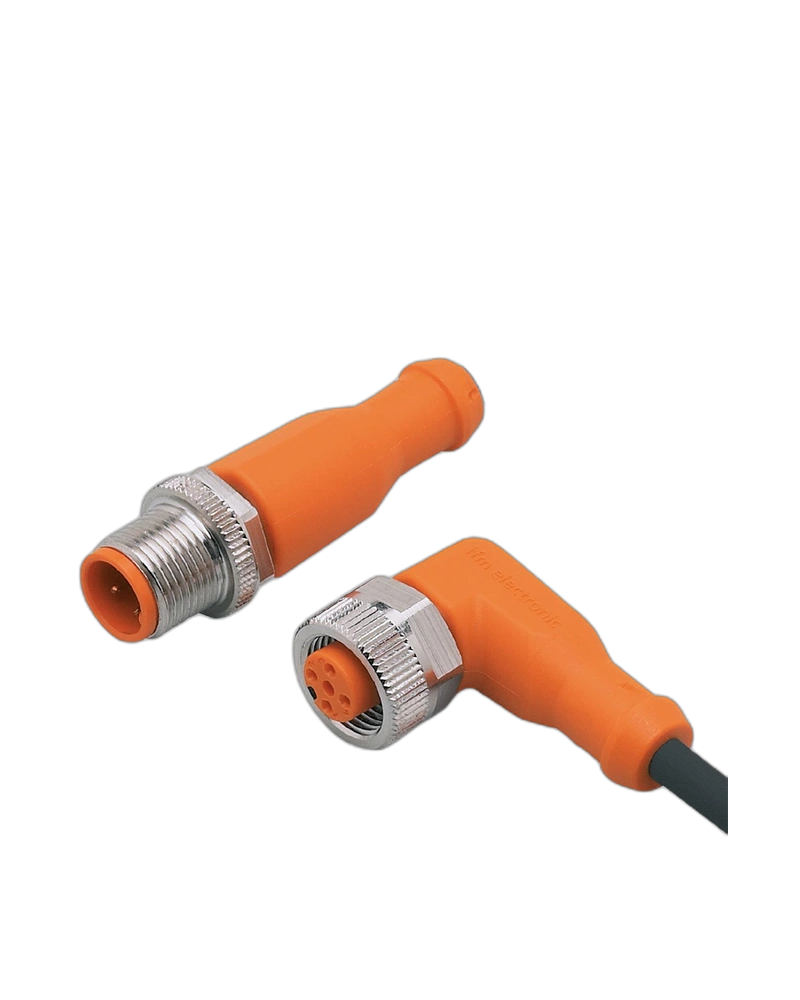

EVC195 is a 25 m M12 connection cable designed for extended industrial automation and machine installations. It features a 5-pole plug-to-socket configuration with gold-plated contacts and halogen-free PUR cable. The cable provides reliable electrical and mechanical performance in demanding environments. Its drag-chain suitability supports dynamic machinery applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 25 m cable provides long-distance connectivity between sensors, actuators and automation equipment. The M12 interface provides standardized industrial connection technology. Five contacts support multiple signal connections. The configuration provides flexible routing around machinery.
The cable uses black PUR with 5 × 0.34 mm² conductors. Its halogen-free construction is suitable for industrial installations. TPU housing and FKM sealing provide mechanical and environmental protection. Nickel-plated brass locking components provide secure connections.
EVC195 supports IP65, IP67, IP68 and IP69K protection. It is suitable for oils, coolants and lubricants. The sealed M12 connection helps protect against contamination and moisture. This makes it suitable for machine tools and production environments.
EVC195 is suitable for drag-chain applications. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This supports long service life in moving industrial equipment.
25 m cable length
M12 plug-to-socket connection
5-pole A-coded design
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Machine tools
Factory sensors
Production machinery
Conveyor systems
Control equipment
Actuator networks
Large automation installations
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH050MSS0025H05STGH050MSS |
| Cable Length | 25 m |
| Connector | M12 plug / M12 socket |
| Configuration | Straight / Angled |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Ø 4.6 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 894 g |
| Pack Quantity | 1 pc |
