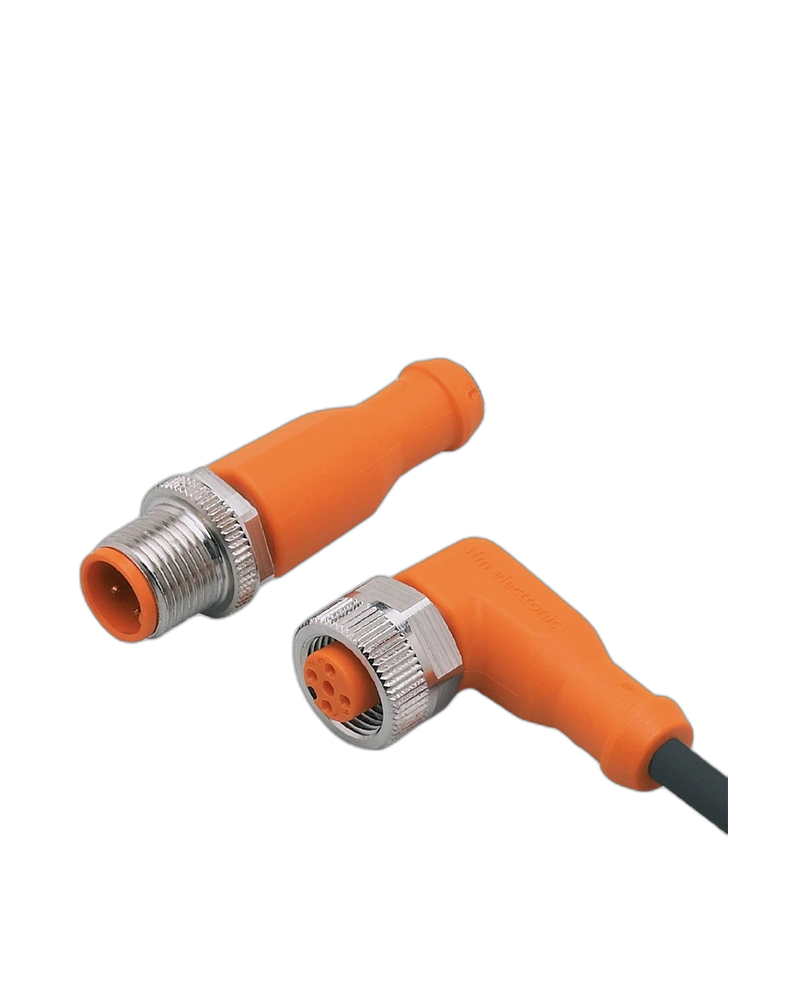

EVC194 is a 15 m M12 connection cable designed for long-distance industrial automation connectivity. It uses a 5-pole M12 plug-to-socket configuration with gold-plated contacts and PUR cable construction. Its high protection rating makes it suitable for demanding industrial environments. Drag-chain compatibility supports repeated movement in automated machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 15 m cable provides extended connection distance between industrial sensors and control equipment. The 5-pole M12 interface supports multiple signal connections. Gold-plated contacts provide stable electrical performance. The angled/straight configuration provides flexible machine routing.
EVC194 uses a black PUR cable with halogen-free construction. The cable is silicone-free and suitable for industrial installations. TPU connector bodies provide mechanical protection. FKM sealing provides reliable environmental resistance.
IP65, IP67, IP68 and IP69K protection helps protect the connection from dust, water and industrial cleaning. The cable is suitable for oils, coolants and lubricants. The sealed M12 connection supports dependable operation. It is suitable for machine tools and factory automation.
The cable supports drag-chain applications and repeated movement. A minimum bending radius of 10 times the cable diameter is specified. More than 5 million bending cycles support long-term dynamic operation. This makes EVC194 suitable for automated machinery.
15 m cable length
M12 plug-to-socket connection
5-pole A-coded design
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Factory automation
Industrial sensors
Machine tools
Production machinery
Conveyor systems
Actuator networks
Control systems
Dynamic automation
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH050MSS0015H05STGH050MSS |
| Cable Length | 15 m |
| Connector | M12 plug / M12 socket |
| Configuration | Angled / Straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Pack Quantity | 1 pc |
