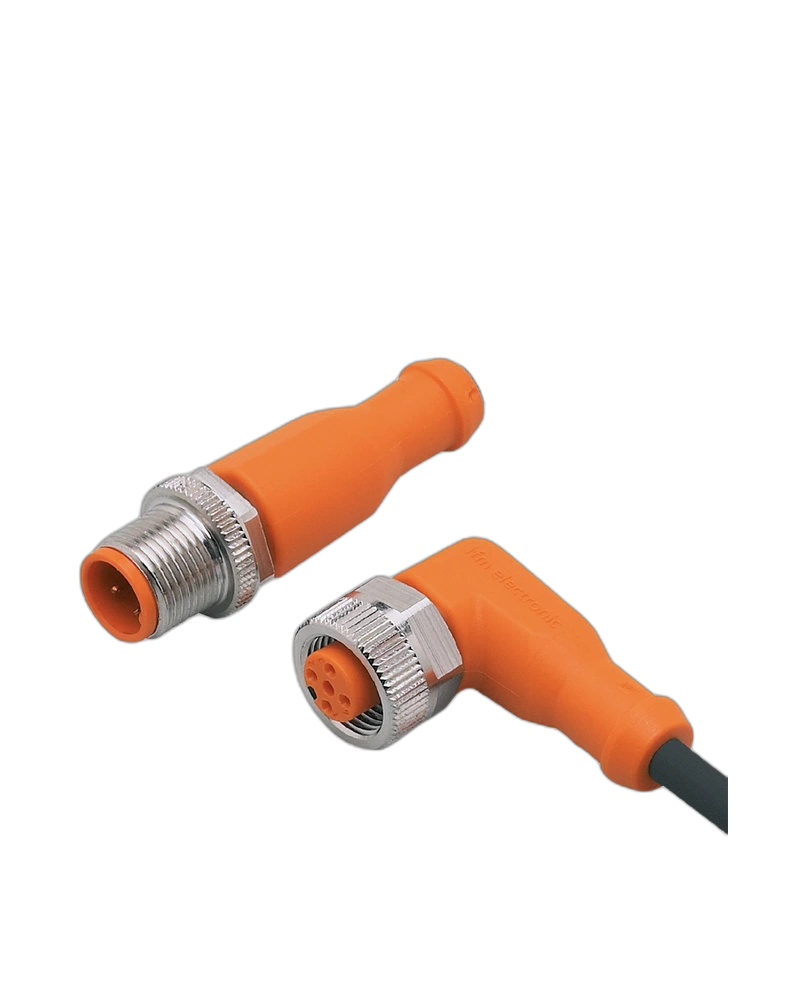

EVC193 is a 10 m M12 connection cable designed for extended industrial sensor and automation connections. It features 5-pole M12 connectivity with gold-plated contacts and a robust PUR cable. The halogen-free and silicone-free construction supports demanding industrial applications. High IP protection and drag-chain suitability provide reliable long-term performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 10 m cable provides extended routing between field devices and automation equipment. The 5-pole M12 interface supports multiple signal connections. Gold-plated contacts provide dependable electrical transmission. The plug-to-socket arrangement simplifies machine-level interconnection.
EVC193 uses black PUR cable with 5 × 0.34 mm² conductors. The halogen-free and silicone-free construction is suitable for industrial environments. TPU connector housing provides mechanical durability. FKM sealing helps protect the connection.
The cable is suitable for machine environments involving oils, coolants and lubricants. IP65, IP67, IP68 and IP69K protection supports harsh operating conditions. The sealed connection helps prevent moisture and contamination. This makes it suitable for machine tools and factory automation.
EVC193 is suitable for drag-chain installations and repeated cable movement. A minimum bending radius of 10 times the cable diameter supports cable longevity. More than 5 million bending cycles are supported. This makes it suitable for moving automation machinery.
10 m cable length
M12 plug-to-socket connection
5-pole A-coded configuration
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
High bending-cycle capability
Industrial automation
Machine tools
Industrial sensors
Actuator systems
Conveyor systems
Production lines
Control equipment
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH050MSS0010H05STGH050MSS |
| Cable Length | 10 m |
| Connector | M12 plug / M12 socket |
| Configuration | Angled / Straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Pack Quantity | 1 pc |
