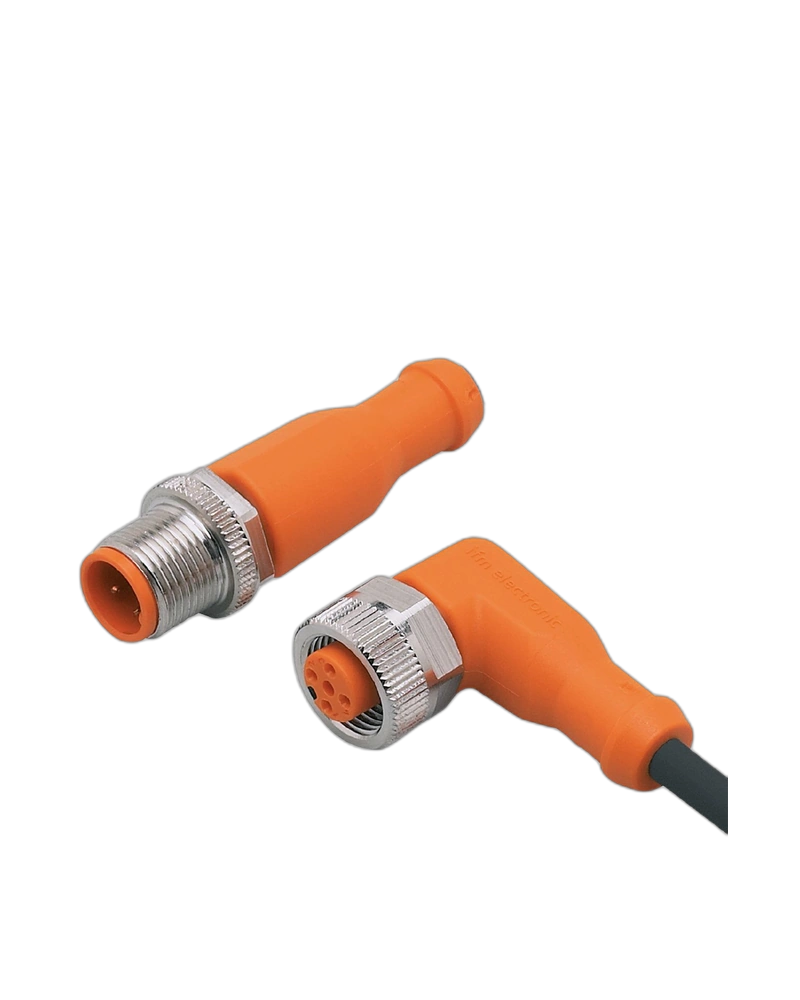

EVC192 is a 3 m M12 connection cable designed for reliable industrial automation and sensor connectivity. It features a 5-pole M12 plug-to-socket configuration with gold-plated contacts and a halogen-free PUR cable. The cable provides high protection against harsh industrial conditions. Its drag-chain suitability makes it suitable for dynamic machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC192 provides a dependable connection between industrial sensors, actuators and automation equipment. The 5-pole M12 configuration supports multiple electrical signals. Gold-plated contacts provide stable electrical performance. The plug-to-socket design simplifies direct equipment interconnection.
The cable uses black PUR with a halogen-free and silicone-free construction. The 5 × 0.34 mm² cable provides reliable industrial connectivity. TPU connector bodies provide mechanical durability. FKM sealing supports dependable environmental protection.
IP65, IP67, IP68 and IP69K protection helps protect the cable against dust, moisture and industrial cleaning conditions. The cable is suitable for oils, coolants and lubricants. The sealed connector construction supports reliable operation in machine tools. This makes it suitable for demanding factory environments.
EVC192 is suitable for drag-chain applications involving repeated cable movement. The minimum bending radius is 10 times the cable diameter. It supports more than 5 million bending cycles. This makes it suitable for automated production machinery.
3 m cable length
M12 plug-to-socket connection
5-pole A-coded configuration
Gold-plated contacts
PUR halogen-free cable
Silicone-free construction
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Industrial sensors
Factory automation
Machine tools
Actuator systems
Conveyor systems
Production machinery
Automation equipment
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH050MSS0003H05STGH050MSS |
| Cable Length | 3 m |
| Connector | M12 plug / M12 socket |
| Configuration | Angled / Straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Operating Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
