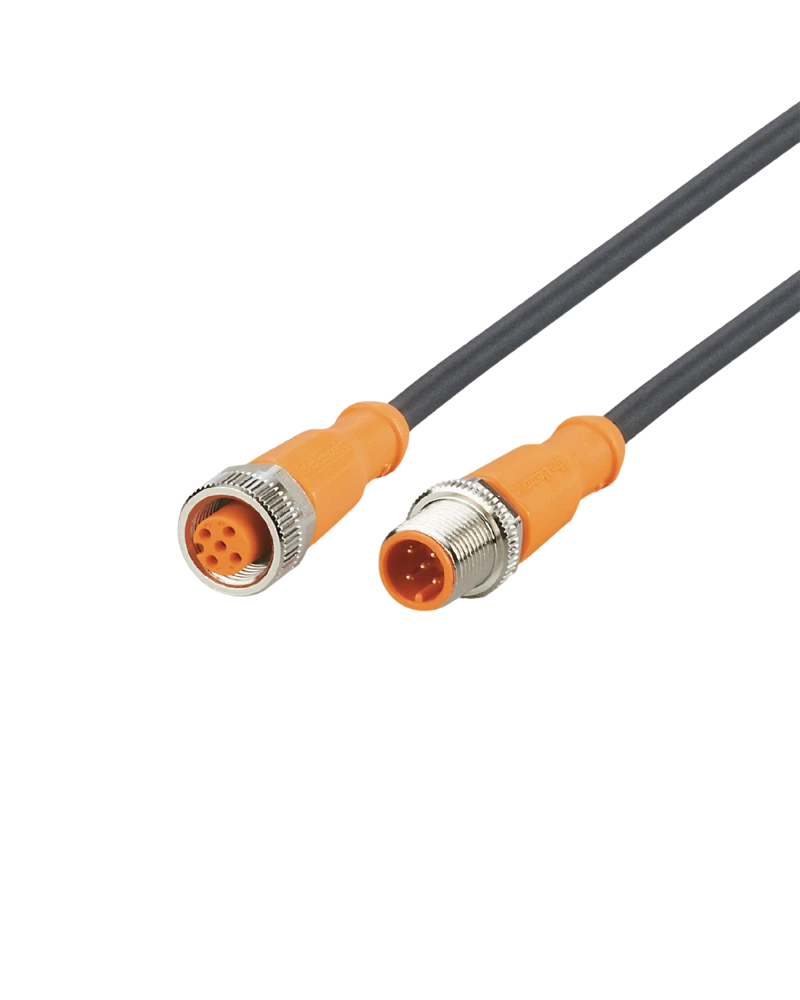

EVC191 is a 25 m M12 5-pole connection cable designed for extended industrial automation and machine installations. It features straight M12 plug and socket connections with gold-plated contacts. The halogen-free PUR cable provides durable and flexible industrial connectivity. High IP protection and drag-chain suitability support demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Industrial Connectivity
EVC191 provides a 25 m cable length for long-distance connections between field devices and automation equipment. Straight M12 connectors provide convenient installation. Five contacts support multi-signal industrial connections. Gold-plated contacts help maintain dependable electrical performance.
Durable PUR Construction
The cable uses black, halogen-free PUR with 5 × 0.34 mm² conductors. TPU connector bodies provide mechanical durability. Nickel-plated brass locking components provide secure connections. FKM sealing supports environmental resistance.
Reliable Electrical Performance
The connection supports below 60 V AC/DC and a 4 A overall current rating. Five-pole connectivity provides additional signal capacity. Gold-plated contacts support stable electrical transmission. The design is suitable for industrial automation systems.
Harsh and Dynamic Applications
EVC191 provides IP65, IP67, IP68 and IP69K protection. It is suitable for oils, coolants and demanding machine environments. Drag-chain suitability supports repeated movement. The cable is designed for more than 5 million bending cycles and a minimum bending radius of 10 times the cable diameter.
25 m cable length
M12 5-pole plug-to-socket connection
Straight / straight configuration
Gold-plated contacts
PUR halogen-free cable
60 V AC/DC operating voltage
4 A current rating
IP65 / IP67 / IP68 / IP69K
FKM sealing
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Factory automation
Industrial sensors
Machine tools
Production lines
Control systems
Actuator networks
Conveyor systems
Large industrial machinery
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOGH050MSS0025H05STGH050MSS |
| Cable Length | 25 m |
| Connector | M12 plug / M12 socket |
| Design | Straight / Straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Colour | Black |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Operating Temperature | -25°C to +90°C |
| cULus Temperature | Max. 75°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
