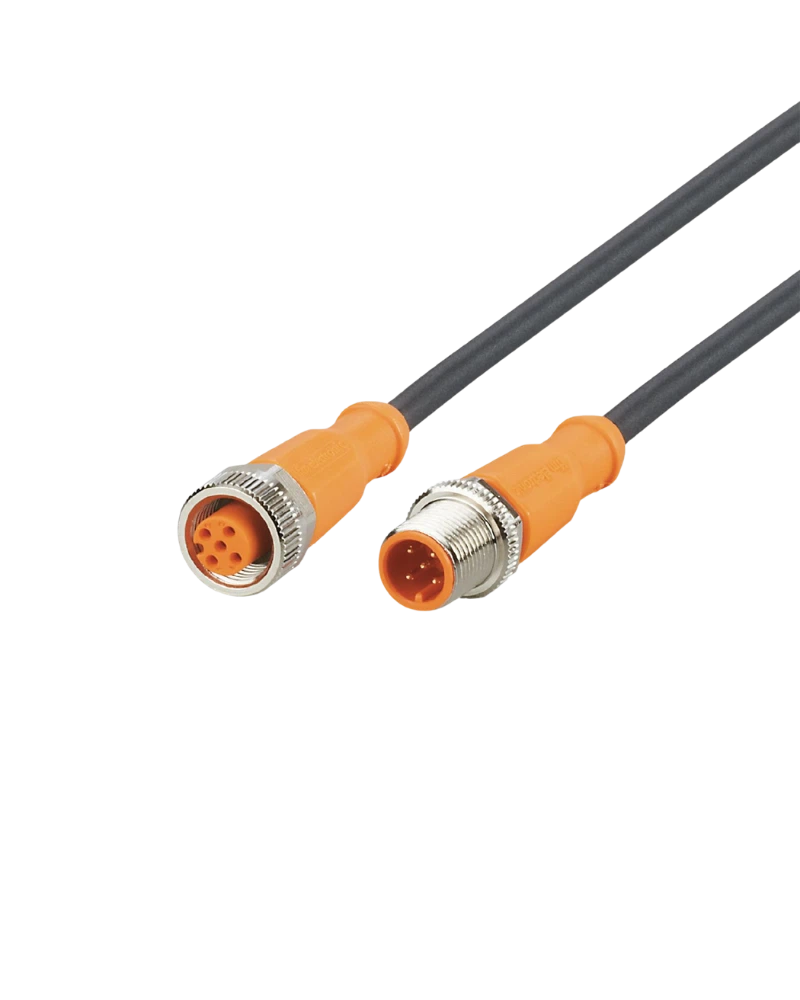

EVC190 is a 15 m M12 5-pole connection cable designed for long-distance industrial automation connections. It features straight M12 plug and socket connections with gold-plated contacts. The PUR halogen-free cable provides durable performance in industrial environments. High IP protection and drag-chain suitability make it suitable for demanding machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Long-Distance Connectivity
EVC190 provides a 15 m connection between industrial sensors, actuators and automation equipment. Straight M12 connectors simplify installation and routing. Five gold-plated contacts support multi-signal applications. It is suitable for large machines and production installations.
Robust PUR Cable
The cable uses black halogen-free PUR material with 5 × 0.34 mm² conductors. TPU connector bodies provide mechanical durability. Brass, nickel-plated locking components provide secure connections. FKM sealing supports reliable environmental protection.
Electrical Reliability
EVC190 supports less than 60 V AC/DC and a 4 A overall current rating. The 5-pole configuration allows multiple signal connections. Gold-plated contacts support reliable electrical transmission. The cable is designed for industrial automation applications.
Dynamic Industrial Performance
The cable is suitable for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. IP65, IP67, IP68 and IP69K protection supports harsh industrial environments.
15 m cable length
M12 5-pole plug-to-socket
Straight / straight configuration
Gold-plated contacts
PUR halogen-free cable
60 V AC/DC operating voltage
4 A current rating
IP65 / IP67 / IP68 / IP69K
FKM sealing
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Machine tools
Factory sensors
Actuator systems
Production machinery
Conveyor equipment
Control systems
Large automation installations
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOGH050MSS0015H05STGH050MSS |
| Cable Length | 15 m |
| Connector | M12 plug / M12 socket |
| Design | Straight / Straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Ø 4.6 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| cULus Temperature | Max. 75°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | 533.5 g |
| Pack Quantity | 1 pc |
