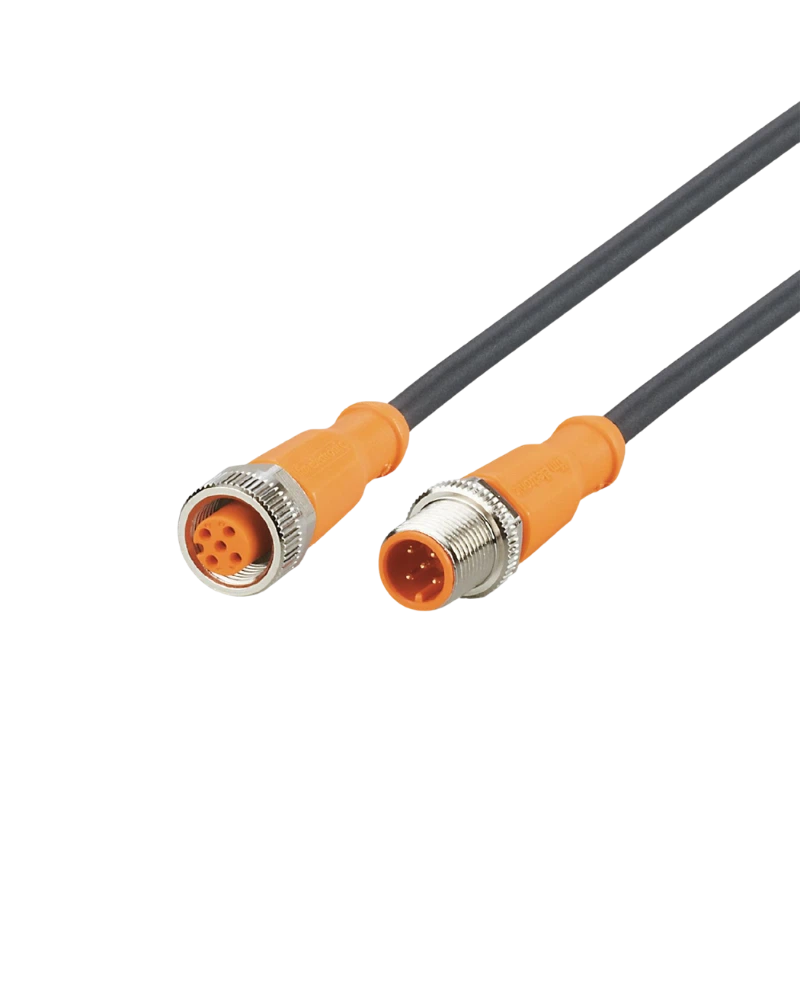

EVC189 is a 10 m M12 5-pole connection cable designed for extended industrial automation connectivity. It uses straight plug and socket connections with gold-plated contacts and a halogen-free PUR cable. The cable supports below 60 V AC/DC and a 4 A current rating. High IP protection and drag-chain suitability support demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended M12 Connectivity
The 10 m cable provides extended connection distance between industrial sensors, actuators and control equipment. Straight M12 plug and socket ends simplify installation. Five gold-plated contacts support multi-signal connectivity. The cable is suitable for factory automation systems.
Durable PUR Construction
EVC189 uses black, halogen-free PUR cable with 5 × 0.34 mm² conductors. TPU connector bodies provide mechanical protection. FKM sealing supports environmental resistance. Brass, nickel-plated locking components provide secure connection.
Reliable Electrical Performance
The cable supports less than 60 V AC/DC with a 4 A overall current rating. The 5-pole configuration provides additional signal capability. Gold-plated contacts support reliable electrical transmission. This makes the cable suitable for industrial control and sensor applications.
Harsh and Dynamic Environments
IP65, IP67, IP68 and IP69K protection supports demanding environments. The cable is resistant to oils and coolants. Drag-chain suitability and more than 5 million bending cycles support repeated movement.
10 m cable length
M12 5-pole plug-to-socket
Straight / straight configuration
Gold-plated contacts
PUR halogen-free cable
60 V AC/DC operating voltage
4 A current rating
IP65 / IP67 / IP68 / IP69K
FKM sealing
Oil and coolant resistant
Drag-chain suitable
Factory automation
Industrial sensors
Machine tools
Control systems
Actuator networks
Production machinery
Conveyor systems
Dynamic automation equipment
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOGH050MSS0010H05STGH050MSS |
| Cable Length | 10 m |
| Connector | M12 plug / M12 socket |
| Design | Straight / Straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Ø 4.6 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| cULus Temperature | Max. 75°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | 366.2 g |
| Pack Quantity | 1 pc |
