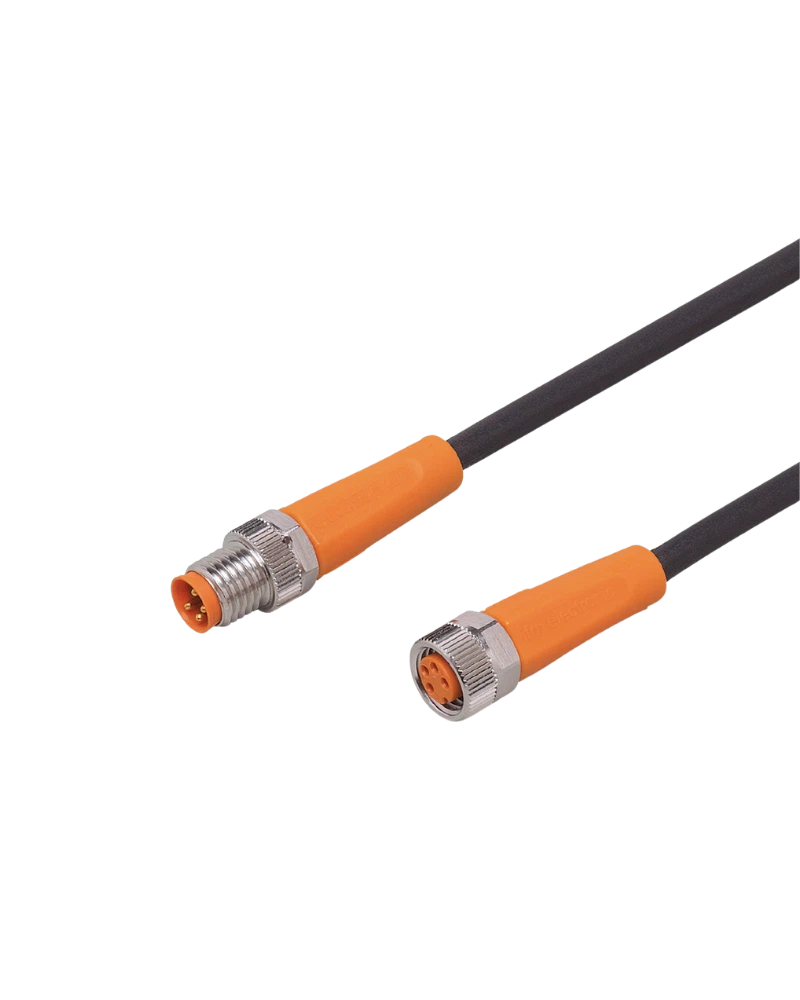

EVC188 is a 3 m M12 connection cable with 5-pole plug-to-socket configuration for industrial automation systems. It features gold-plated contacts, a halogen-free PUR cable and high environmental protection. The cable supports up to 60 V AC/DC and 4 A current load. Drag-chain suitability makes it suitable for dynamic machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
5-Pole M12 Connectivity
EVC188 provides a 5-pole M12 plug-to-socket connection for industrial automation equipment. The straight connector configuration supports simple installation. Gold-plated contacts provide reliable electrical connectivity. It is suitable for sensors, actuators and control equipment.
Industrial PUR Cable
The 3 m cable uses black PUR with 5 × 0.34 mm² conductors. It is halogen-free and silicone-free. TPU connector bodies provide mechanical durability. FKM sealing supports reliable environmental protection.
Electrical Performance
EVC188 supports an operating voltage below 60 V AC/DC with a 4 A current rating. The 5-pole configuration provides additional signal capacity. Gold-plated contacts support dependable electrical transmission. This makes it suitable for industrial automation connections.
Dynamic and Harsh Environment Use
IP65, IP67, IP68 and IP69K protection supports demanding industrial conditions. The cable is suitable for oils and coolants. Drag-chain suitability and more than 5 million bending cycles support moving machinery.
3 m cable length
M12 plug-to-socket connection
5-pole A-coded configuration
Gold-plated contacts
PUR halogen-free cable
Silicone-free
60 V AC/DC operating voltage
4 A current rating
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Sensors and actuators
Machine tools
Factory automation
Control equipment
Production machinery
Conveyor systems
Dynamic automation
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOGH050MSS0003H05STGH050MSS |
| Cable Length | 3 m |
| Connector | M12 plug / M12 socket |
| Design | Straight / Straight |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| cULus Temperature | Max. 75°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | 138.6 g |
| Pack Quantity | 1 pc |
