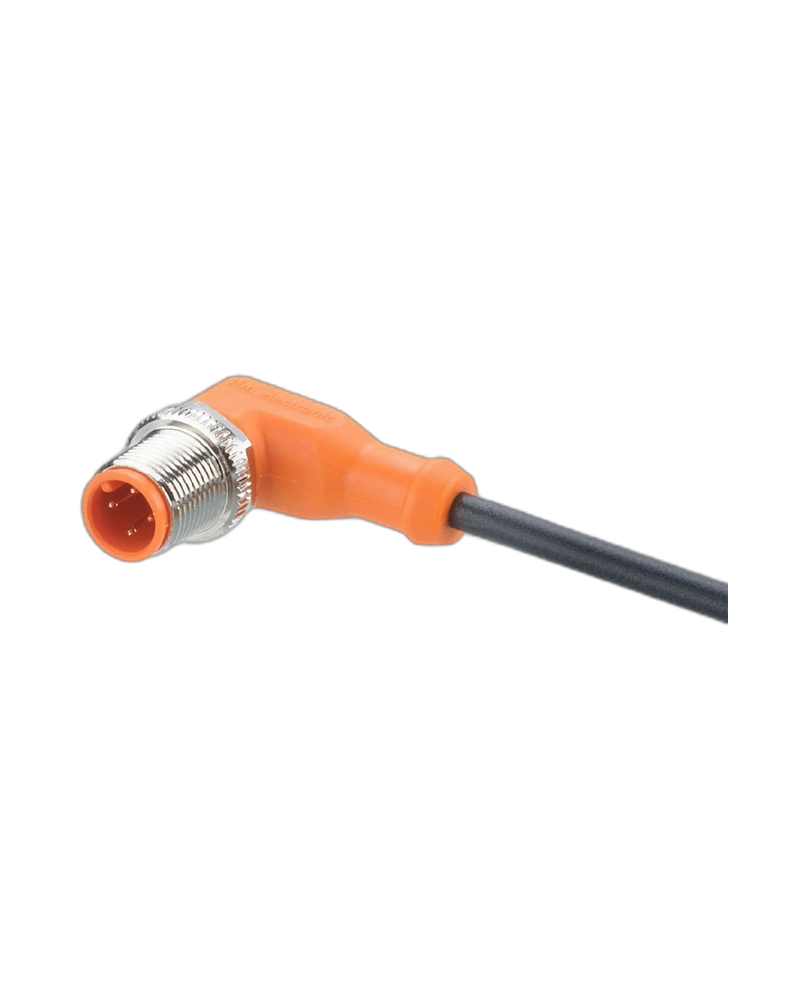

EVC185 is a 15 m M12 connecting cable with an angled 4-pole plug designed for extended industrial automation connections. It uses a halogen-free PUR cable with gold-plated contacts and robust TPU housing. High IP protection provides reliable performance in harsh industrial environments. Drag-chain suitability makes it suitable for dynamic machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended M12 Connectivity
The 15 m cable provides extended routing between sensors and automation equipment. The angled M12 plug supports flexible installation around machinery. Four gold-plated contacts provide reliable signal transmission. It is suitable for industrial automation and machine tools.
Robust Industrial Cable
EVC185 uses a black, halogen-free PUR cable with 4 × 0.34 mm² conductors. TPU housing provides mechanical durability. Brass, nickel-plated locking components provide secure connection. The construction is suitable for demanding industrial environments.
Harsh Environment Resistance
The cable is designed for IP65, IP67, IP68 and IP69K protection. It is suitable for oils, coolants and lubricants commonly used in machine tools. FKM sealing supports dependable environmental protection. This helps maintain reliable operation in harsh environments.
Dynamic Machine Performance
EVC185 is suitable for drag-chain applications. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. Travel speed can reach up to 3.3 m/s under the specified conditions.
15 m cable length
M12 angled plug
4-pole A-coded connection
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
FKM sealing
Drag-chain suitable
More than 5 million bending cycles
Machine tools
Factory automation
Industrial sensors
Production machinery
Conveyor systems
Automation equipment
Robotic machinery
Dynamic installations
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTAH040MSS0015H04 |
| Cable Length | 15 m |
| Connector | M12 plug |
| Design | Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.3 mm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | 496.5 g |
| Pack Quantity | 1 pc |
