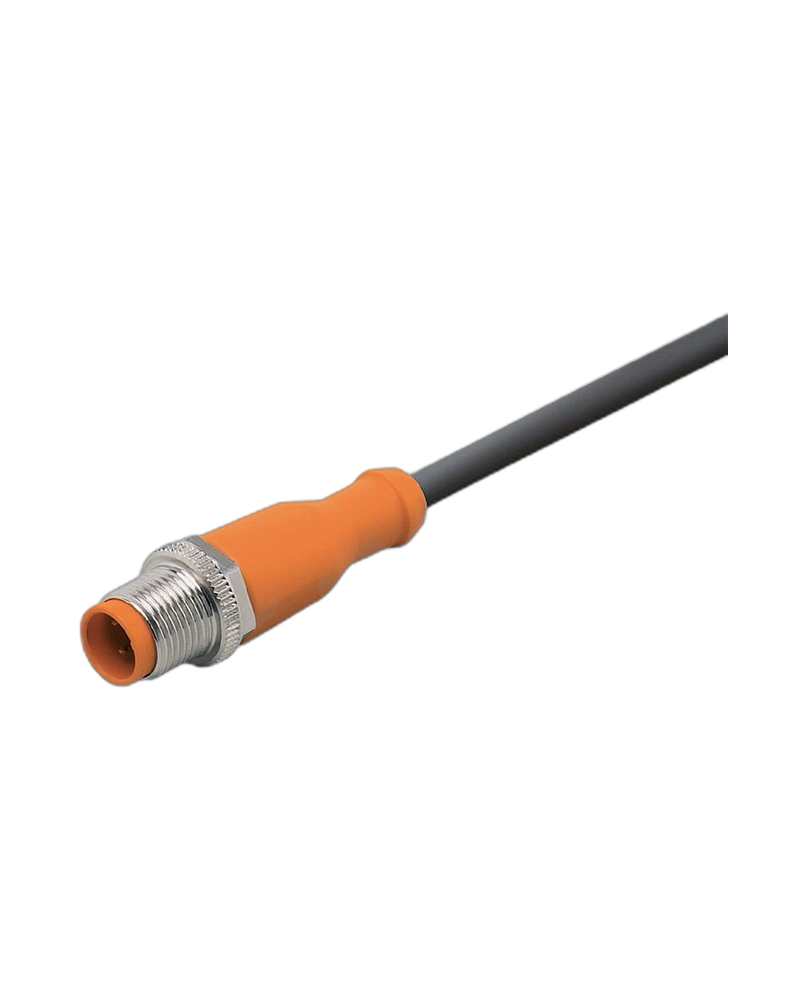

EVC184 is a compact 0.5 m M12 connecting cable with a straight 4-pole plug. It is designed for short-distance connections between industrial sensors and automation equipment. Gold-plated contacts and PUR cable construction provide reliable electrical performance. Its compact length helps simplify cable management inside machines and control panels.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Compact M12 Connection
EVC184 is designed for applications requiring a short cable connection. The straight M12 plug provides easy installation and direct routing. Four contacts support multi-signal industrial applications. Gold-plated contacts improve connection reliability.
Flexible PUR Cable
The cable uses a durable PUR construction suitable for industrial environments. The halogen-free design supports industrial installation requirements. The compact cable length reduces excess cable around equipment. This helps improve machine-level cable management.
Industrial Protection
The connector is designed for high protection against dust, moisture and industrial contamination. FKM sealing supports reliable environmental performance. The cable is suitable for oils and coolants. It can be used around machine tools and production equipment.
Automation Integration
EVC184 is suitable for connecting sensors, actuators and control devices. Its compact form factor is useful in space-constrained installations. The M12 interface allows integration with compatible automation equipment. Its robust construction supports continuous industrial operation.
0.5 m cable length
M12 straight plug
4-pole connection
Gold-plated contacts
PUR halogen-free cable
FKM sealing
IP65 / IP67 / IP68 / IP69K
Compact cable routing
Oil and coolant resistant
Industrial-grade construction
Industrial sensors
Factory automation
Control panels
Machine tools
Actuator connections
Sensor networks
Automation equipment
Compact machine installations
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTGH040MSS00,5H04 |
| Cable Length | 0.5 m |
| Connector | M12 plug |
| Design | Straight |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Colour | Black |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Operating Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Suitable |
| Bending Radius | Min. 10 × cable diameter |
| Pack Quantity | 1 pc |
