EVC183 is a 2 m M12 connecting cable with a straight 2-pole plug for industrial sensor and automation applications. It uses a halogen-free PUR cable with gold-plated contacts. The cable supports reliable operation across demanding industrial environments. High IP protection and drag-chain suitability provide additional durability.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

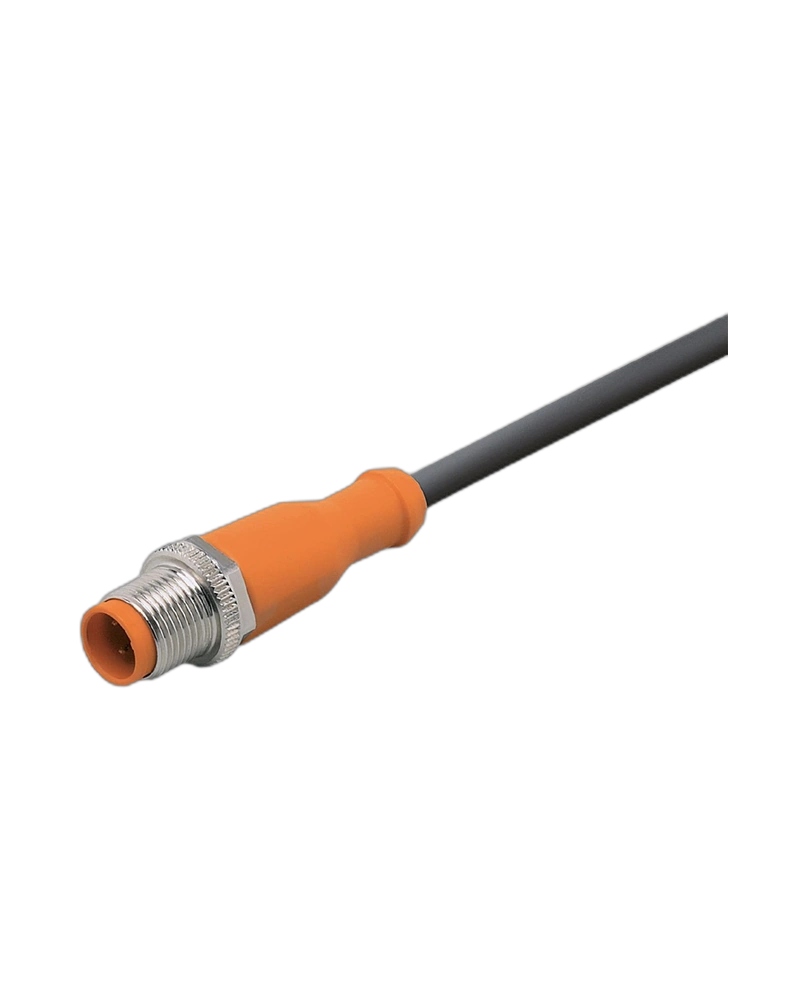

Straight M12 Plug
EVC183 provides a straightforward 2-pole M12 plug connection for compatible industrial devices. The straight connector simplifies installation and cable routing. Gold-plated contacts support stable electrical connectivity. It is suitable for sensor and automation equipment.
Industrial Cable Construction
The 2 m cable uses PUR material with a halogen-free design. The black cable jacket provides a practical industrial finish. TPU connector housing provides mechanical protection. The robust construction supports long-term machine operation.
Reliable Environmental Protection
The cable provides IP65, IP67, IP68 and IP69K protection. It is designed for demanding industrial environments where moisture and contamination may occur. Oil and coolant resistance supports machine-tool applications. FKM sealing helps maintain connection integrity.
Dynamic Application Support
EVC183 is suitable for drag-chain applications. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This makes it suitable for automated machinery with repeated cable movement.
2 m cable length
M12 straight plug
2-pole connection
Gold-plated contacts
PUR halogen-free cable
FKM sealing
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Industrial sensors
Factory automation
Machine tools
Control equipment
Sensor networks
Conveyor systems
Production machinery
Automation equipment
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTGH020MSS0002H02 |
| Cable Length | 2 m |
| Connector | M12 plug |
| Design | Straight |
| Coding | A-coded |
| Contacts | 2, gold-plated |
| Cable Material | PUR |
| Cable Size | 2 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Cable Colour | Black |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Pack Quantity | 1 pc |
