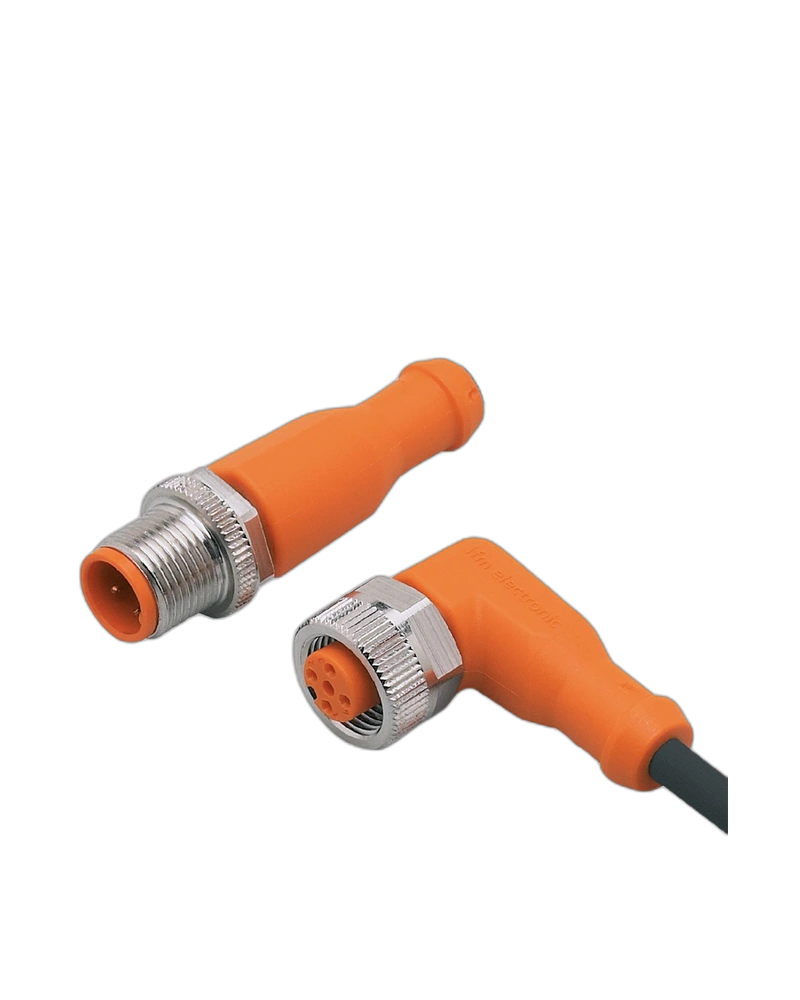

EVC182 is a 2 m M12 connection cable designed for reliable industrial sensor and automation connectivity. It features a 2-pole M12 connection with an angled configuration and durable PUR cable construction. Gold-plated contacts provide dependable electrical performance. High IP protection and drag-chain suitability support demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M12 Connectivity
EVC182 provides a compact 2-pole M12 connection for industrial sensors and automation equipment. The angled configuration helps simplify cable routing around machinery. Gold-plated contacts support reliable electrical transmission. It is suitable for factory automation and machine-level installations.
Durable Cable Construction
The cable uses halogen-free PUR material designed for industrial environments. The robust cable construction provides flexibility and mechanical durability. TPU connector housing protects the connection from mechanical stress. FKM sealing supports reliable environmental protection.
Harsh Environment Protection
The connection is designed for high IP protection against dust and moisture. It is suitable for environments involving oils and coolants. The sealed M12 construction supports reliable operation in machine tools. This makes EVC182 suitable for demanding production environments.
Dynamic Machine Use
The cable is suitable for applications involving repeated cable movement. Drag-chain suitability helps support automated machinery. A minimum bending radius of 10 times the cable diameter helps protect the cable. The construction is suitable for vibration and shock-prone installations.
2 m cable length
M12 2-pole connection
Angled / straight configuration
Gold-plated contacts
PUR halogen-free cable
FKM sealing
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
High bending-cycle capability
Industrial sensors
Factory automation
Machine tools
Automation equipment
Sensor connections
Conveyor systems
Dynamic machinery
Production equipment
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOAH020MSS0002H02STGH020MSS |
| Cable Length | 2 m |
| Connector | M12 |
| Connector Configuration | Angled / Straight |
| Coding | A-coded |
| Contacts | 2 |
| Contact Finish | Gold-plated |
| Cable Material | PUR |
| Cable Construction | 2 × 0.34 mm² |
| Cable Colour | Black |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Operating Temperature | -25°C to +90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Sealing | FKM |
| Locking | Brass, nickel-plated |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
