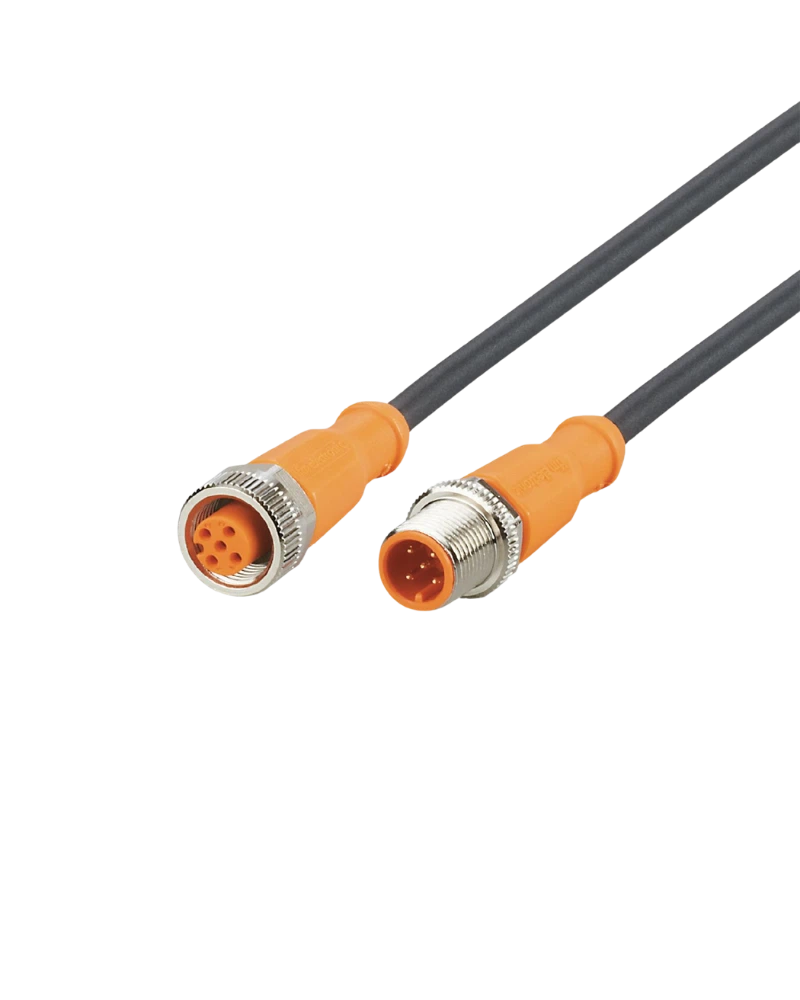

EVC181 is a compact 2 m M12 connection cable designed for reliable 2-pole industrial sensor connectivity. It combines gold-plated contacts with a durable PUR halogen-free cable. High IP protection helps maintain reliable performance in demanding industrial environments. The compact design is suitable for sensors, actuators and automation equipment where short cable routing is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC181 provides a compact 2-pole M12 connection for industrial sensors and automation devices. Its 2 m cable length is suitable for short machine-level connections. Gold-plated contacts support reliable electrical performance. The M12 interface provides standardized industrial connectivity.
The cable uses PUR construction designed for demanding industrial environments. The halogen-free cable supports industrial installation requirements. Robust connector housing and locking components provide secure mechanical connection. The construction is suitable for factory automation.
EVC181 is designed to provide high protection against dust, moisture and industrial contamination. Its sealed connector construction supports reliable operation in harsh environments. The cable is suitable for machine tools and automation equipment. Oil and coolant resistance supports industrial use.
The compact cable length helps simplify cable management around sensors and control equipment. Its durable construction supports vibration and shock encountered during machine operation. The cable is suitable for fixed and dynamic industrial installations. Its M12 interface enables easy integration with compatible equipment.
2 m cable length
M12 2-pole connection
Gold-plated contacts
PUR halogen-free cable
Compact industrial design
High environmental protection
Oil and coolant resistant
Reliable connector sealing
Vibration and shock resistant
Suitable for automation systems
Industrial sensors
Factory automation
Machine tools
Sensor connections
Actuator systems
Conveyor equipment
Production machinery
Automation control systems
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOGH020MSS0002H02STGH020MSS |
| Cable Length | 2 m |
| Connector | M12 |
| Connector Configuration | M12 plug / M12 socket |
| Coding | A-coded |
| Contacts | 2, gold-plated |
| Cable Material | PUR |
| Cable Size | 2 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Sealing | FKM |
| Nut | Brass, nickel-plated |
| Drag Chain | Suitable |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Cable Type | Halogen-free |
| Contact Finish | Gold-plated |
| Pack Quantity | 1 pc |
