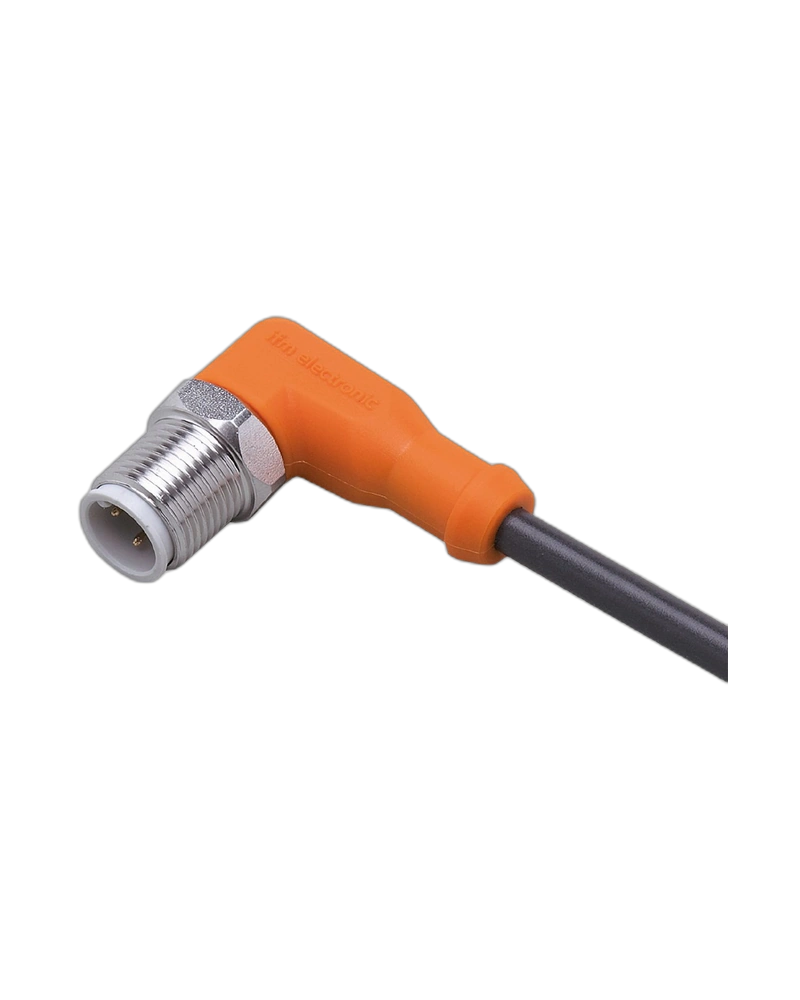

EVC17A is a 10 m M12 connecting cable with an angled plug designed for hazardous-area applications. It features gold-plated contacts, a halogen-free PUR cable and stainless-steel 316L locking components. ATEX and IECEx approvals make it suitable for specified explosive gas and dust environments. High IP protection and resistance to oils and lubricants support demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC17A is designed for applications requiring certified connection technology in potentially explosive environments. It carries ATEX and IECEx approvals for specified gas and dust applications. The certification makes it suitable for specialized process and industrial installations. It provides a reliable connection solution where standard cables may not be appropriate.
The angled M12 plug provides flexible installation around industrial equipment. Gold-plated contacts support reliable electrical connectivity. Stainless-steel 316L locking components provide high mechanical durability. FKM sealing supports dependable environmental protection.
The 10 m PUR cable provides useful routing distance for hazardous-area equipment. The cable contains 4 × 0.34 mm² conductors and has a black outer jacket. Its halogen-free construction supports industrial installation requirements. The angled plug helps simplify cable routing.
EVC17A provides IP67 protection in the hazardous area and IP68/IP69K protection outside the hazardous area. The cable is resistant to oils and lubricants. The operating temperature range is -20°C to +60°C. This supports demanding process-industry applications.
10 m cable length
M12 angled plug
4-pole A-coded connection
Gold-plated contacts
PUR halogen-free cable
Stainless-steel 316L locking
FKM sealing
ATEX certified
IECEx certified
IP67 hazardous-area protection
IP68 / IP69K outside hazardous area
Oil and lubricant resistant
Hazardous-area automation
Oil and gas facilities
Chemical processing
Process industries
Explosion-risk environments
Industrial sensors
Process monitoring
Control and automation systems
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTAH040VAT0010H04/3G/2D |
| Cable Length | 10 m |
| Connector | M12 plug |
| Design | Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 2 A |
| Protection Class | II |
| Temperature | -20°C to +60°C |
| Protection | IP67; IP68/IP69K outside Ex area |
| Housing | TPU, orange |
| Locking Material | Stainless steel 316L / 1.4404 |
| Sealing | FKM |
| Tightening Torque | 1.2–1.5 Nm |
| ATEX Approval | BVS 08 ATEX E 109 U |
| IECEx Approval | BVS 08.0041 U |
| ATEX Marking | II 3G Ex nA IIC Gc; II 2D Ex tb IIIC Db |
| Cable Colour | Black |
| Weight | Approx. 344 g |
| Pack Quantity | 1 pc |
