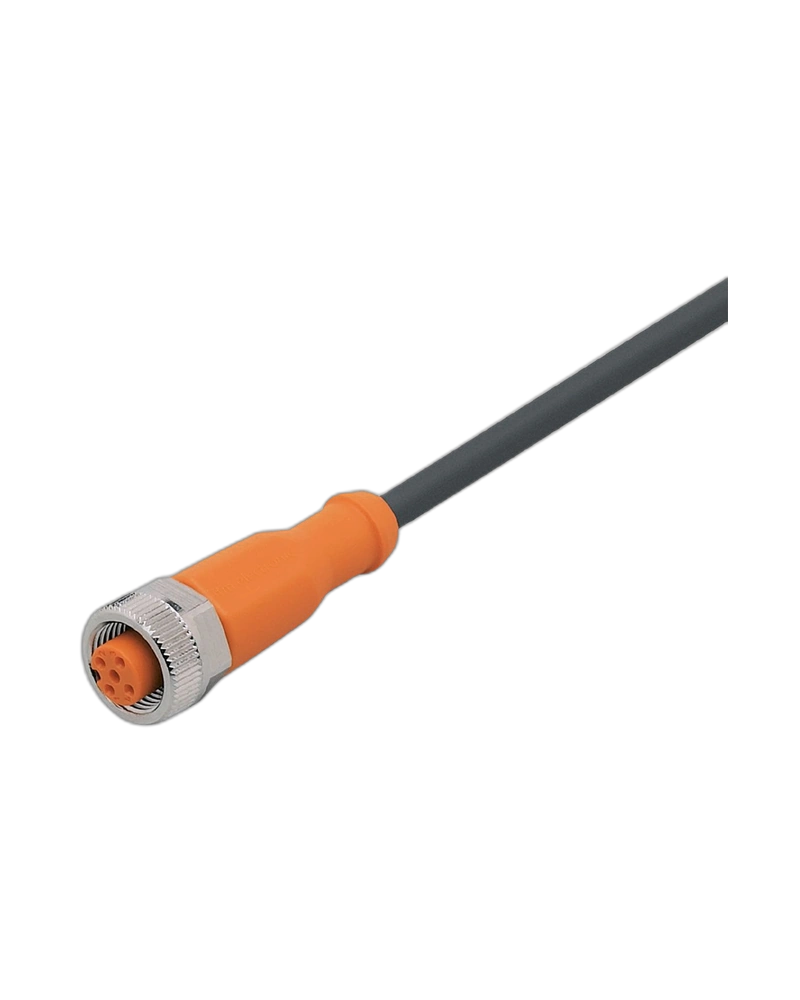

EVC177 is a 20 m M12 connecting cable with a straight plug designed for extended industrial automation connections. It features 4-pole connectivity, gold-plated contacts and a halogen-free PUR cable. High IP65, IP67, IP68 and IP69K protection supports demanding industrial environments. Its long cable length is suitable for large machines and extended field-device connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 20 m cable provides long-distance connectivity between industrial field devices and automation systems. The straight M12 plug supports convenient installation. Four contacts support multi-signal applications. Gold-plated contacts provide dependable electrical conductivity.
EVC177 uses a black, halogen-free PUR cable with 4 × 0.34 mm² conductors. The cable is silicone-free for demanding industrial installations. Its robust construction provides flexibility and mechanical durability. The cable is suitable for machine-level automation.
The cable provides IP65, IP67, IP68 and IP69K protection. This helps protect against dust, water and industrial cleaning processes. The construction is resistant to oils and coolants. This makes EVC177 suitable for harsh factory environments.
EVC177 supports drag-chain applications and repeated cable movement. More than 5 million bending cycles are specified. The minimum bending radius is 10 times the cable diameter. This makes it suitable for moving industrial equipment.
20 m cable length
M12 straight plug
4-pole A-coded connection
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Factory automation
Industrial sensors
Machine tools
Conveyor systems
Production machinery
Control equipment
Robotic systems
Large automation installations
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTGH040MSS0020H04 |
| Cable Length | 20 m |
| Connector | M12 plug |
| Design | Straight |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Sealing | FKM |
| Nut | Brass, nickel-plated |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 650 g |
| Pack Quantity | 1 pc |
