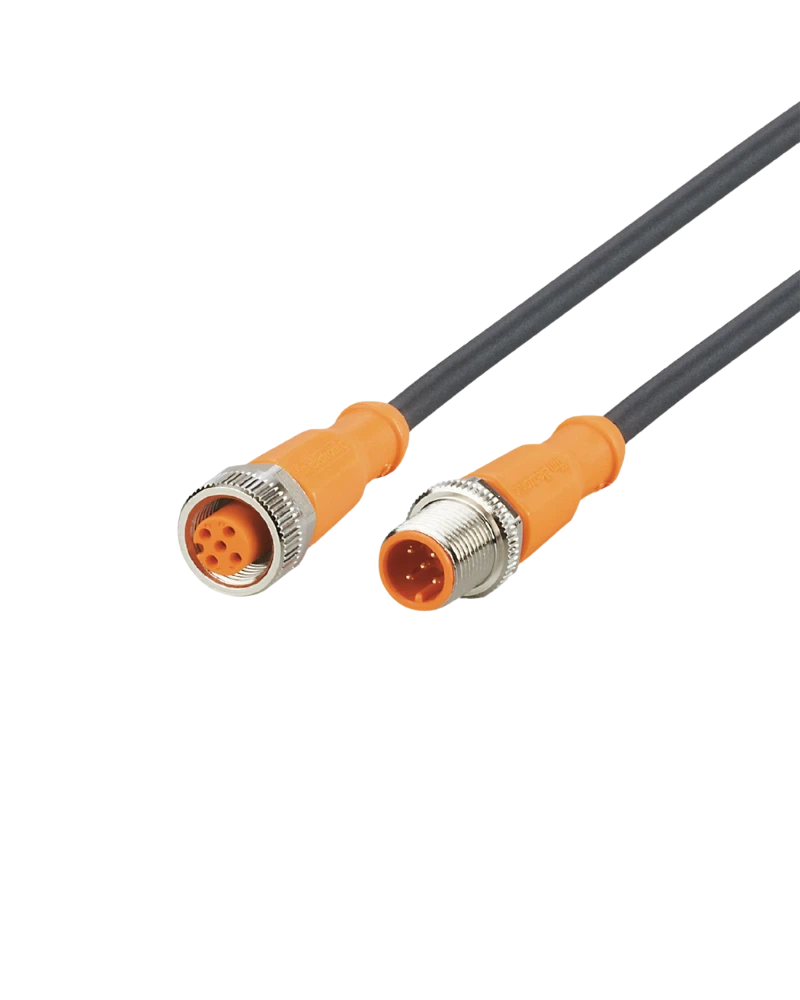

EVC173 is a 1.6 m M12 connection cable designed for reliable industrial sensor connectivity. It uses a 3-pole M12 connection with gold-plated contacts and a halogen-free PUR cable. High IP protection and FKM sealing provide reliable performance in harsh environments. Its drag-chain suitability supports dynamic automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC173 provides a practical 3-pole connection for industrial sensors and automation devices. The 1.6 m cable length is suitable for compact machine layouts. Gold-plated contacts support dependable signal transmission. The M12 interface provides standardized industrial connectivity.
The cable uses 3 × 0.34 mm² black PUR construction. The cable is halogen-free and designed for industrial environments. TPU housing and FKM sealing provide mechanical and environmental protection. Nickel-plated brass locking components provide secure installation.
IP65, IP67, IP68 and IP69K protection helps protect the cable against dust, water and industrial cleaning. The cable is resistant to oils and coolants. The sealed connector design helps maintain electrical reliability. This makes it suitable for machine tools and factory automation.
EVC173 is suitable for drag-chain installations and repeated cable movement. More than 5 million bending cycles are supported. A minimum bending radius of 10 times the cable diameter helps protect the cable. It is suitable for automated machinery.
1.6 m cable length
M12 3-pole connection
Gold-plated contacts
PUR halogen-free cable
FKM sealing
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Vibration and shock resistant
Industrial sensors
Factory automation
Machine tools
Conveyor systems
Sensor networks
Production machinery
Automation equipment
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOGH030MSS01,6H03STGH030MSS |
| Cable Length | 1.6 m |
| Connector | M12 |
| Contacts | 3, gold-plated |
| Coding | A-coded |
| Cable Material | PUR |
| Cable Size | 3 × 0.34 mm² |
| Cable Diameter | Ø 4.3 mm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Sealing | FKM |
| Nut | Brass, nickel-plated |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
