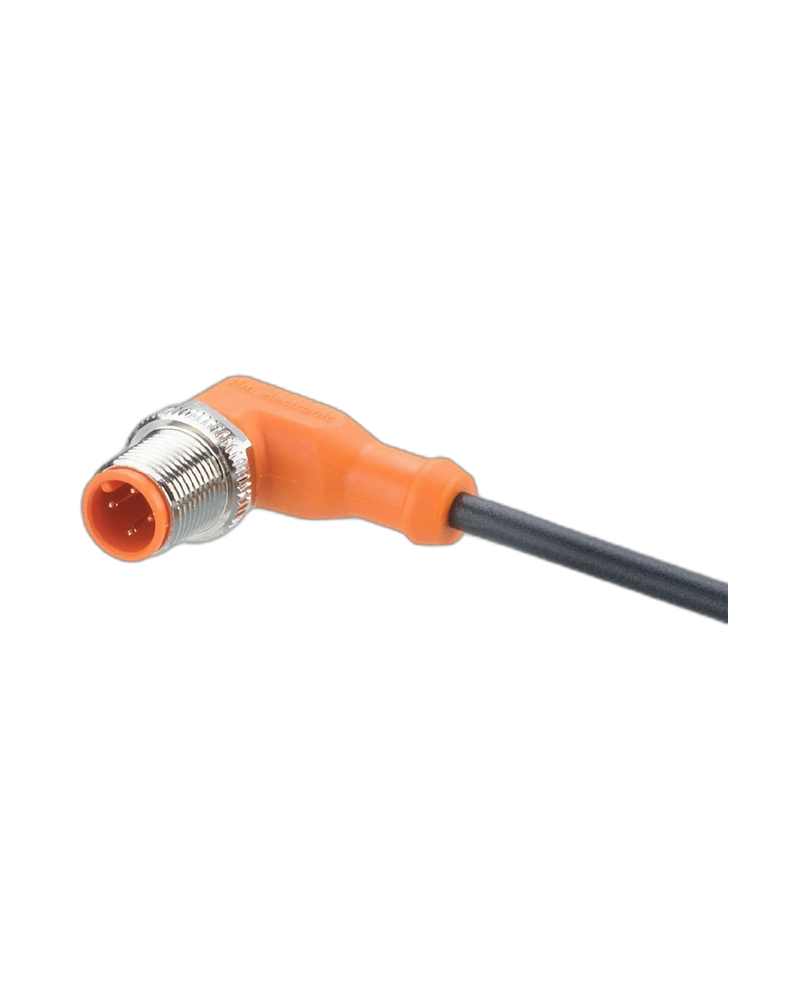

EVC172 is a 20 m M12 connecting cable with an angled plug designed for extended industrial automation connections. It features four gold-plated contacts and a durable PUR halogen-free cable. The cable supports AC/DC applications with a 250 V AC / 300 V DC operating rating. High IP protection and drag-chain suitability make it suitable for demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 20 m cable provides long-distance connectivity between field devices and automation equipment. Its M12 connector provides standardized industrial connectivity. Four conductors support multi-signal applications. The angled connector helps simplify cable routing around machinery.
EVC172 supports AC/DC electrical applications with a 4 A current rating. Gold-plated contacts help provide stable electrical conductivity. The robust connector construction supports secure machine installation. It is suitable for industrial sensors and automation components.
The cable uses a halogen-free PUR construction with a black outer jacket. IP65, IP67, IP68 and IP69K protection supports demanding industrial environments. FKM sealing and TPU housing provide additional environmental durability. The cable is designed for oil and coolant exposure.
EVC172 is suitable for drag-chain applications and repeated cable movement. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This provides reliable performance in automated production equipment.
20 m cable length
M12 angled plug
4-pole connection
Gold-plated contacts
PUR halogen-free cable
250 V AC / 300 V DC
4 A current rating
IP65 / IP67 / IP68 / IP69K
FKM sealing
Drag-chain suitable
More than 5 million bending cycles
Factory automation
Industrial sensors
Machine tools
Process equipment
Conveyor systems
Production lines
Automation control systems
Long-distance machine connections
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTAH040MSS0020H04 |
| Cable Length | 20 m |
| Connector | M12 |
| Design | Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Electrical Design | AC/DC |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Sealing | FKM |
| Nut | Brass, nickel-plated |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 624 g |
| Pack Quantity | 1 pc |
