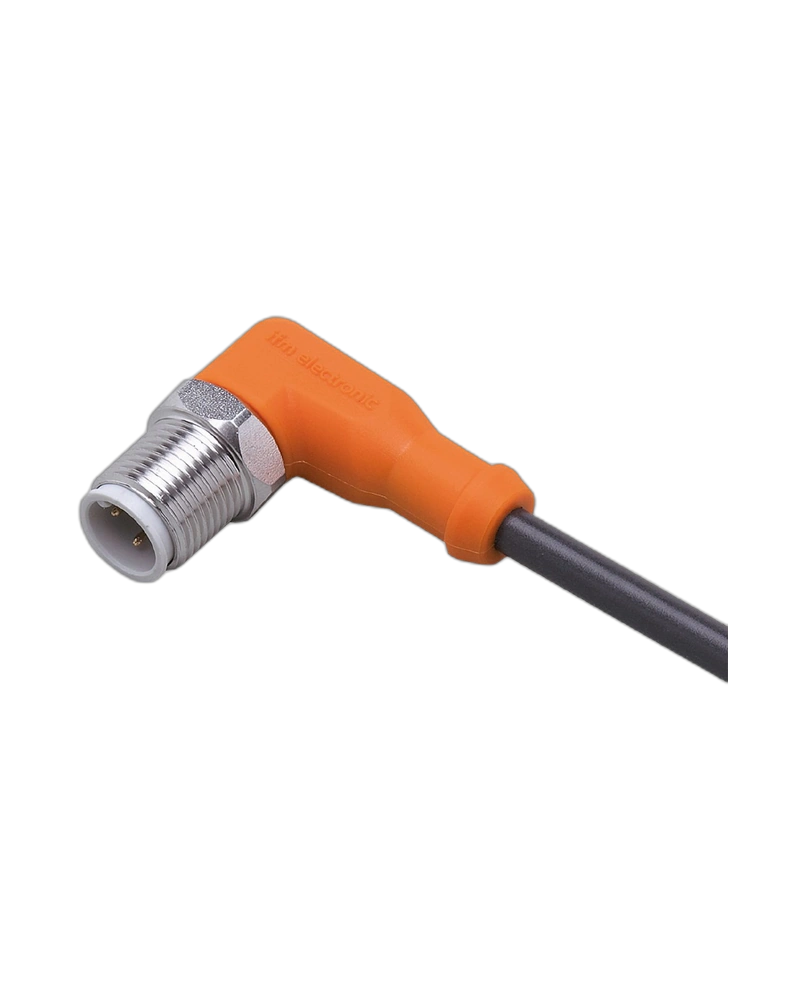

EVC171 is a compact 1.3 m M12 connection cable designed for reliable sensor and actuator connectivity. It combines 4-pole M12 connections with gold-plated contacts and a halogen-free PUR cable. Its high protection rating supports demanding industrial environments. The cable is suitable for dynamic machinery and drag-chain installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC171 provides a ready-to-install M12 connection for industrial sensors and automation equipment. The 1.3 m cable length is suitable for compact machine installations. Four contacts support multi-signal applications. Gold-plated contacts help maintain reliable electrical conductivity.
The cable uses black, halogen-free PUR material with 4 × 0.34 mm² conductors. TPU housing provides mechanical protection and FKM sealing supports environmental resistance. Brass, nickel-plated locking components provide secure connection. The construction is suitable for industrial automation.
EVC171 is resistant to oils and coolants commonly present in machine environments. Its high IP protection helps protect against dust and moisture. The connector provides reliable sealing even in demanding installations. This makes it suitable for machine tools and factory automation.
The cable is suitable for drag-chain applications and repeated movement. More than 5 million bending cycles are supported. The minimum bending radius is 10 times the cable diameter. This helps provide long service life in automated machinery.
1.3 m cable length
M12 4-pole connection
Gold-plated contacts
PUR halogen-free cable
FKM sealing
Oil and coolant resistant
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
More than 5 million bending cycles
Vibration and shock resistant
Industrial sensors
Factory automation
Machine tools
Sensor networks
Actuator connections
Conveyor systems
Production machinery
Dynamic automation equipment
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOAH040MSS01,3H04STGH040MSS |
| Cable Length | 1.3 m |
| Connector | M12 |
| Connector Configuration | Angled / Straight |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.3 mm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Sealing | FKM |
| Nut | Brass, nickel-plated |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | 77.1 g |
| Pack Quantity | 1 pc |
