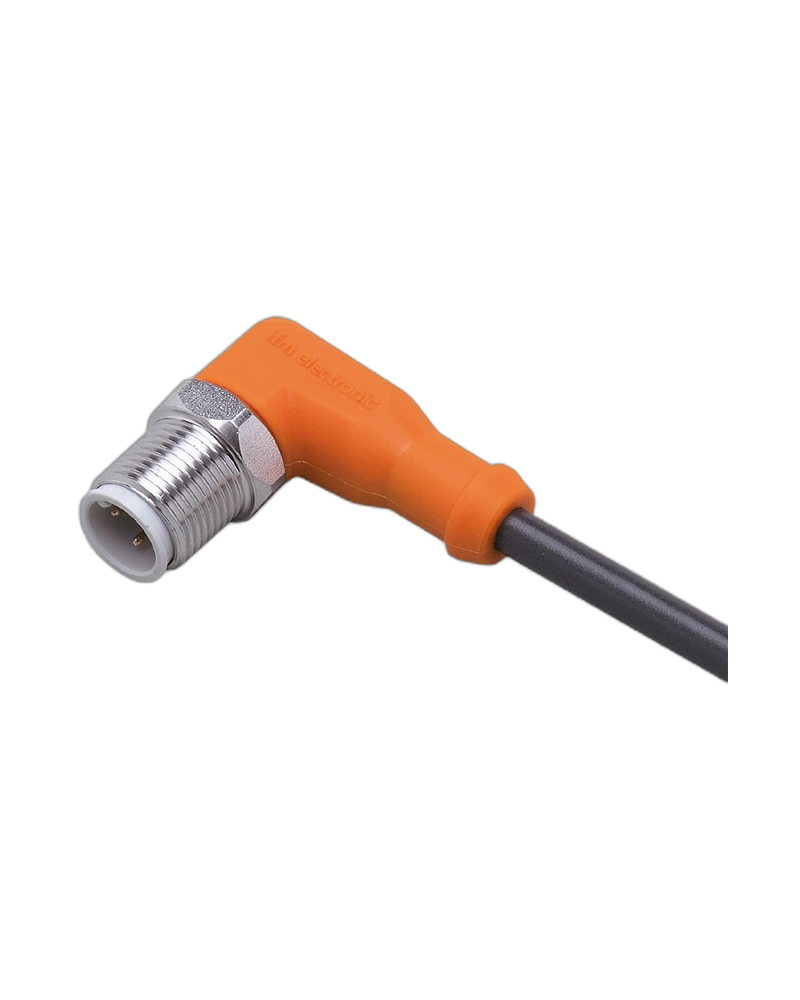

EVC170 is a 4 m M12 connection cable designed for reliable industrial sensor and automation connectivity. It features 4-pole M12 connections, gold-plated contacts and a robust PUR halogen-free cable. High IP protection provides dependable performance in harsh industrial environments. Its drag-chain suitability makes it suitable for dynamic machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC170 provides a dependable connection between industrial sensors, actuators and automation equipment. Its 4-pole M12 configuration supports reliable electrical signal transmission. Gold-plated contacts help maintain stable connectivity during extended operation. The cable is suitable for factory automation and machine-tool applications.
The cable uses a black, halogen-free PUR jacket with 4 × 0.34 mm² conductors. TPU connector housings provide mechanical protection while FKM sealing supports environmental resistance. Nickel-plated brass locking components provide secure connection. The construction is designed for demanding industrial environments.
EVC170 provides IP65, IP67, IP68 and IP69K protection against dust, moisture and industrial cleaning conditions. It is resistant to oils and coolants commonly encountered around machinery. The sealed connector construction helps maintain reliable electrical performance. This makes it suitable for harsh production environments.
The cable is suitable for drag-chain applications involving repeated movement. It supports more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter supports cable durability. The construction also provides resistance to vibration and shock.
4 m cable length
M12 connection technology
4-pole A-coded connection
Gold-plated contacts
PUR halogen-free cable
Oil and coolant resistant
IP65 / IP67 / IP68 / IP69K protection
FKM sealing
Drag-chain suitable
More than 5 million bending cycles
Vibration and shock resistant
Industrial sensors
Factory automation
Machine tools
Actuator systems
Conveyor equipment
Production machinery
Robotic systems
Dynamic automation equipment
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOAH040MSS0004H04STAH040MSS |
| Cable Length | 4 m |
| Connector | M12 |
| Connector Configuration | Angled / Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Electrical Design | AC/DC |
| Protection Class | II |
| Operating Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Sealing | FKM |
| Nut | Brass, nickel-plated |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 144.8 g |
| Pack Quantity | 1 pc |
