EVC16A is a 5 m M12 connecting cable with an angled plug designed for certified hazardous-area applications. It features four gold-plated contacts, a halogen-free PUR cable and stainless-steel locking components. ATEX and IECEx approvals make it suitable for specified explosive gas and dust environments. High IP protection and oil/coolant resistance support demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Hazardous-Area Connectivity
EVC16A is specifically designed for applications in hazardous areas requiring certified connection technology. It carries BVS 08 ATEX E 109 U and IECEx BVS 08.0041 U approvals. The specified ATEX marking covers gas and dust applications. This makes it suitable for specialized industrial process environments.

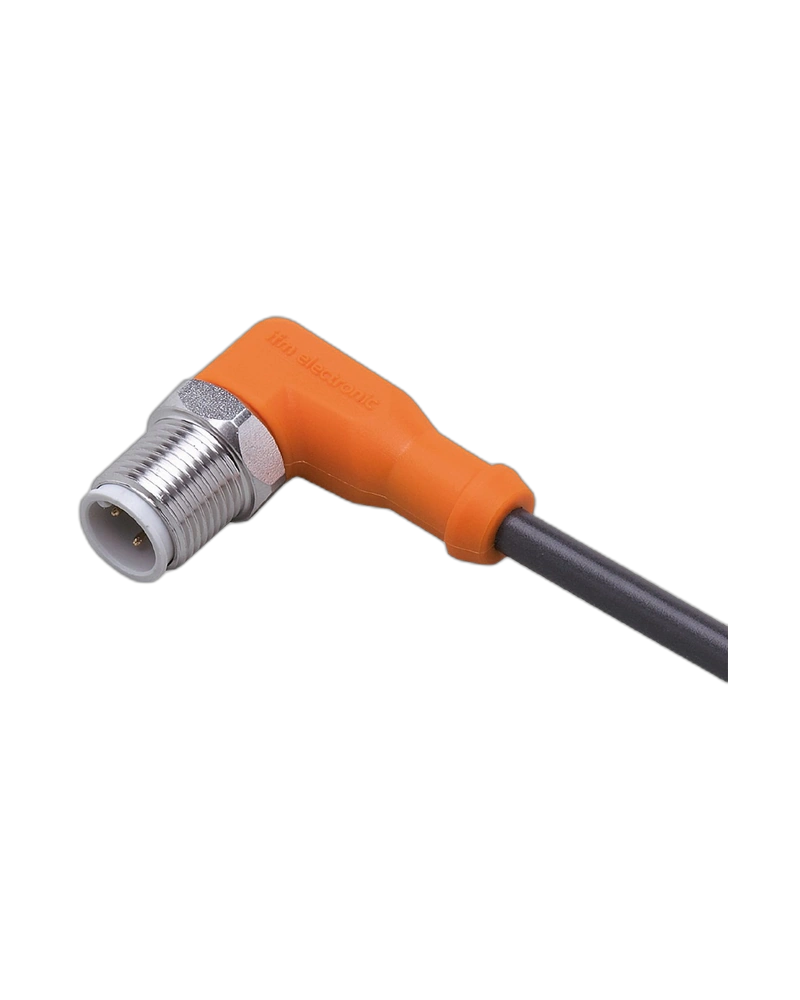

Robust M12 Plug Design
The angled M12 plug provides flexible installation around industrial equipment. Four gold-plated contacts support dependable electrical connection. Stainless-steel 316L / 1.4404 locking components provide high mechanical durability. FKM sealing supports reliable environmental protection.
Long-Distance Connection
The 5 m PUR cable provides practical routing distance for hazardous-area machinery and process equipment. The 4 × 0.34 mm² cable is halogen-free and black. The angled connector helps simplify routing in confined spaces. The construction is suitable for industrial automation.
Harsh Environment Protection
EVC16A provides IP67 protection when used in the specified hazardous area. When used outside the hazardous area, IP68 and IP69K protection are available. The operating temperature range is -20°C to +60°C. The cable is designed to resist oils and coolants.
5 m cable length
Angled M12 plug
4 gold-plated contacts
A-coded connection
PUR halogen-free cable
Silicone-free construction
Stainless-steel 316L locking
FKM sealing
ATEX approved
IECEx approved
IP67 hazardous-area protection
IP68 / IP69K outside hazardous area
Hazardous-area automation
Oil and gas facilities
Chemical processing plants
Process industries
Explosion-risk environments
Industrial sensors
Process monitoring
Automation control systems
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTAH040VAT0005H04/3G/2D |
| Cable Length | 5 m |
| Connector | M12 plug |
| Design | Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | <60 V AC/DC |
| Protection Class | II |
| Operating Temperature | -20°C to +60°C |
| Protection | IP67; IP68 / IP69K outside hazardous area |
| Housing | TPU orange |
| Locking Material | Stainless steel 316L / 1.4404 |
| Sealing | FKM |
| Tightening Torque | 1.2–1.5 Nm |
| ATEX Approval | BVS 08 ATEX E 109 U |
| IECEx Approval | BVS 08.0041 U |
| ATEX Marking | II 3G Ex ec IIC Gc; II 2D Ex tb IIIC Db IP65/IP67 |
| Weight | 198.2 g |
| Pack Quantity | 1 pc |
