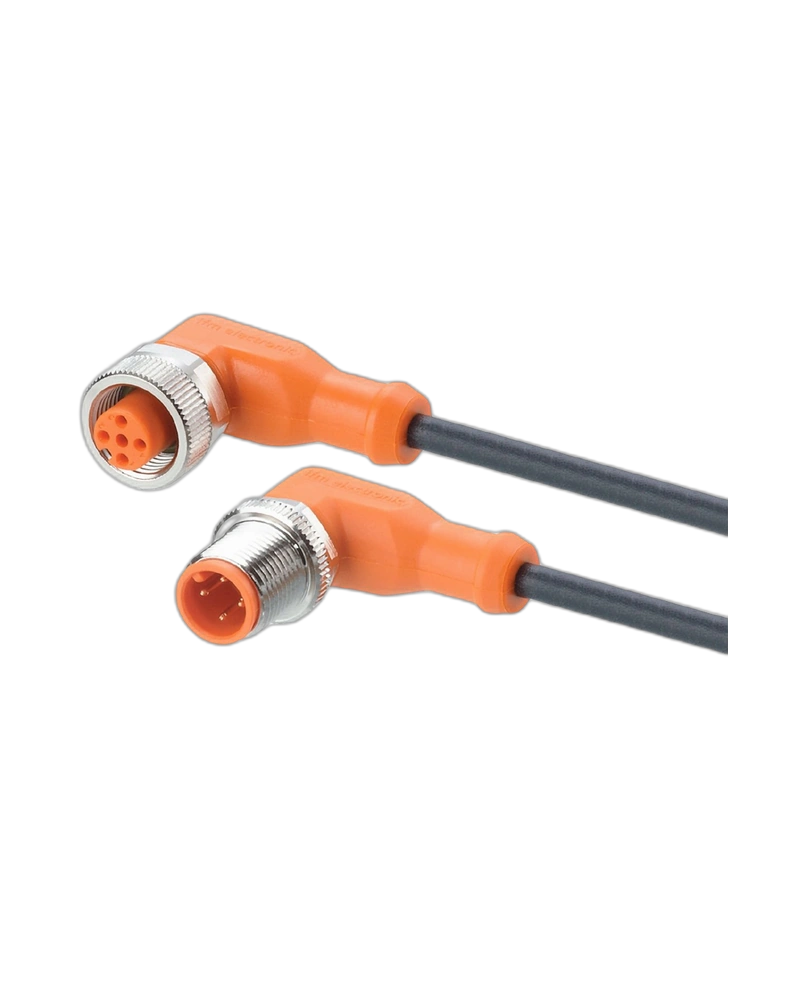

EVC169 is a 3.5 m M12 jumper cable designed for extended industrial automation connections. It provides a 4-pole M12 plug-to-socket connection with gold-plated contacts and a halogen-free PUR cable. High IP protection supports operation in demanding industrial environments. Drag-chain suitability provides reliable performance in applications involving repeated movement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended M12 Connectivity
The 3.5 m cable provides additional routing flexibility between sensors, actuators and control equipment. The 4-pole M12 interface supports multi-signal applications. Gold-plated contacts help maintain reliable electrical connectivity. The cable is ready for industrial installation.
Durable PUR Construction
EVC169 uses a black, halogen-free PUR cable with robust M12 connectors. TPU housing and FKM sealing provide mechanical and environmental protection. Nickel-plated brass locking components provide secure connection. The construction is designed for industrial use.
Environmental Protection
IP65, IP67, IP68 and IP69K protection supports operation in harsh factory environments. The cable is suitable for exposure to oils and coolants. The sealed connector construction helps prevent contamination. This supports long-term connection reliability.
Dynamic Applications
The cable is suitable for drag-chain applications involving repeated movement. It supports more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter supports cable durability. This makes it suitable for automated machinery.
3.5 m cable length
M12 plug-to-socket connection
4-pole A-coded design
Gold-plated contacts
PUR halogen-free cable
Oil and coolant resistant
IP65 / IP67 / IP68 / IP69K
FKM sealing
Drag-chain compatible
High bending-cycle performance
Factory automation
Industrial sensor systems
Machine tools
Actuator systems
Conveyor equipment
Production machinery
Robotic applications
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOAH040MSS03,5H04STAH040MSS |
| Cable Length | 3.5 m |
| Connector | M12 plug / M12 socket |
| Configuration | Angled / Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Electrical Design | AC/DC |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
