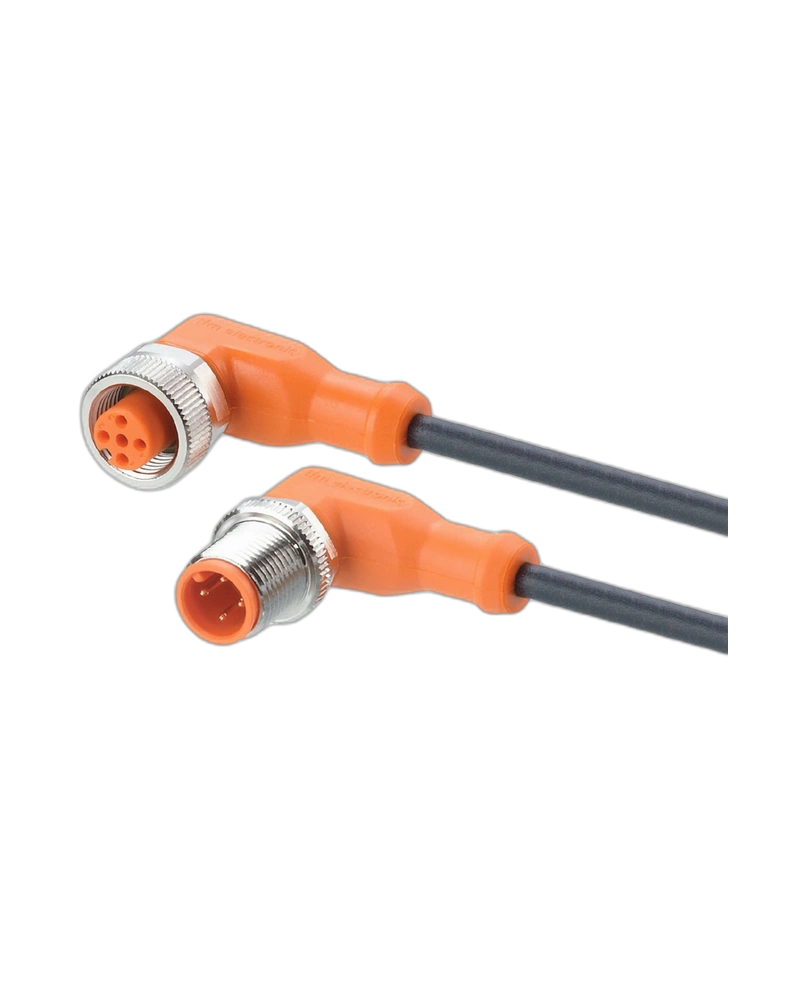

EVC168 is a 2.5 m M12 jumper cable designed for dependable industrial sensor and automation connectivity. It features 4-pole M12 connections, gold-plated contacts and a durable PUR cable. IP65, IP67, IP68 and IP69K protection supports harsh industrial environments. The cable is suitable for drag-chain applications and repeated machine movement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M12 Interconnection
EVC168 provides a ready-made M12 plug-to-socket connection between industrial automation components. Its 2.5 m length provides useful routing flexibility. Four gold-plated contacts support dependable electrical connectivity. The design is suitable for sensors, actuators and automation equipment.
Robust Industrial Cable
The cable uses 4 × 0.34 mm² PUR, halogen-free construction. TPU connector housings provide mechanical protection. Nickel-plated brass locking components support secure connections. FKM sealing helps maintain environmental protection.
Harsh Environment Resistance
IP65, IP67, IP68 and IP69K ratings provide high protection against dust, water and cleaning conditions. The cable is resistant to oils and coolants. The connector construction provides reliable sealing even in demanding installations.
Dynamic Machine Performance
EVC168 is suitable for drag-chain installations. It supports more than 5 million bending cycles and a minimum bending radius of 10 times the cable diameter. This makes it suitable for automated equipment with repeated movement. The design also provides resistance to vibration and shock.
2.5 m cable length
M12 plug-to-socket connection
4-pole A-coded design
Gold-plated contacts
PUR halogen-free cable
Oil and coolant resistant
IP65 / IP67 / IP68 / IP69K
FKM sealing
Drag-chain suitable
Vibration and shock resistant
Factory automation
Industrial sensors
Machine tools
Conveyor systems
Robotic machinery
Production equipment
Dynamic automation
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOAH040MSS02,5H04STAH040MSS |
| Cable Length | 2.5 m |
| Connector | M12 plug / M12 socket |
| Configuration | Angled / Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Electrical Design | AC/DC |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 112 g |
| Pack Quantity | 1 pc |
