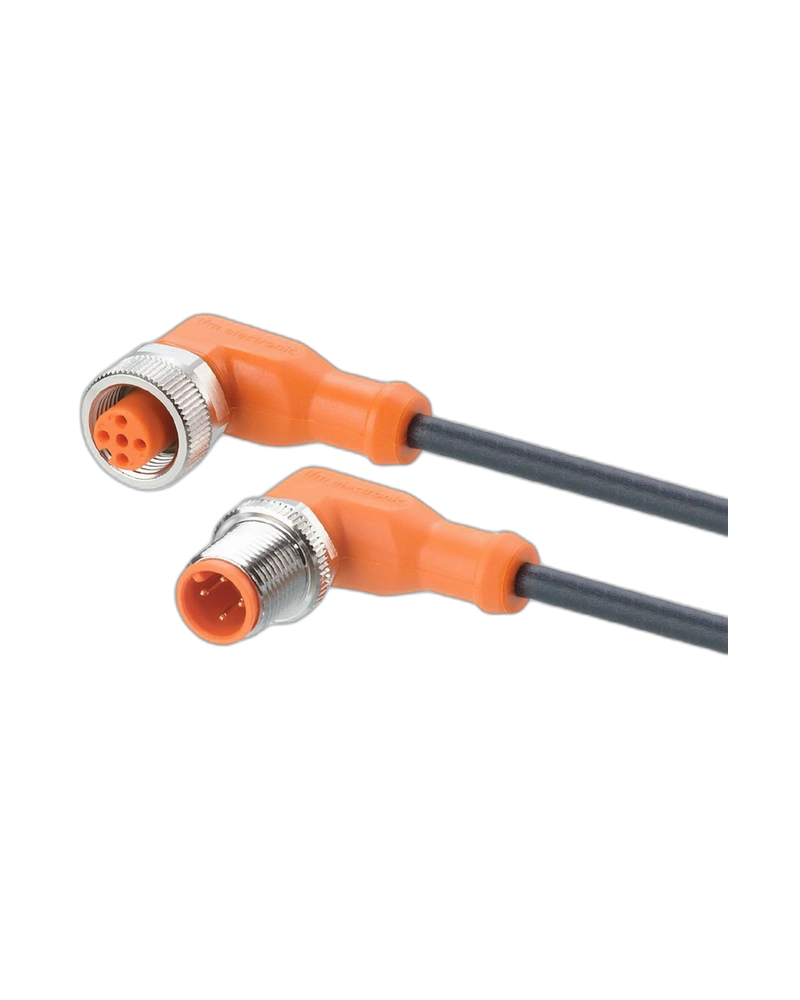

EVC167 is a 1.5 m M12 jumper cable designed for reliable industrial automation connectivity. It combines 4-pole M12 connections with gold-plated contacts and a halogen-free PUR cable. High IP protection and resistance to oils and coolants support demanding industrial applications. Its drag-chain suitability makes it suitable for dynamic machine installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M12 Jumper Connectivity
EVC167 provides a ready-to-install M12 plug-to-socket connection for industrial sensors and automation devices. The 1.5 m length is suitable for compact machine installations. Four contacts provide multi-signal connectivity. Gold-plated contacts support reliable electrical performance.
Industrial Cable Construction
The cable uses black, halogen-free PUR material with 4 × 0.34 mm² conductors. The connector housings use robust TPU material. Nickel-plated brass locking components provide secure connection. FKM sealing supports environmental protection.
High Protection Performance
IP65, IP67, IP68 and IP69K protection helps protect against dust, moisture and cleaning conditions. The cable is suitable for oils and coolants. Its robust connector design helps maintain reliable sealing. This makes it suitable for factory automation.
Dynamic Machine Applications
EVC167 is suitable for drag-chain applications. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This allows reliable use in machinery with repeated cable movement.
1.5 m cable length
M12 plug-to-socket connection
4-pole A-coded design
Gold-plated contacts
PUR halogen-free cable
Oil and coolant resistant
IP65 / IP67 / IP68 / IP69K
FKM sealing
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Machine tools
Sensor and actuator networks
Conveyor systems
Production equipment
Control systems
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOAH040MSS01,5H04STAH040MSS |
| Cable Length | 1.5 m |
| Connector | M12 plug / M12 socket |
| Configuration | Angled / Straight |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | 77.7 g |
| Pack Quantity | 1 pc |
