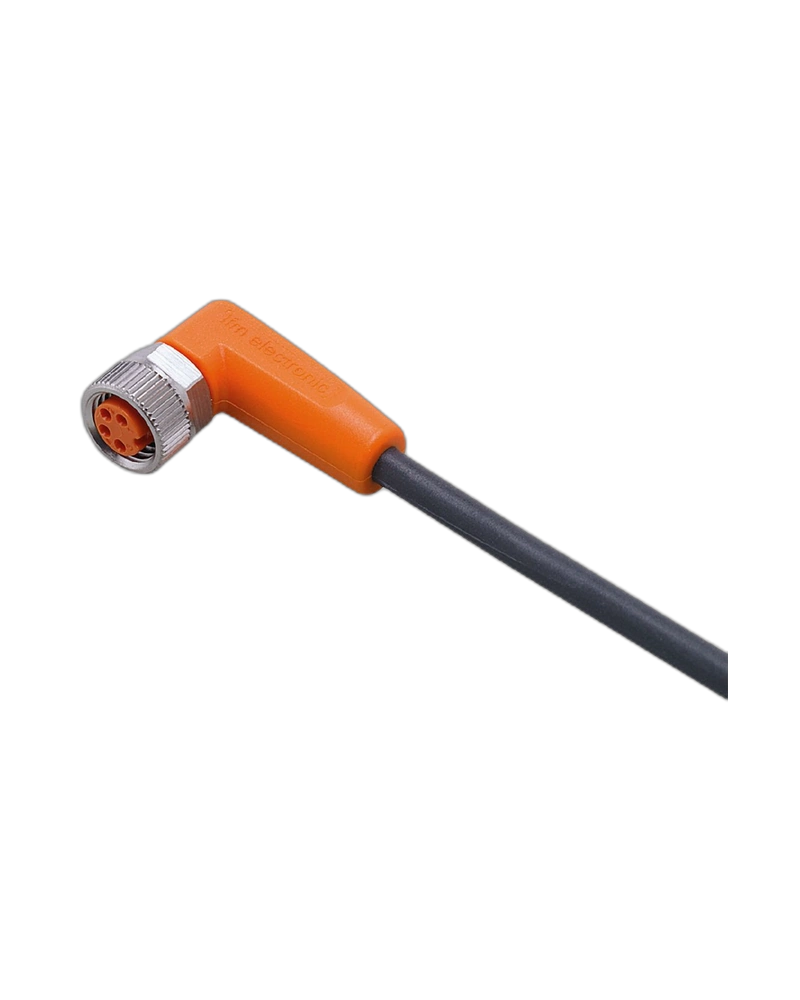

EVC166 is a 10 m M12 connecting cable with an angled 2-pole socket designed for extended industrial sensor connections. Its PUR halogen-free cable and gold-plated contacts provide dependable electrical performance. High IP protection and FKM sealing make it suitable for demanding factory environments. Drag-chain suitability supports repeated movement in automated machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Long-Range Sensor Connectivity
The 10 m cable provides extended reach for sensors installed across larger machines. The angled M12 socket simplifies cable routing in restricted spaces. Gold-plated contacts support reliable electrical conductivity. The 2-pole configuration provides a compact sensor connection.
Robust Industrial Construction
The black PUR cable is halogen-free and silicone-free. TPU housing and FKM sealing protect the connector from industrial conditions. Nickel-plated brass locking components provide secure fastening. The design is intended for demanding automation applications.
Environmental Protection
EVC166 provides IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants. The sealed construction helps protect the electrical connection from moisture and contamination. This makes it suitable for machine tools and factory environments.
Dynamic Operation
The cable is designed for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter is specified. This provides reliable operation in moving automation equipment.
10 m cable length
Angled M12 socket
2-pole connection
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
FKM sealing
Drag-chain suitable
High bending-cycle performance
Industrial sensors
Machine tools
Factory automation
Conveyor systems
Production equipment
Sensor networks
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAH020MSS0010H02 |
| Cable Length | 10 m |
| Connector | M12 socket |
| Design | Angled |
| Coding | A-coded |
| Contacts | 2, gold-plated |
| Cable Material | PUR |
| Cable Size | 2 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | 300.5 g |
| Pack Quantity | 1 pc |
