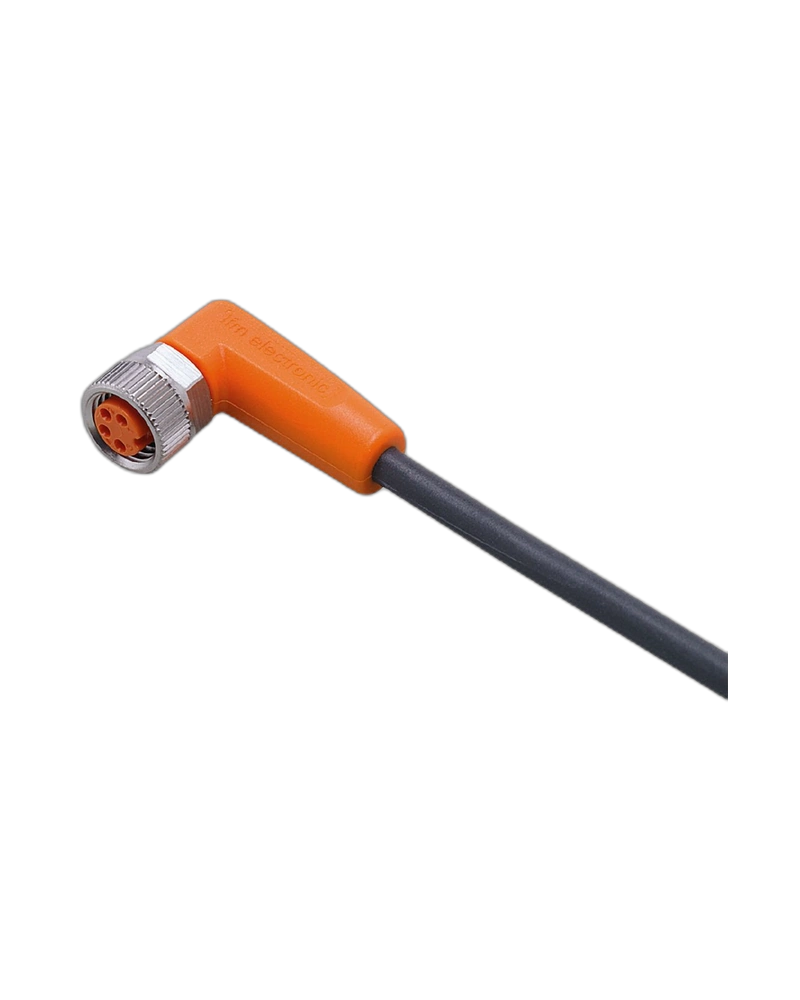

EVC165 is a 5 m M12 connecting cable with an angled 2-pole socket designed for industrial sensor and automation applications. It provides reliable connectivity through gold-plated contacts and a durable PUR cable. High IP protection and FKM sealing support operation in harsh industrial conditions. Drag-chain suitability enables use in machinery with repeated cable movement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Angled Connectivity
The 5 m cable provides additional routing distance while the angled M12 socket simplifies installation. The 2-pole design supports compact sensor connections. Gold-plated contacts provide dependable electrical performance. The cable is suitable for factory automation.
Durable Industrial Materials
EVC165 uses a black, halogen-free PUR cable with 2 × 0.34 mm² conductors. The connector uses TPU housing and FKM sealing. Nickel-plated brass provides reliable locking. These materials support demanding industrial applications.
High Environmental Protection
IP65, IP67, IP68 and IP69K protection helps protect the connection from dust, water and industrial cleaning. The cable is suitable for oil and coolant environments. Its robust sealing helps maintain reliable electrical performance.
Dynamic Cable Movement
EVC165 is suitable for drag-chain applications. It supports more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter is specified. This supports long-term use in moving machinery.
5 m cable length
Angled M12 socket
2-pole connection
Gold-plated contacts
PUR halogen-free cable
FKM sealing
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
Vibration and shock resistant
More than 5 million bending cycles
Industrial sensors
Factory automation
Machine tools
Production machinery
Conveyor systems
Sensor networks
Dynamic automation equipment
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAH020MSS0005H02 |
| Cable Length | 5 m |
| Connector | M12 socket |
| Design | Angled |
| Coding | A-coded |
| Contacts | 2, gold-plated |
| Cable Material | PUR |
| Cable Size | 2 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | 162.1 g |
| Pack Quantity | 1 pc |
