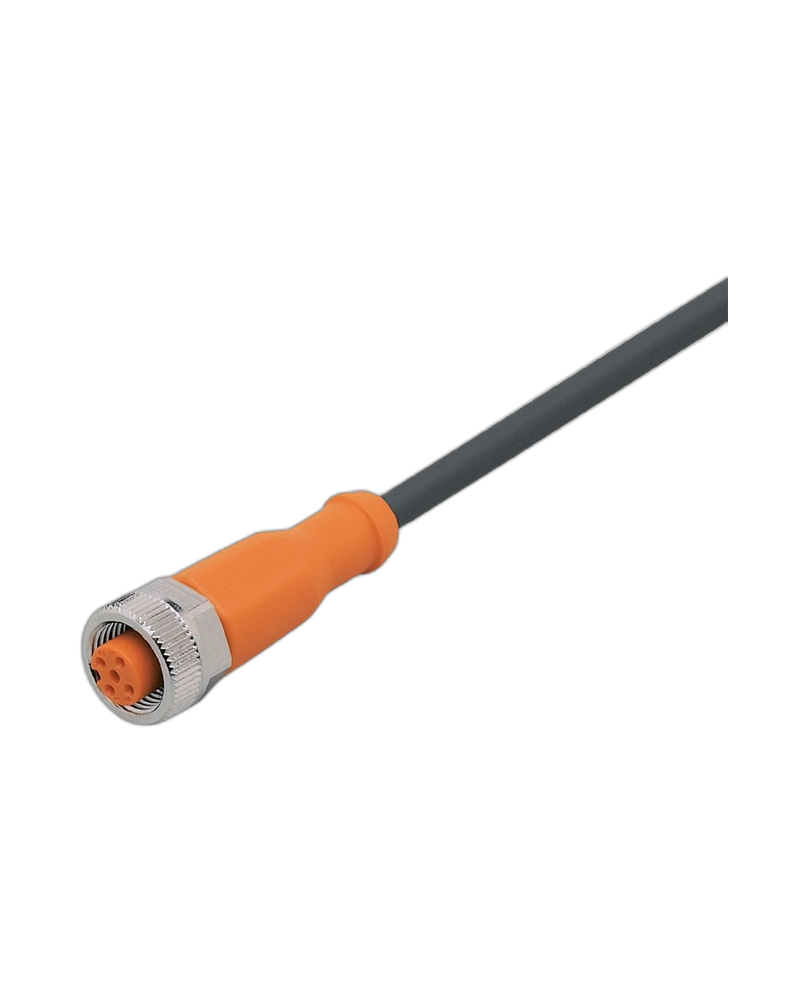

EVC163 is a 10 m M12 connecting cable with a straight 2-pole socket designed for extended industrial sensor connections. It combines gold-plated contacts with a durable, halogen-free PUR cable. High IP protection and oil/coolant resistance make it suitable for harsh industrial environments. Its drag-chain suitability supports dynamic automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Long-Distance Sensor Connectivity
The 10 m cable provides extended routing between field sensors and automation equipment. The straight M12 socket enables straightforward installation. Gold-plated contacts help ensure stable electrical conductivity. The cable is suitable for industrial sensor and control applications.
Reliable Cable Construction
The cable uses black halogen-free PUR with 2 × 0.34 mm² conductors. TPU housing and FKM sealing provide robust environmental protection. Nickel-plated brass locking components provide secure connection. The construction is designed for long-term industrial use.
Protection Against Industrial Conditions
EVC163 provides IP65, IP67, IP68 and IP69K protection. It is suitable for applications involving oils and coolants. The sealed connector helps protect the electrical interface. This makes it suitable for machine tools and factory automation.
Dynamic Operation
The cable supports drag-chain applications and repeated movement. More than 5 million bending cycles are specified. The minimum bending radius is 10 times the cable diameter. This provides durability for automated machinery.
10 m cable length
M12 straight socket
2-pole connection
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
FKM sealing
Drag-chain suitable
High bending-cycle performance
Industrial automation
Machine tools
Sensor connections
Factory production lines
Conveyor systems
Control equipment
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOGH020MSS0010H02 |
| Cable Length | 10 m |
| Connector | M12 socket |
| Design | Straight |
| Coding | A-coded |
| Contacts | 2, gold-plated |
| Cable Material | PUR |
| Cable Size | 2 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
