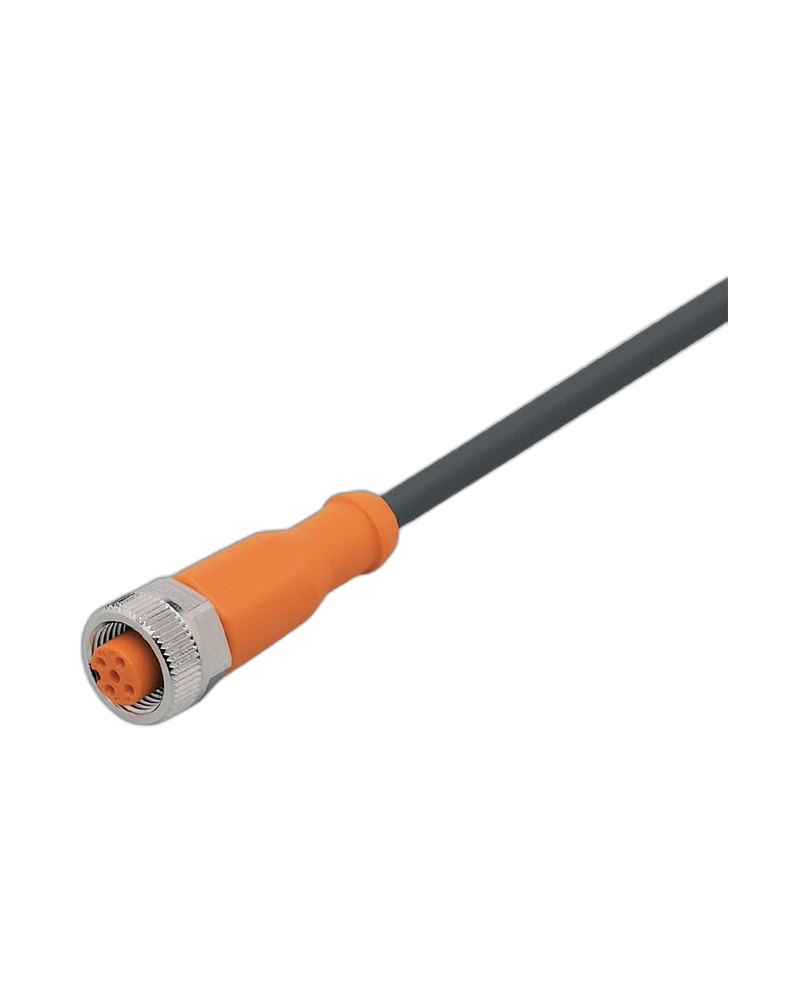

EVC162 is a 5 m M12 connecting cable with a straight 2-pole socket for reliable industrial sensor connections. Its gold-plated contacts and PUR halogen-free cable provide dependable electrical and mechanical performance. The cable offers high IP protection and resistance to oils and coolants. It is also suitable for dynamic and drag-chain installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended M12 Connectivity
The 5 m cable provides additional reach between sensors and industrial control equipment. Its straight M12 socket supports simple installation. The 2-pole design is suitable for applications requiring compact sensor connectivity. Gold-plated contacts help maintain reliable electrical performance.
Industrial-Grade Construction
The black PUR cable is halogen-free and silicone-free. FKM sealing and TPU housing provide environmental and mechanical protection. The nickel-plated brass locking nut provides secure installation. The construction is designed for industrial automation environments.
Harsh Environment Protection
EVC162 is suitable for environments exposed to oils and coolants. Its IP65, IP67, IP68 and IP69K ratings provide high environmental protection. The sealed construction helps prevent moisture and contamination. This makes it suitable for machine tools and production equipment.
Dynamic Cable Routing
The cable is suitable for drag-chain applications. More than 5 million bending cycles are supported. The minimum bending radius is 10 times the cable diameter. This provides reliable performance in machinery involving repeated cable movement.
5 m cable length
M12 straight socket
2-pole A-coded connection
Gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
FKM sealing
Drag-chain suitable
High bending-cycle capability
Industrial sensors
Factory automation
Machine tools
Sensor networks
Conveyor systems
Production equipment
Automation machinery
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOGH020MSS0005H02 |
| Cable Length | 5 m |
| Connector | M12 socket |
| Design | Straight |
| Coding | A-coded |
| Contacts | 2, gold-plated |
| Cable Material | PUR |
| Cable Size | 2 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU, orange |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
