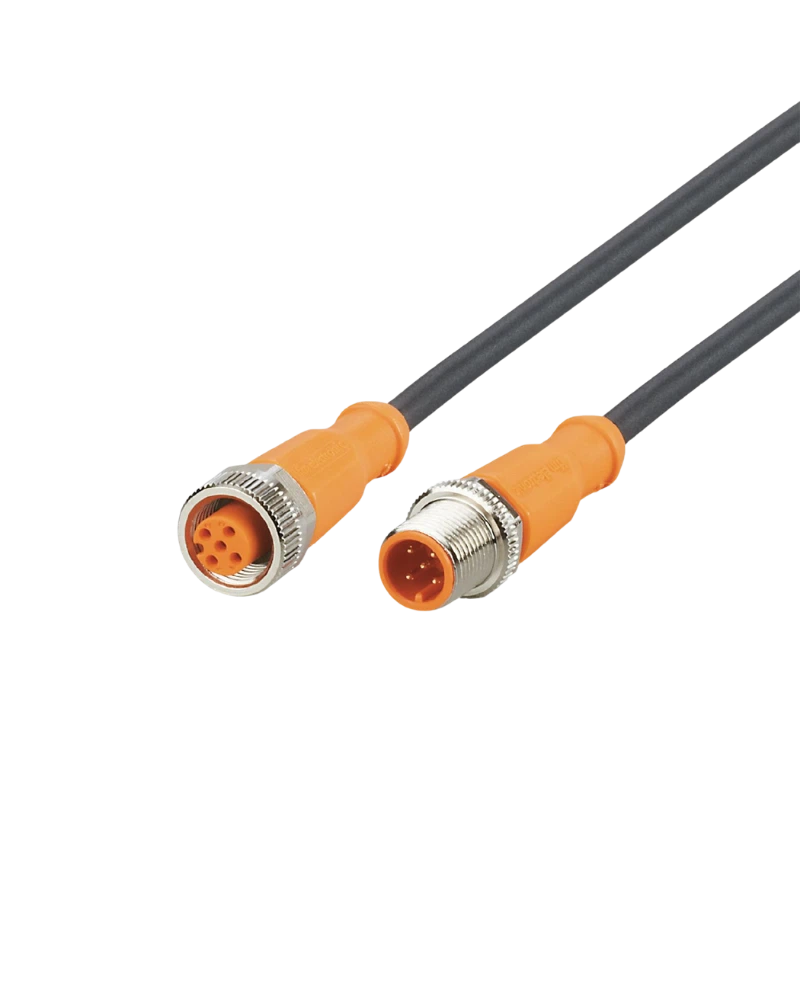

EVC160 is a 30 m M12 jumper cable designed for extended industrial automation connectivity. It features M12 connections, a 4 × 0.34 mm² PUR cable and robust connector construction. High IP protection provides dependable operation in harsh industrial environments. The long cable length makes it suitable for large machines and extended sensor or control-system connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended M12 Connectivity
EVC160 provides a 30 m connection between industrial automation components. The M12 interface provides standardized connectivity for sensors, actuators and control equipment. The extended cable length is useful for larger production installations. The 4-conductor configuration supports multi-signal applications.
Durable PUR Cable
The cable uses a robust PUR construction with 4 × 0.34 mm² conductors. PUR provides flexibility and resistance suitable for industrial environments. The cable is designed for demanding machine applications. Its construction supports reliable long-term operation.
Harsh Environment Protection
EVC160 provides IP65, IP67, IP68 and IP69K protection. The connector design provides reliable sealing against environmental contamination. It is resistant to oils and coolants used in machine-tool environments. This makes it suitable for demanding factory applications.
Reliable Mechanical Performance
The cable uses robust M12 connectors with locking components designed for industrial use. Vibration and shock resistance support reliable machine operation. The connection is suitable for automation systems requiring long cable runs. Its durable construction helps simplify industrial installation.
30 m cable length
M12 connection technology
4 × 0.34 mm² PUR cable
4-pole connection
Gold-plated contacts
Halogen-free cable
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Robust mechanical construction
Suitable for extended machine routing
Factory automation
Machine tools
Industrial sensors
Actuator systems
Production lines
Conveyor systems
Control equipment
Large automation installations
| Specification | Details |
|---|---|
| Product Type | Connection / Jumper Cable |
| Model | VDOGH040MSS0030H04STGH040MSS |
| Cable Length | 30 m |
| Connector | M12 |
| Configuration | Straight / Straight |
| Coding | A-coded |
| Contacts | 4 |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Approx. Ø 4.9 mm |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Electrical Design | AC/DC |
| Protection Class | II |
| Operating Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Nut | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain | Suitable |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 815 g |
| Pack Quantity | 1 pc |
