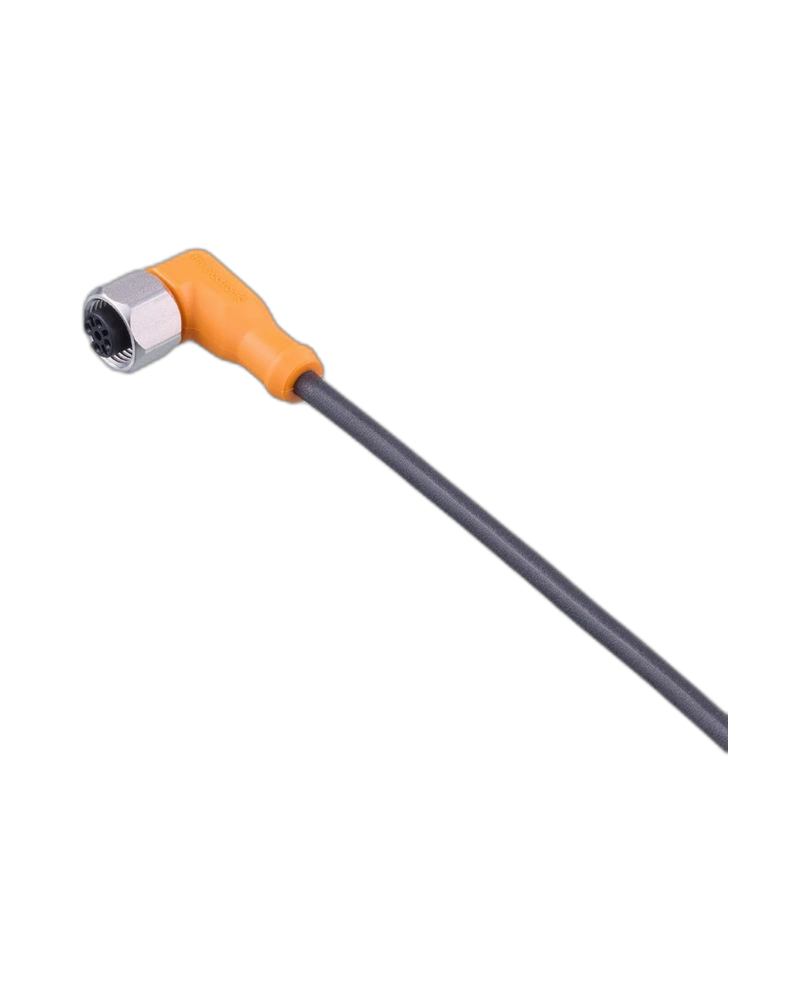

EVC15A is a 40 m M12 connecting cable designed for certified hazardous-area applications. It features an angled 4-pole M12 socket with gold-plated contacts and stainless-steel locking components. ATEX and IECEx approvals make it suitable for specified explosive gas and dust environments. Its long cable length and robust construction support large industrial process installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Hazardous-Area Connectivity
EVC15A is designed for connection applications requiring certified hazardous-area equipment. It carries BVS 08 ATEX E 109 U and IECEx BVS 08.0041 U approvals. The ATEX marking covers specified gas and dust applications. This makes the cable suitable for specialized industrial installations.
Long-Distance Installation
The 40 m cable length provides extended routing capability across large industrial installations. The angled M12 socket helps simplify routing around machinery and process equipment. The PUR cable is halogen-free and black. Four conductors support reliable industrial connectivity.
Robust Connector Construction
The connector uses gold-plated contacts and stainless-steel 316L / 1.4404 locking components. FKM sealing provides reliable environmental protection. TPU housing provides mechanical durability. The locking system is designed for secure industrial installation.
Environmental Protection
EVC15A provides IP67 protection when used in the specified hazardous area. Outside the hazardous area, IP68 and IP69K protection are available. The operating temperature range is -20°C to +60°C. The cable is suitable for demanding industrial environments.
40 m cable length
M12 angled socket
4 gold-plated contacts
A-coded connection
PUR halogen-free cable
Stainless-steel 316L locking
FKM sealing
ATEX approval
IECEx approval
IP67 hazardous-area protection
IP68 / IP69K outside hazardous area
Hazardous-area automation
Oil and gas facilities
Chemical processing
Process industries
Explosion-risk environments
Industrial sensors
Process monitoring
Control systems
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAH040VAT0040H04/3G/2D |
| Cable Length | 40 m |
| Connector | M12 socket |
| Design | Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | <60 V AC/DC |
| Protection Class | II |
| Operating Temperature | -20°C to +60°C |
| Protection | IP67; IP68 / IP69K outside hazardous area |
| Housing | TPU orange |
| Locking Material | Stainless steel 316L / 1.4404 |
| Sealing | FKM |
| Tightening Torque | 1.2–1.5 Nm |
| ATEX Approval | BVS 08 ATEX E 109 U |
| IECEx Approval | BVS 08.0041 U |
| ATEX Marking | II 3G Ex ec IIC Gc; II 2D Ex tb IIIC Db IP65/IP67 |
| Weight | Approx. 1266 g |
| Dimensions | 26.5 × 15.5 × 36.5 mm |
| Pack Quantity | 1 pc |
