EVC159 is a 1.5 m M12 connecting cable with a straight plug designed for industrial automation applications. It features four gold-plated contacts, a halogen-free PUR cable and robust TPU connector construction. High IP protection and resistance to oils and coolants provide dependable operation in harsh environments. Drag-chain suitability supports dynamic machinery applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

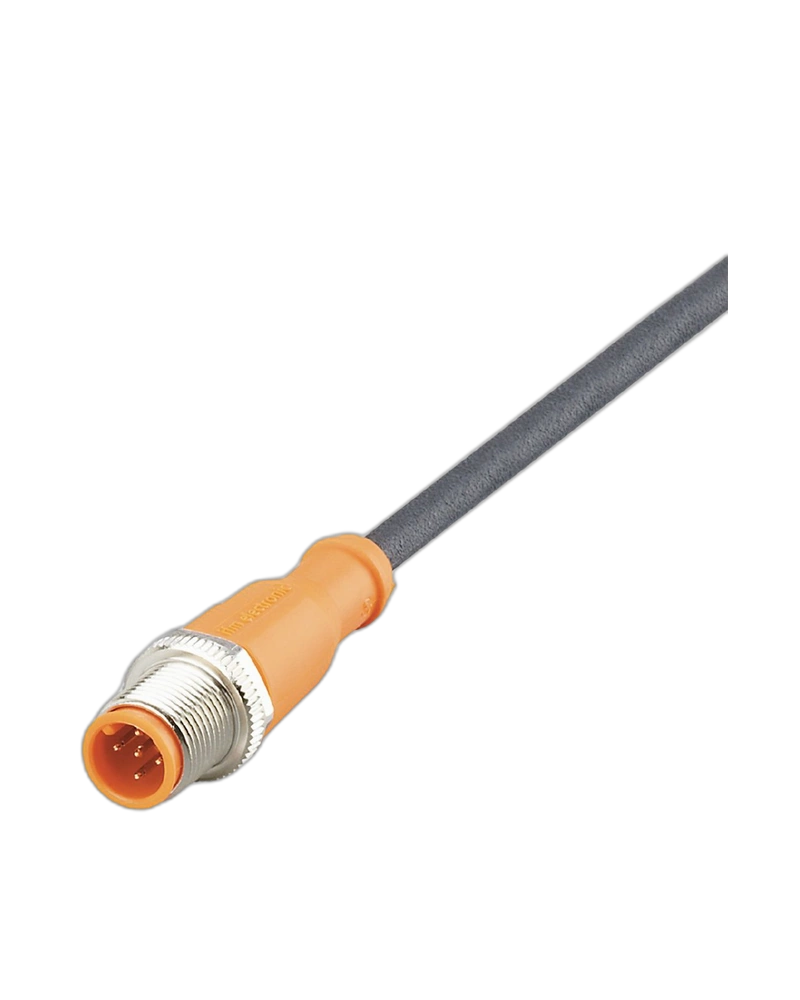

Reliable M12 Plug Connection
EVC159 provides a straight M12 plug connection for industrial sensors and automation equipment. The 1.5 m cable provides convenient machine-level connectivity. Gold-plated contacts support reliable electrical performance. The A-coded interface provides standardized industrial connectivity.
Flexible Industrial Cable
The PUR cable is halogen-free and silicone-free. Its 4 × 0.34 mm² construction provides a durable connection for industrial applications. The cable is designed to withstand demanding machine environments. Its black jacket provides a practical industrial finish.
Environmental Protection
IP65, IP67, IP68 and IP69K protection supports operation in harsh environments. The cable is resistant to oils and coolants. TPU housing and nickel-plated brass locking components improve durability. The wide operating temperature range supports diverse industrial applications.
Dynamic Machine Performance
EVC159 is suitable for drag-chain applications. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This provides reliable operation where cables experience repeated movement.
1.5 m cable length
M12 straight plug
4 gold-plated contacts
A-coded connection
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain compatible
Wide operating temperature range
Industrial automation
Machine tools
Sensors and actuators
Conveyor systems
Production equipment
Robotic machinery
Dynamic automation systems
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTGH040MSS01,5H04 |
| Cable Length | 1.5 m |
| Connector | M12 plug |
| Design | Straight |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.3 mm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Nut | Nickel-plated brass |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 69.2 g |
| Pack Quantity | 1 pc |
