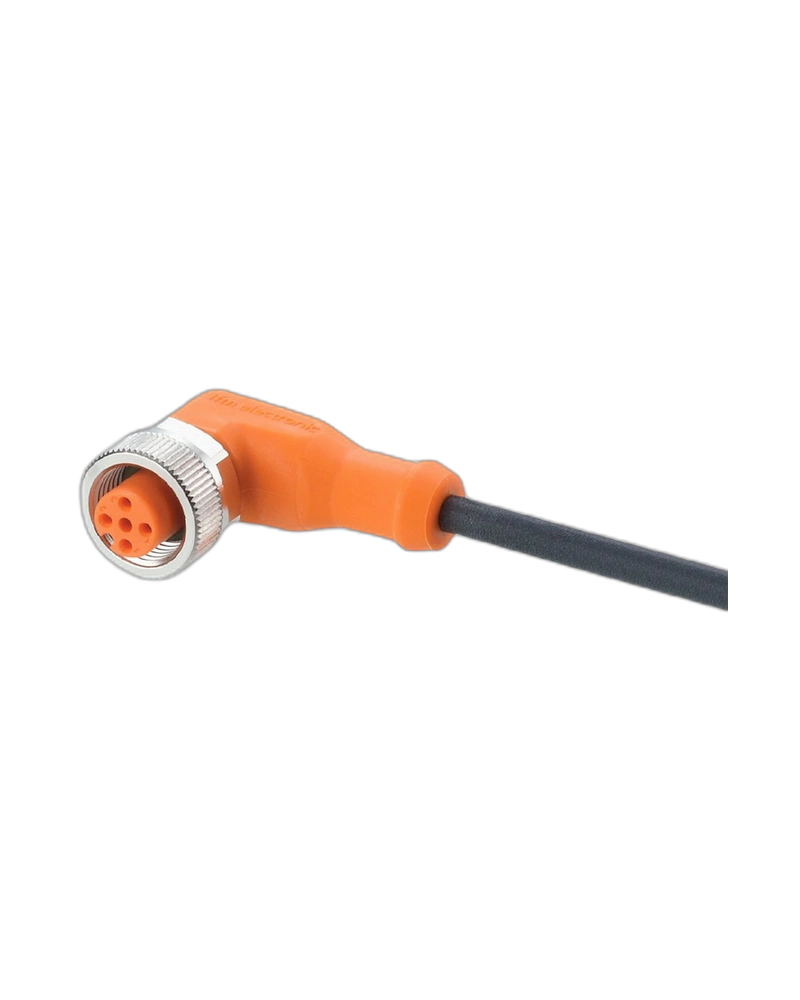

EVC158 is a compact 1.1 m M12 connecting cable designed for reliable industrial sensor connectivity. It features an angled 4-pole M12 socket, gold-plated contacts and a halogen-free PUR cable. High IP protection and drag-chain suitability support demanding industrial environments. Its compact length is useful for localized sensor and machine connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Compact M12 Connectivity
The 1.1 m cable provides a practical connection for sensors located close to control equipment. The angled M12 socket simplifies cable routing in restricted spaces. Gold-plated contacts support dependable electrical performance. The 4-pole A-coded design is suitable for industrial sensors.
High Electrical Capacity
EVC158 supports up to 250 V AC / 300 V DC with a 4 A current rating. This makes it suitable for a broad range of industrial connection applications. The robust M12 connector provides secure electrical and mechanical connection. The cable supports AC/DC applications.
Industrial Protection
The cable uses halogen-free PUR construction with TPU housing and FKM sealing. IP65, IP67, IP68 and IP69K ratings provide strong environmental protection. It is designed for demanding industrial environments. The connector is resistant to oils and coolants.
Dynamic Applications
EVC158 is suitable for drag-chain use and repeated cable movement. It supports more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter is specified. This makes it suitable for dynamic automation machinery.
1.1 m cable length
Angled M12 socket
4-pole A-coded connection
Gold-plated contacts
PUR halogen-free cable
250 V AC / 300 V DC
4 A current rating
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
More than 5 million bending cycles
Industrial sensors
Factory automation
Machine tools
Control systems
Sensor networks
Dynamic machinery
Automation equipment
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAH040MSS01,1H04 |
| Cable Length | 1.1 m |
| Connector | M12 socket |
| Design | Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Approx. Ø 4.3 mm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Nut | Nickel-plated brass |
| Sealing | FKM |
| Tightening Torque | 0.6–1.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 57.8 g |
| Pack Quantity | 1 pc |
