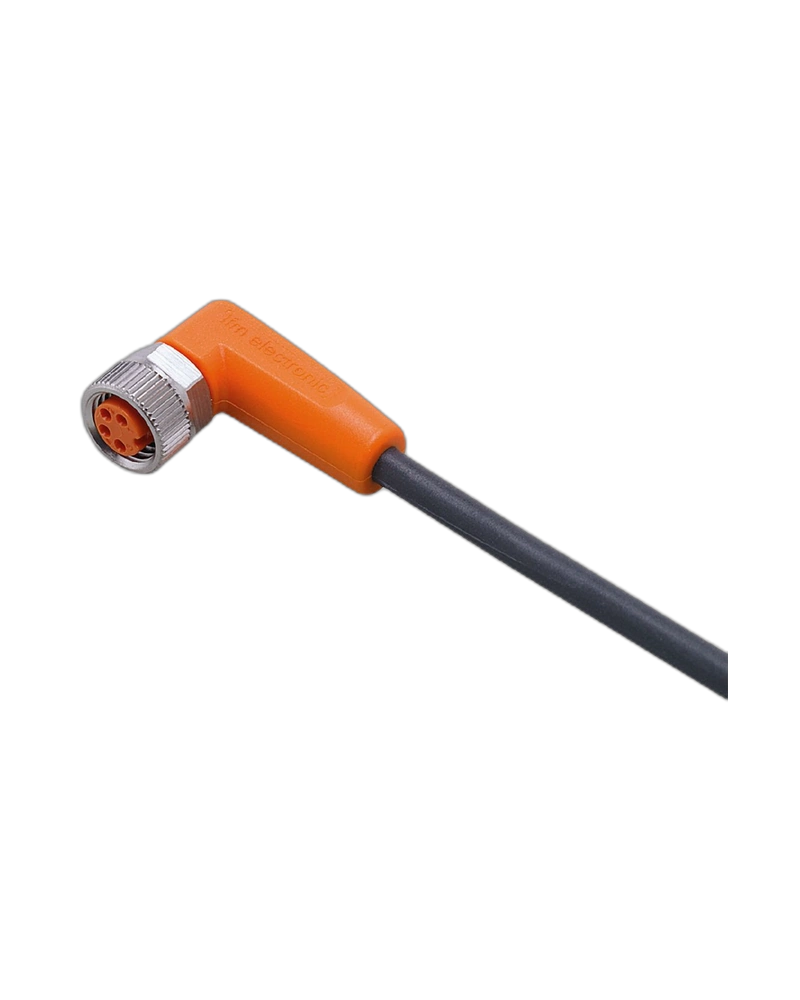

EVC155 is a 10 m angled M8 connecting cable designed for extended industrial sensor and automation connections. It features a 4-pole M8 socket with gold-plated contacts and a PUR halogen-free cable. High IP protection provides reliable operation in harsh industrial environments. Drag-chain compatibility supports continuous movement in automated machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Sensor Connectivity
The 10 m cable provides extended reach between sensors and control equipment. Its angled M8 socket allows practical routing around machines. Gold-plated contacts support reliable electrical transmission. The 4-pole connection supports multiple sensor signals.
Durable Industrial Design
EVC155 uses a PUR halogen-free and silicone-free cable. TPU housing and FKM sealing provide reliable environmental protection. The nickel-plated brass locking system provides secure mechanical connection. The cable is designed for demanding factory environments.
Environmental Resistance
IP65, IP67, IP68 and IP69K protection helps protect the connection against moisture, dust and industrial cleaning. The cable is resistant to oils and coolants. This makes it suitable for machine tools and production systems.
Dynamic Operation
The cable is suitable for drag-chain applications with repeated movement. More than 5 million bending cycles are supported. The minimum bending radius is 10 times the cable diameter. This helps provide long service life in automated machinery.
10 m cable length
Angled M8 socket
4 gold-plated contacts
PUR halogen-free cable
Silicone-free
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
FKM sealing
Drag-chain suitable
More than 5 million bending cycles
Industrial automation
Factory sensors
Machine tools
Conveyor systems
Production equipment
Actuator systems
Robotic machinery
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAF040MSS0010H04 |
| Cable Length | 10 m |
| Connector | M8 socket |
| Design | Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.25 mm² |
| Cable Diameter | Ø 3.7 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Nut | Nickel-plated brass |
| Sealing | FKM |
| Tightening Torque | 0.3–0.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 222.1 g |
| Pack Quantity | 1 pc |
