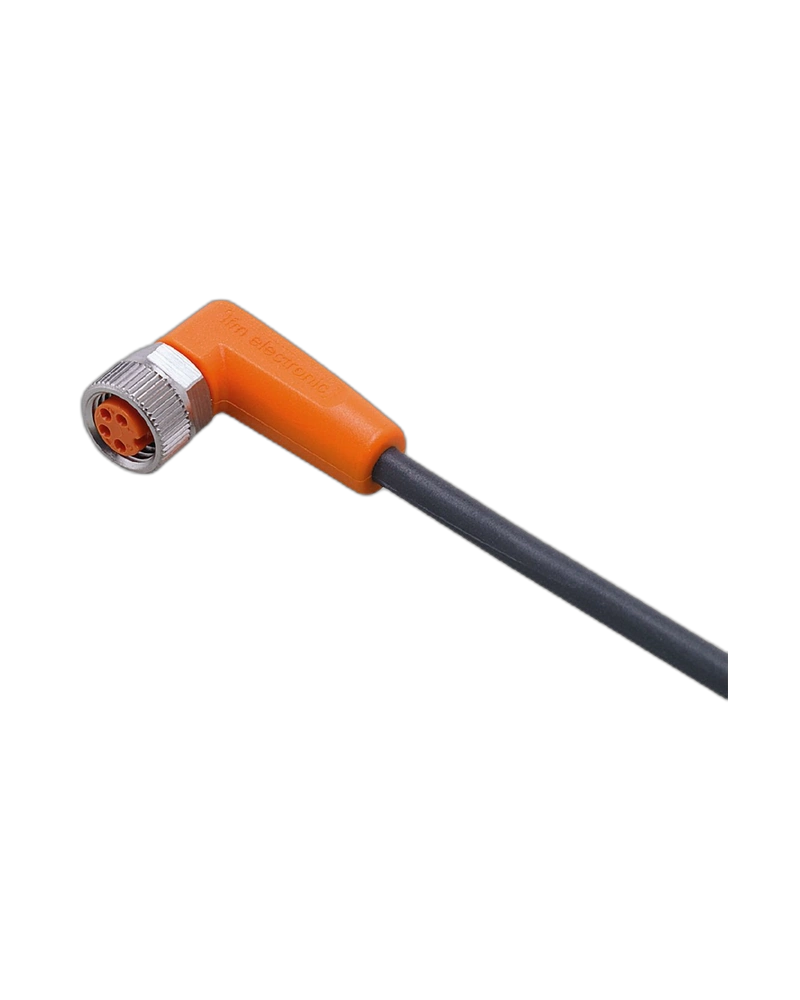

EVC154 is a 5 m angled M8 connecting cable designed for reliable industrial sensor and actuator connectivity. It features four gold-plated contacts, a PUR halogen-free cable and FKM sealing. The cable provides IP65, IP67, IP68 and IP69K protection for harsh industrial environments. Drag-chain suitability supports applications involving repeated movement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Flexible Angled Installation
The angled M8 socket allows easier cable routing around machinery and sensors. The 5 m cable provides useful installation flexibility. Gold-plated contacts support stable electrical performance. Its 4-pole design is suitable for multi-signal sensor connections.
Industrial Construction
The PUR cable is halogen-free and silicone-free. TPU housing and FKM sealing provide mechanical and environmental protection. Nickel-plated brass locking components provide secure connector fastening. The cable is designed for demanding industrial applications.
High Protection Rating
IP65, IP67, IP68 and IP69K protection provides strong resistance against dust, moisture and cleaning conditions. EVC154 is also suitable for environments involving oils and coolants. This makes it suitable for machine tools and factory automation.
Dynamic Machine Use
The cable supports drag-chain installations and repeated movement. It can withstand more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter supports cable longevity. This makes it suitable for automated machinery.
5 m cable length
Angled M8 socket
4 gold-plated contacts
PUR halogen-free cable
Silicone-free construction
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
FKM sealing
Drag-chain suitable
High bending-cycle capability
Factory automation
Industrial sensors
Machine tools
Actuator systems
Conveyor equipment
Production machinery
Robotic applications
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAF040MSS0005H04 |
| Cable Length | 5 m |
| Connector | M8 socket |
| Design | Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.25 mm² |
| Cable Diameter | Ø 3.7 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Nut | Nickel-plated brass |
| Sealing | FKM |
| Tightening Torque | 0.3–0.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 118.2 g |
| Pack Quantity | 1 pc |
