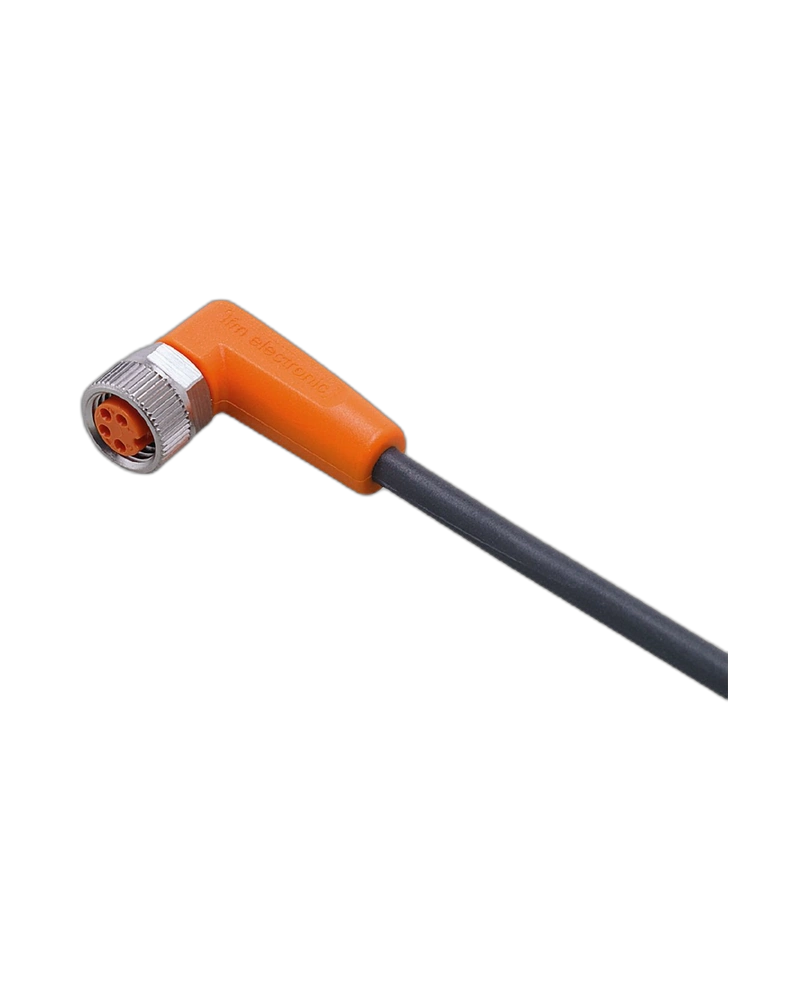

EVC153 is a 2 m angled M8 connecting cable designed for reliable industrial sensor connections. It features a 4-pole A-coded M8 socket with gold-plated contacts and a PUR halogen-free cable. The angled design supports convenient cable routing in restricted spaces. High IP protection and drag-chain suitability make it suitable for demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M8 Connectivity
The angled M8 socket provides flexible installation around sensors and machinery. The 2 m cable provides convenient reach for machine-level connections. Gold-plated contacts support dependable electrical connectivity. The 4-pole configuration provides multiple signal connections.
Compact Machine Integration
The angled connector is useful where straight cable routing is difficult. Its compact construction helps reduce installation space requirements. The TPU housing provides mechanical protection. The connector is suitable for industrial automation systems.
Harsh Environment Protection
EVC153 provides IP65, IP67, IP68 and IP69K protection. The PUR cable is resistant to demanding industrial conditions. FKM sealing helps prevent moisture and contamination. Oil and coolant resistance makes it suitable for machine tools.
Dynamic Performance
The cable supports drag-chain applications and repeated movement. It is designed for more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter helps protect the cable. This makes it suitable for moving automation equipment.
2 m cable length
Angled M8 socket
4-pole A-coded connection
Gold-plated contacts
PUR halogen-free cable
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
FKM sealing
Drag-chain suitable
Vibration and shock resistant
Industrial sensors
Factory automation
Machine tools
Conveyor systems
Robotic machinery
Production equipment
Dynamic automation
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAF040MSS0002H04 |
| Cable Length | 2 m |
| Connector | M8 socket |
| Design | Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.25 mm² |
| Cable Diameter | Ø 3.7 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Nut | Nickel-plated brass |
| Sealing | FKM |
| Tightening Torque | 0.3–0.5 Nm |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 55.5 g |
| Pack Quantity | 1 pc |
