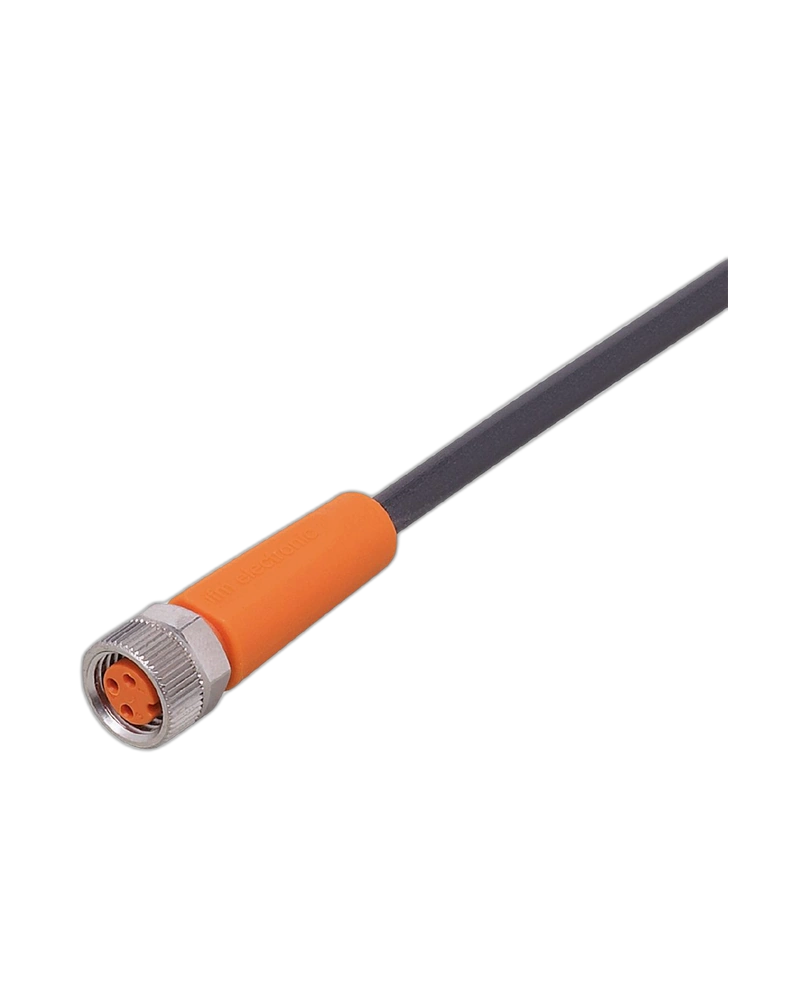

EVC151 is a 5 m M8 connecting cable designed for reliable industrial sensor and actuator connections. It features a straight 4-pole M8 socket with gold-plated contacts and a durable PUR cable. High IP protection provides dependable performance in harsh industrial environments. Its drag-chain compatibility supports repeated movement in automated machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended M8 Connectivity
The 5 m cable length provides greater routing flexibility between sensors and automation equipment. The straight M8 socket allows convenient installation. Gold-plated contacts support stable electrical performance. It is suitable for industrial sensor and actuator connections.
Durable Industrial Construction
The cable uses halogen-free PUR material for reliable industrial operation. TPU housing and FKM sealing provide mechanical and environmental durability. The nickel-plated brass locking nut provides secure connector fastening. These materials are suitable for demanding machine environments.
High Environmental Protection
EVC151 offers IP65, IP67, IP68 and IP69K protection. It is resistant to oils and coolants used around machine tools. The sealed connector design helps prevent moisture and contamination from affecting the connection. This supports reliable operation in harsh environments.
Dynamic Applications
The cable is suitable for drag-chain applications and repeated movement. It supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This makes EVC151 suitable for automated production equipment.
5 m cable length
M8 straight socket
4-pole A-coded connection
Gold-plated contacts
PUR halogen-free cable
Oil and coolant resistance
IP65 / IP67 / IP68 / IP69K
FKM sealing
Drag-chain suitable
High bending-cycle performance
Factory automation
Industrial sensors
Machine tools
Conveyor systems
Actuator connections
Production machinery
Automated equipment
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOGF040MSS0005H04 |
| Cable Length | 5 m |
| Connector | M8 socket |
| Design | Straight |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.25 mm² |
| Cable Diameter | Ø 3.7 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Nut | Nickel-plated brass |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 117.3 g |
| Pack Quantity | 1 pc |
