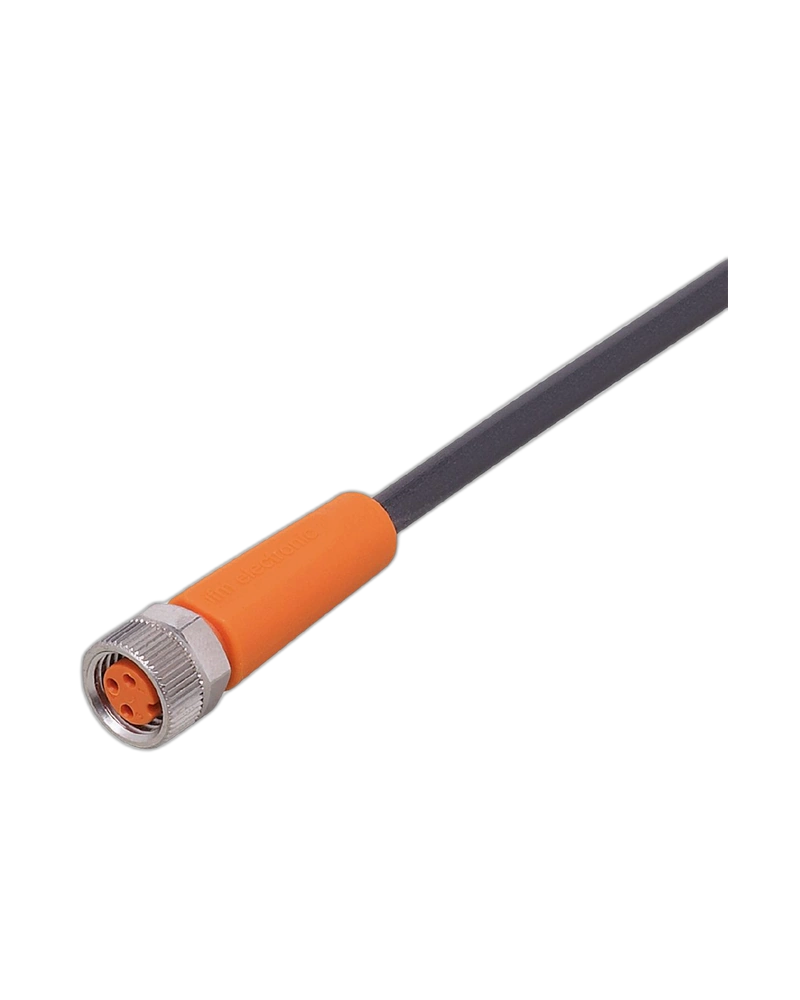

EVC150 is a 2 m M8 connecting cable designed for reliable industrial sensor and actuator connections. It features a straight 4-pole M8 socket with gold-plated contacts and a robust PUR cable. High IP protection provides dependable performance in demanding industrial environments. The cable is also suitable for dynamic machine applications and drag-chain installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M8 Connectivity
EVC150 provides a secure connection between M8 sensors and automation equipment. The 4-pole A-coded socket supports reliable electrical signal transmission. Gold-plated contacts help maintain stable connectivity over extended use. The straight connector design simplifies installation.
Industrial Protection
The PUR cable is halogen-free and silicone-free for demanding industrial environments. IP65, IP67, IP68 and IP69K protection helps safeguard the connection against dust, moisture and cleaning processes. FKM sealing improves environmental resistance. The cable is suitable for oils and coolants.
Dynamic Machine Operation
EVC150 is suitable for drag-chain applications involving continuous cable movement. The cable supports more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter helps protect the cable during movement. This makes it suitable for automated machinery.
Mechanical Reliability
The TPU connector body and nickel-plated brass locking nut provide robust mechanical construction. The coupling system helps resist vibration and shock during machine operation. A mechanical end stop helps protect the sealing system. The result is dependable long-term industrial connectivity.
2 m cable length
M8 straight socket
4-pole A-coded connection
Gold-plated contacts
PUR halogen-free cable
Silicone-free construction
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Industrial sensors
Factory automation
Machine tools
Automation equipment
Conveyor systems
Sensor networks
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOGF040MSS0002H04 |
| Cable Length | 2 m |
| Connector | M8 socket |
| Connector Design | Straight |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.25 mm² |
| Cable Diameter | Ø 3.7 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Operating Temperature | -25°C to +90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Nut Material | Nickel-plated brass |
| Sealing Material | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 56.5 g |
| Pack Quantity | 1 pc |
