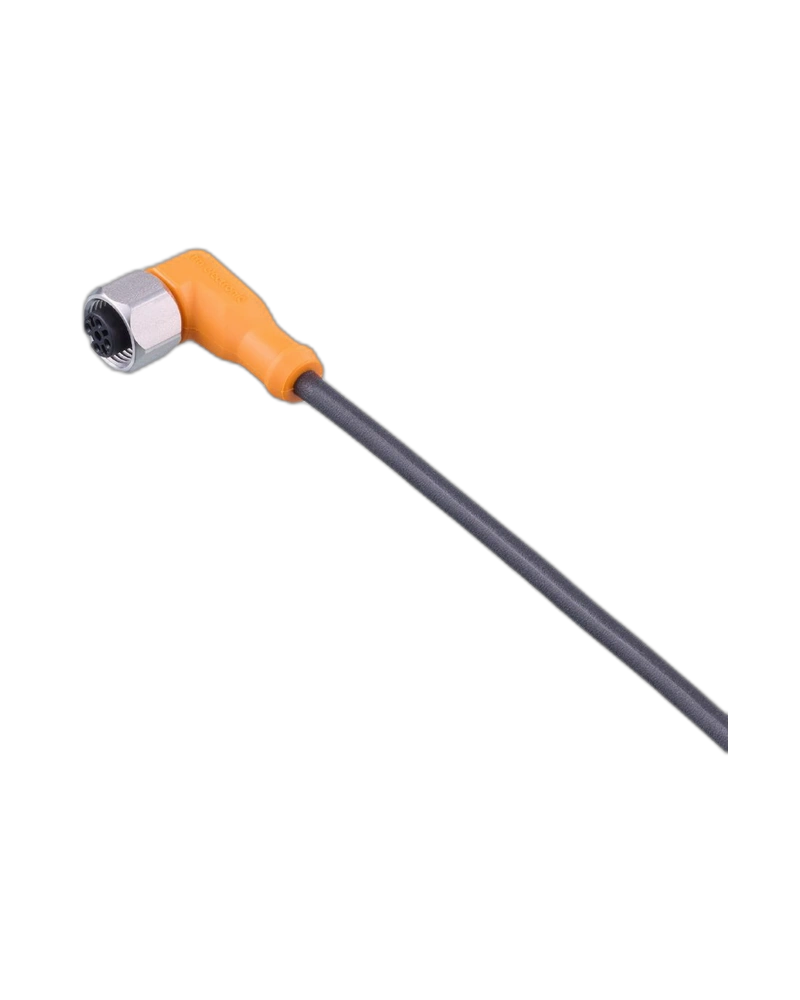

EVC14A is a 25 m M12 connecting cable designed specifically for hazardous-area applications. It features an angled 4-pole M12 socket, gold-plated contacts, PUR halogen-free cable and stainless-steel locking components. ATEX and IECEx approvals make it suitable for specified explosive gas and dust environments. High IP protection and oil/coolant resistance support demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Hazardous-Area Connectivity
EVC14A is designed for industrial installations requiring certified hazardous-area connection technology. It carries BVS 08 ATEX E 109 U and IECEx BVS 08.0041 U approvals. The specified ATEX marking supports gas and dust hazardous-area applications. This makes it suitable for specialized industrial environments.
Robust M12 Construction
The cable uses a 4-pole angled M12 connector with gold-plated contacts. Stainless-steel 316L / 1.4404 locking components provide high mechanical durability. FKM sealing helps protect the connector against environmental exposure. The design supports reliable industrial connections.
Long-Distance Installation
The 25 m cable length provides extended routing for large machines and process installations. The PUR cable is halogen-free and black. Its 4 × 0.34 mm² conductor configuration supports reliable connection. The angled M12 connector helps simplify cable routing in restricted spaces.
High Environmental Protection
EVC14A provides IP67 protection in the hazardous-area application and IP68/IP69K when used outside the hazardous area. The operating temperature range is -20°C to +60°C. Its construction is suitable for demanding industrial environments and exposure to oils and coolants.
25 m cable length
M12 angled socket
4 gold-plated contacts
A-coded connection
PUR halogen-free cable
Stainless-steel 316L locking components
FKM sealing
ATEX approved
IECEx approved
IP67 hazardous-area protection
IP68 / IP69K outside hazardous area
Oil and coolant resistant
Hazardous-area automation
Oil and gas facilities
Chemical processing
Process industries
Explosion-risk environments
Industrial sensor connections
Factory automation
Monitoring and control systems
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAH040VAT0025H04/3G/2D |
| Cable Length | 25 m |
| Connector | M12 socket |
| Design | Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | <60 V AC/DC |
| Operating Temperature | -20°C to +60°C |
| Protection | IP67; IP68 / IP69K outside hazardous area |
| Housing | TPU orange |
| Locking Material | Stainless steel 316L / 1.4404 |
| Sealing | FKM |
| Tightening Torque | 1.2–1.5 Nm |
| ATEX Approval | BVS 08 ATEX E 109 U |
| IECEx Approval | BVS 08.0041 U |
| ATEX Marking | II 3G Ex ec IIC Gc; II 2D Ex tb IIIC Db IP65/IP67 |
| Cable Colour | Black |
| Weight | 833 g |
| Dimensions | 26.5 × 15.5 × 36.5 mm |
| Pack Quantity | 1 pc |
