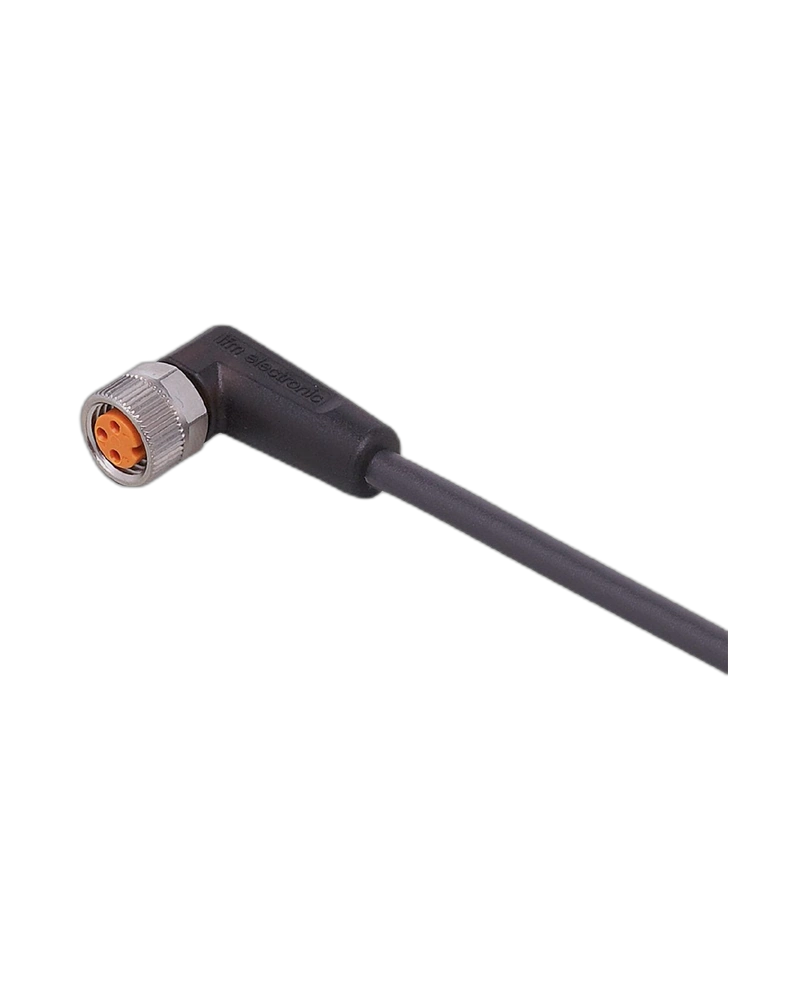

EVC149 is a 10 m angled M8 connecting cable designed for PNP sensor and industrial automation applications. It provides integrated LED indication for operation and switching status. Gold-plated contacts, PUR halogen-free cable construction and high IP protection ensure reliable performance in demanding environments. Its 10 m length is suitable for larger machines and extended sensor routing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended PNP Connectivity
The 10 m cable provides extended reach for industrial sensor installations. Its 3-pole angled M8 socket supports convenient machine integration. The PNP electrical design operates at 10–36 V DC. Gold-plated contacts provide reliable electrical connectivity.
LED Diagnostic Indication
Green and yellow LEDs provide direct visual information about operation and switching status. The LEDs are clearly visible even under bright industrial lighting. This helps reduce troubleshooting time. It is especially useful during machine commissioning and maintenance.
Harsh Industrial Protection
EVC149 offers IP65, IP67, IP68 and IP69K protection. The PUR cable is halogen-free and silicone-free. FKM sealing provides reliable environmental protection. The cable is designed for applications involving oils, coolants and industrial cleaning.
Dynamic Machine Applications
The cable is suitable for drag-chain use and repeated movement. It supports more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter supports cable longevity.
10 m cable length
Angled M8 socket
3 gold-plated contacts
10–36 V DC operation
PNP electrical design
Green operation LED
Yellow switching LED
PUR halogen-free cable
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
PNP sensor systems
Factory automation
Machine tools
Industrial monitoring
Conveyor systems
Production equipment
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAF032MSS0010H03 |
| Cable Length | 10 m |
| Connector | M8 socket |
| Design | Angled |
| Coding | A-coded |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Cable Size | 3 × 0.25 mm² |
| Cable Diameter | Ø 3.7 mm |
| Operating Voltage | 10–36 V DC |
| Current Rating | 3 A |
| Electrical Design | PNP |
| Protection Class | III |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU black transparent |
| Nut | Nickel-plated brass |
| Sealing | FKM |
| LEDs | 1 green + 1 yellow |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| MTTF | 31,710 years |
| Weight | 204.3 g |
| Pack Quantity | 1 pc |
