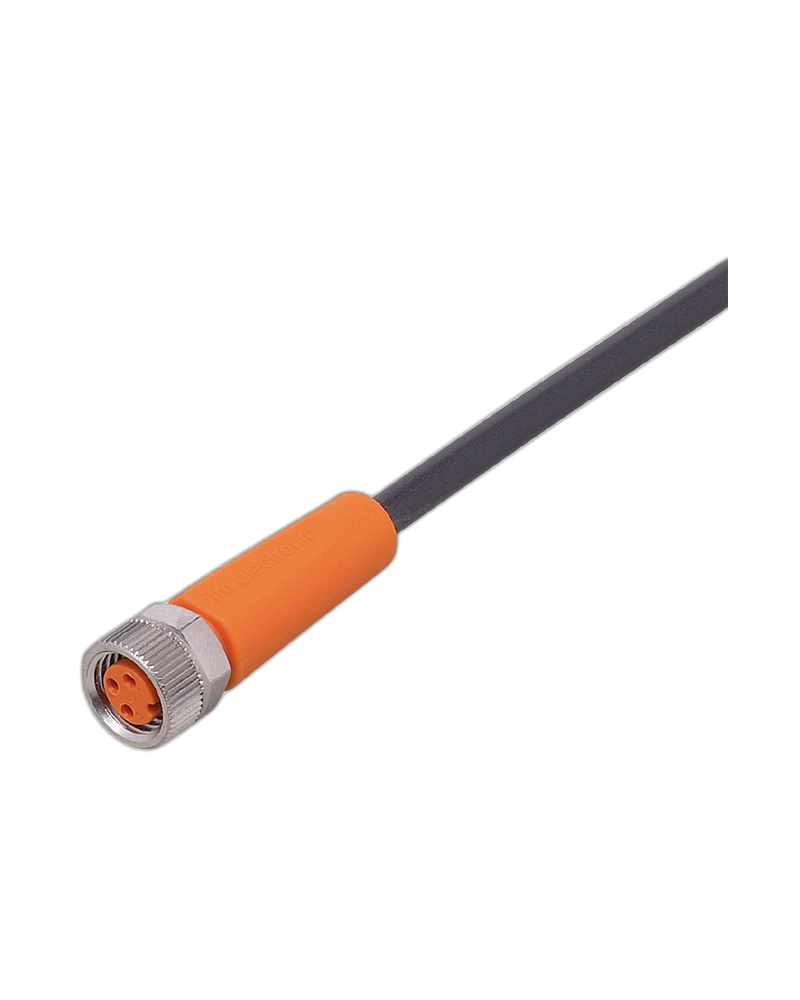

EVC143 is a 10 m M8 connecting cable designed for extended industrial sensor and actuator connections. Its straight 3-pole socket, gold-plated contacts and PUR cable provide dependable connectivity. High IP protection supports use in demanding industrial environments. The cable is also suitable for drag-chain applications requiring repeated movement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Long-Distance Connectivity
The 10 m cable length allows sensors and automation devices to be connected over longer machine distances. The straight M8 socket provides convenient installation. Gold-plated contacts help maintain reliable electrical conductivity. It is suitable for industrial automation systems.
Industrial-Grade Construction
The cable is manufactured using black halogen-free PUR material. TPU housing and FKM sealing provide durability in demanding environments. Nickel-plated brass locking components provide secure connections. The cable is suitable for machine tools and factory automation.
Environmental Resistance
EVC143 provides IP65, IP67, IP68 and IP69K protection. It is designed to withstand exposure to oils, coolants, dust and moisture. This makes it suitable for harsh production environments. The robust construction helps extend service life.
Dynamic Installation
Drag-chain suitability allows the cable to be used in moving machinery. It supports more than 5 million bending cycles. A minimum bending radius of 10 times the cable diameter helps protect the cable during movement.
10 m cable length
M8 straight socket
3-pole connection
Gold-plated contacts
PUR halogen-free construction
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
FKM sealing
Drag-chain compatible
High bending-cycle capability
Factory automation
Machine tools
Industrial sensor networks
Actuator systems
Production lines
Conveyor systems
Automated machinery
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOGF030MSS0010H03 |
| Cable Length | 10 m |
| Connector | M8 socket |
| Design | Straight |
| Coding | A-coded |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Cable Size | 3 × 0.25 mm² |
| Cable Diameter | Ø 3.7 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Nut | Nickel-plated brass |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | 207 g |
| Pack Quantity | 1 pc |
