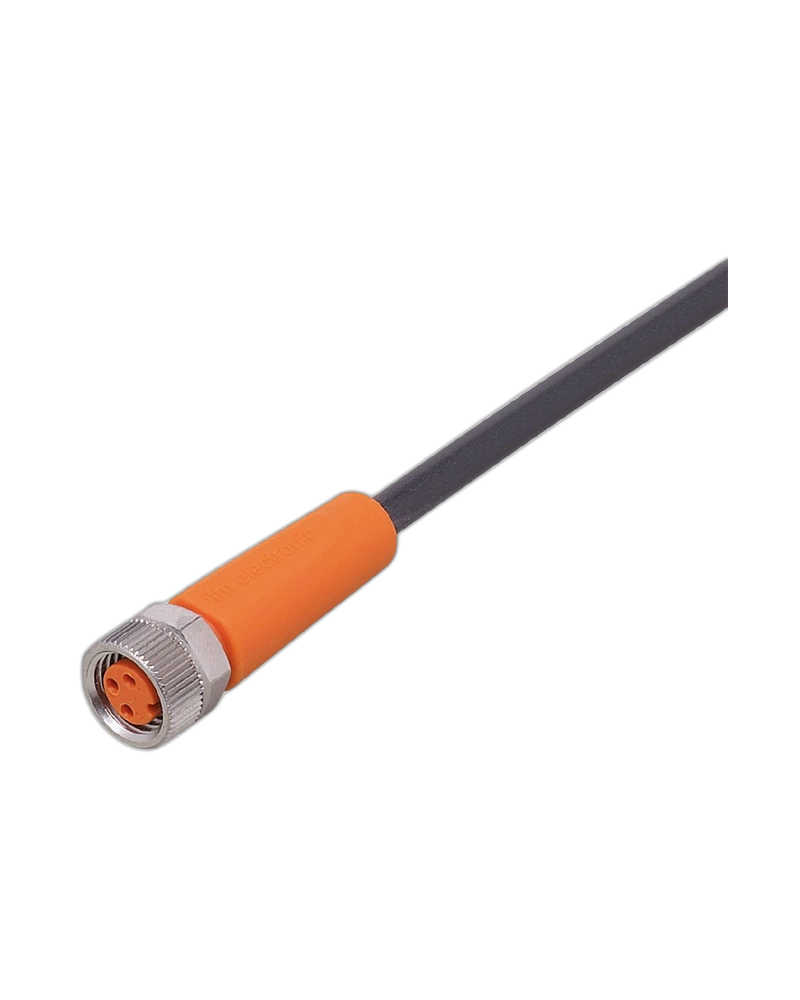

EVC142 is a 5 m M8 connecting cable designed for dependable industrial sensor and actuator connectivity. It uses a straight 3-pole M8 socket with gold-plated contacts and a durable PUR cable. High IP protection and resistance to oils and coolants make it suitable for harsh factory environments. Drag-chain suitability supports applications involving repeated cable movement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended M8 Connectivity
The 5 m cable provides additional routing distance between sensors and automation equipment. Its straight M8 socket supports straightforward installation. Gold-plated contacts help maintain reliable electrical performance. The cable is suitable for industrial automation systems.
Durable Cable Construction
The cable uses black, halogen-free PUR material with a 3 × 0.25 mm² conductor configuration. FKM sealing and TPU housing provide mechanical and environmental durability. Nickel-plated brass locking components provide secure connection. The design is intended for industrial use.
High Environmental Protection
IP65, IP67, IP68 and IP69K protection ratings support operation in demanding environments. The cable is resistant to oils and coolants. It can be used around machine tools and production equipment. Its robust construction helps maintain reliable connections.
Dynamic Machine Applications
EVC142 is suitable for drag-chain installations. The cable supports more than 5 million bending cycles and a minimum bending radius of 10 times its diameter. This makes it suitable for automated machinery with repeated movement.
5 m cable length
Straight M8 socket
3 gold-plated contacts
PUR halogen-free cable
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistance
FKM sealing
Drag-chain suitable
Vibration and shock resistance
More than 5 million bending cycles
Factory automation
Industrial sensors
Machine tools
Actuator systems
Conveyor systems
Production machinery
Dynamic automation equipment
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOGF030MSS0005H03 |
| Cable Length | 5 m |
| Connector | M8 socket |
| Design | Straight |
| Coding | A-coded |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Cable Size | 3 × 0.25 mm² |
| Cable Diameter | Ø 3.7 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU orange |
| Nut | Nickel-plated brass |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Weight | 105.7 g |
| Pack Quantity | 1 pc |
