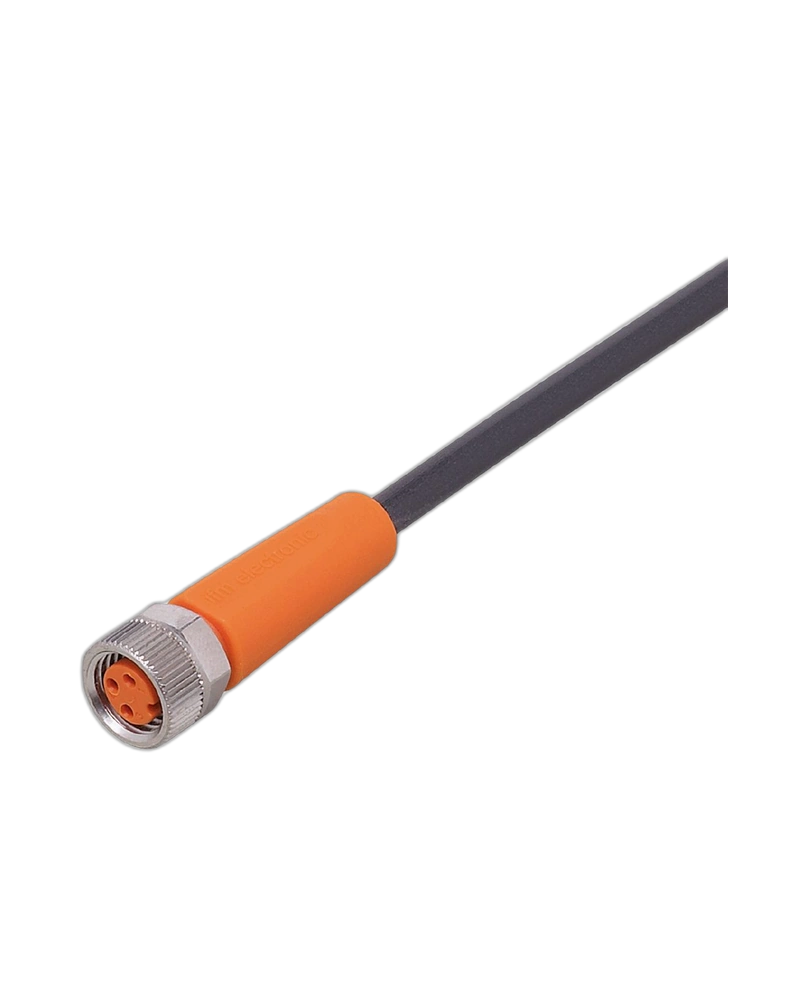

EVC141 is a 2 m M8 connecting cable designed for reliable sensor and actuator connections in industrial automation. It features a straight 3-pole M8 socket with gold-plated contacts and a halogen-free PUR cable. The cable provides high environmental protection and excellent resistance to oils and coolants. It is also suitable for dynamic applications and drag-chain installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M8 Connectivity
EVC141 provides a dependable 3-pole M8 connection for industrial sensors and automation devices. The straight socket design allows simple and direct installation. Gold-plated contacts support stable electrical connectivity. It is suitable for factory automation and machine-tool applications.
Industrial Protection
The PUR cable is halogen-free and silicone-free for demanding industrial environments. IP65, IP67, IP68 and IP69K protection helps protect the connection against dust, moisture and industrial cleaning conditions. FKM sealing improves connector reliability. The cable is also suitable for oil and coolant environments.
Dynamic Operation
EVC141 is suitable for drag-chain applications involving repeated movement. It supports a minimum bending radius of 10 times the cable diameter. More than 5 million bending cycles are specified. This makes it suitable for moving machinery and automated equipment.
Easy Machine Integration
The compact connector design makes EVC141 suitable for sensors with M8 interfaces. The 2 m cable provides practical reach for machine-level connections. Its vibration- and shock-resistant construction supports dependable operation. It is suitable for industrial automation systems.
2 m cable length
M8 straight socket
3-pole connection
Gold-plated contacts
PUR halogen-free cable
Silicone-free construction
IP65 / IP67 / IP68 / IP69K protection
Oil and coolant resistant
Drag-chain suitable
More than 5 million bending cycles
Industrial sensors
Factory automation
Machine tools
Sensor connections
Actuator connections
Conveyor equipment
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOGF030MSS0002H03 |
| Cable Length | 2 m |
| Connector | M8 socket |
| Connector Design | Straight |
| Coding | A-coded |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Cable Size | 3 × 0.25 mm² |
| Cable Diameter | Ø 3.7 mm |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Operating Temperature | -25°C to +90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Nut | Nickel-plated brass |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | 51.6 g |
| Pack Quantity | 1 pc |
