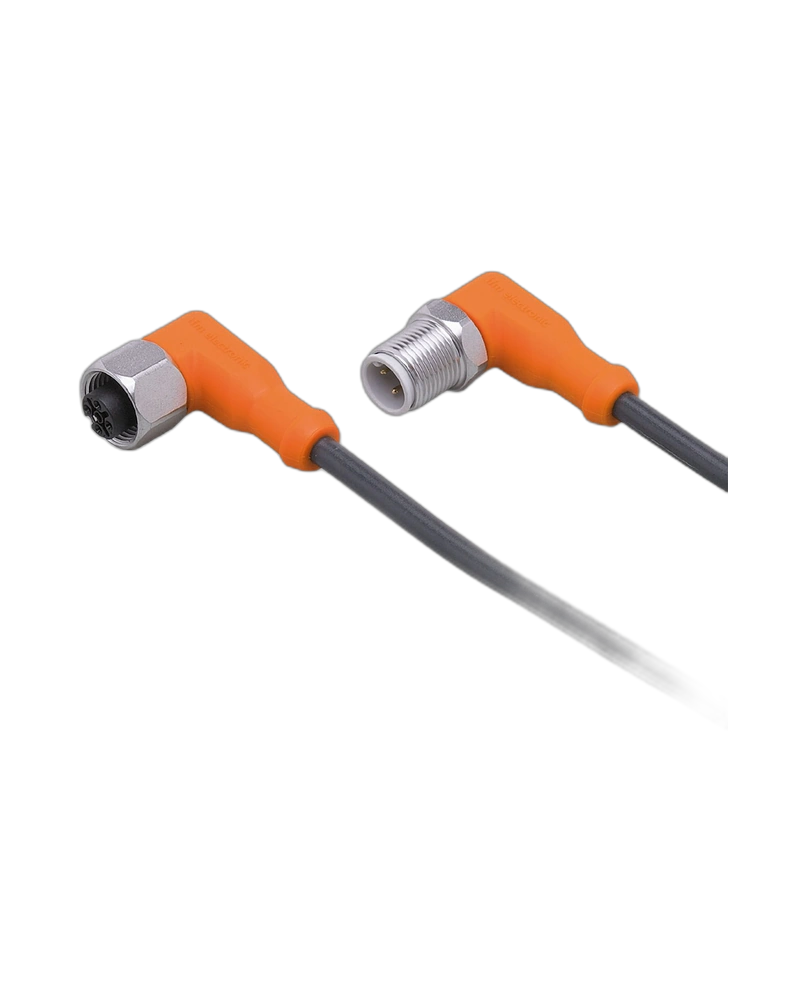

EVC13A is a 10 m M12 connection cable designed for industrial applications requiring hazardous-area suitability. It features halogen-free PUR cable construction, gold-plated contacts and stainless-steel locking components. The cable carries ATEX and IECEx approvals for specified hazardous-area applications. Its robust construction also provides high protection against industrial environmental conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Hazardous-Area Connectivity
EVC13A is designed for applications requiring certified connection technology in hazardous areas. It carries BVS 08 ATEX E 109 U and IECEx BVS 08.0041 U approvals. The cable is designed for specified gas and dust hazardous-area classifications. This makes it suitable for specialized industrial installations where standard cables may not be sufficient.
Robust Stainless-Steel Construction
The connector uses stainless steel 316L / 1.4404 locking components. FKM sealing and TPU housing provide robust mechanical and environmental protection. Gold-plated contacts support reliable electrical connectivity. The construction is designed for demanding industrial environments.
Long-Distance Installation
The 10 m PUR cable provides extended routing between field devices and control equipment. Its black halogen-free cable construction is suitable for industrial installations. M12 A-coded connectivity supports standardized device integration. The angled connector configuration helps simplify cable routing.
Environmental Protection
EVC13A provides IP67 protection when used in the specified Ex environment and higher IP68/IP69K protection outside hazardous areas. The operating temperature range is -20°C to +60°C. The cable is resistant to oils and coolants. Its construction supports demanding industrial installations.
10 m cable length
M12 A-coded connection
4 gold-plated contacts
PUR halogen-free cable
Stainless-steel 316L locking components
FKM sealing
ATEX approved
IECEx approved
IP67 hazardous-area protection
IP68 / IP69K outside hazardous areas
Hazardous-area automation
Chemical processing plants
Oil and gas facilities
Industrial process equipment
Explosion-risk environments
Sensor and actuator connections
Industrial monitoring systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH040VAT0010H04STAH040VAT |
| Cable Length | 10 m |
| Connector | M12 |
| Connector Configuration | Angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.9 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 2 A |
| Operating Temperature | -20°C to +60°C |
| Protection | IP67; IP68/IP69K outside Ex area |
| Housing | TPU |
| Locking Material | Stainless steel 316L / 1.4404 |
| Sealing | FKM |
| ATEX Approval | BVS 08 ATEX E 109 U |
| IECEx Approval | BVS 08.0041 U |
| ATEX Marking | II 3G Ex ec IIC Gc; II 2D Ex tb IIIC Db IP65/IP67 |
| Weight | 365.7 g |
| Dimensions | 31 × 15.5 × 36.5 mm |
| Pack Quantity | 1 pc |
