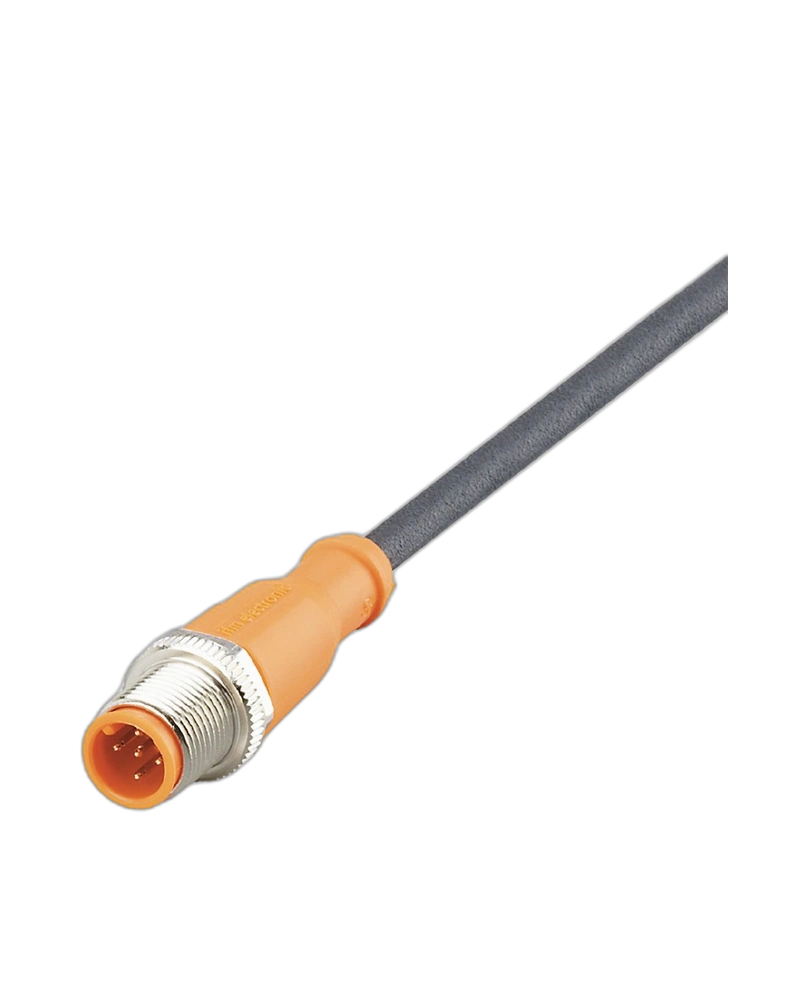

EVC139 is a compact M12 connecting cable with plug designed for industrial automation and control applications. It features a 0.3 m PUR halogen-free cable and gold-plated contacts. The cable provides IP65, IP67, IP68 and IP69K protection for demanding industrial environments. Its compact design is suitable for short-distance device connections and machine installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Compact Device Connection
EVC139 is designed for short-distance connections between industrial devices. Its 0.3 m cable length helps reduce excess cable routing inside compact installations. The straight M12 plug supports convenient device connection. Gold-plated contacts support reliable electrical conductivity.
Industrial Protection
The cable uses a PUR halogen-free construction designed for industrial applications. IP65, IP67, IP68 and IP69K ratings provide protection against demanding environmental conditions. TPU construction and robust connector materials support long-term reliability. The cable is also suitable for oil and coolant environments.
Mechanical Durability
EVC139 is suitable for dynamic industrial environments and drag-chain use. It supports a minimum bending radius of 10 times the cable diameter. More than 5 million bending cycles are specified. This provides durability for repeated machine movement.
Automation Applications
The cable is suitable for industrial automation and factory equipment. Its compact form factor is useful where installation space is restricted. The M12 interface supports standardized industrial connectivity. It can be used for sensor, actuator and control connections.
0.3 m cable length
M12 straight plug
Gold-plated contacts
PUR halogen-free cable
IP65 / IP67 / IP68 / IP69K
4 A current rating
Compact construction
Drag-chain suitable
Oil and coolant resistant
High mechanical durability
Industrial automation
Sensor connections
Control systems
Machine tools
Factory equipment
Compact control cabinets
Automation machinery
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTGH050MSS00,3H05 |
| Cable Length | 0.3 m |
| Connector | M12 straight |
| Contacts | Gold-plated |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Ø 4.6 mm |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Overall UL Current Rating | 3 A |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Nut | Nickel-plated brass |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Dimensions | 15.5 × 15.5 × 49.5 mm |
| Weight | 38.288 g |
| Pack Quantity | 1 pc |
