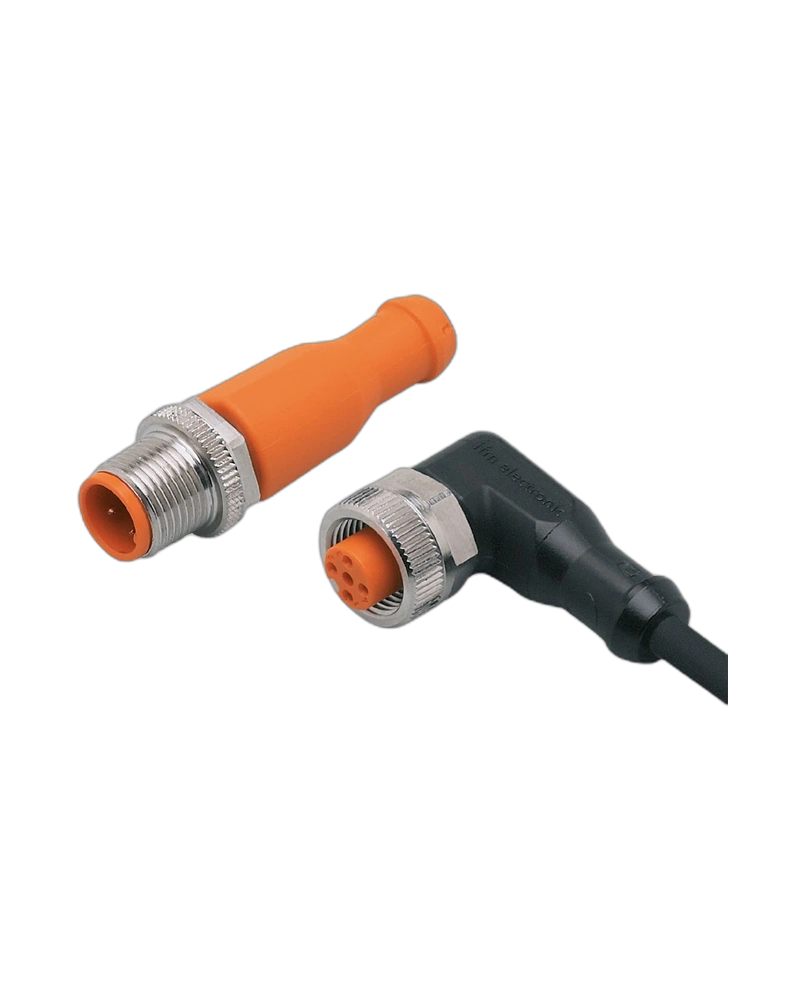

EVC137 is a 20 m M12 connection cable designed for long-distance industrial sensor and actuator connections. It combines a PUR halogen-free cable with gold-plated contacts and robust M12 connectors. The cable supports DC PNP applications and includes clear LED status indication. High IP protection and drag-chain suitability make it appropriate for harsh and dynamic machinery environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Industrial Connectivity
The 20 m cable length provides extended reach for large machines and production systems. M12 connectors support standardized sensor and actuator connections. Gold-plated contacts help maintain dependable electrical performance. The cable is designed for industrial automation applications.
Harsh Environment Performance
EVC137 is resistant to oils and coolants commonly found in machine environments. Its IP65, IP67, IP68 and IP69K protection ratings support demanding installation conditions. PUR cable construction provides mechanical durability. FKM sealing helps maintain connector protection.
Dynamic Machine Movement
The cable is suitable for drag-chain applications with repeated movement. It supports a minimum bending radius of 10 times the cable diameter. More than 5 million bending cycles are specified. This makes it suitable for automated and moving machinery.
LED Status Monitoring
EVC137 includes two yellow switching-status LEDs and one green operation LED. This gives technicians direct visual feedback during commissioning and maintenance. The visible indicators simplify status checking. This is particularly useful in industrial control environments.
20 m cable length
M12 plug and socket
DC PNP design
10–36 V DC operation
Gold-plated contacts
LED status indication
PUR halogen-free cable
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
Oil and coolant resistant
Factory automation
Machine tools
Sensor and actuator networks
Robotic machinery
Conveyor systems
Production equipment
Dynamic industrial installations
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH043MSS0020H04STGH040MSS |
| Cable Length | 20 m |
| Connector | M12 |
| Configuration | Straight plug / angled socket |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Approx. Ø 4.9 mm |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| LEDs | 1 green + 2 yellow |
| Housing | TPU |
| Sealing | FKM |
| Nut | Nickel-plated brass |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 577.2 g |
| MTTF | 20,027 years |
