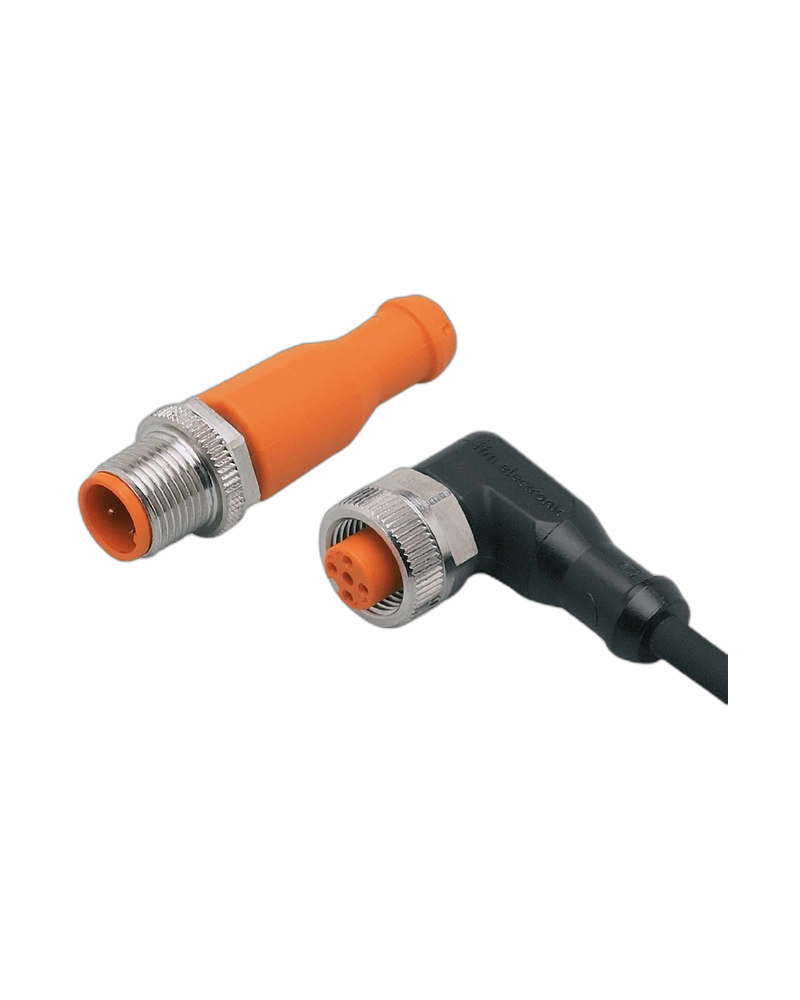

EVC136 is a 15 m M12 connection cable designed for reliable industrial sensor and actuator connectivity. Its PUR cable, gold-plated contacts and robust connector construction support demanding automation applications. The cable provides high environmental protection and is suitable for drag-chain installations. LED indicators provide convenient visual status information.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Industrial Connectivity
EVC136 provides reliable M12 connectivity for sensors and actuators in industrial automation. Its 15 m cable length supports longer machine layouts. The connector configuration enables practical installation around equipment. Gold-plated contacts support stable electrical performance.
Harsh Environment Resistance
The cable is designed to withstand exposure to oils and coolants. IP65, IP67, IP68 and IP69K protection helps protect the connection against demanding environmental conditions. PUR construction improves cable durability. FKM sealing supports reliable connector protection.
Dynamic Operation
EVC136 is suitable for drag-chain applications and repeated movement. The cable supports a minimum bending radius of 10 times its diameter. More than 5 million bending cycles are specified. This makes it suitable for automated machinery with regular cable movement.
Visual Status Monitoring
The connection provides green operation indication and two yellow switching-status LEDs. This allows quick visual confirmation of operating and switching conditions. The LEDs are designed to remain visible in bright industrial environments. This can simplify maintenance and troubleshooting.
15 m cable length
M12 A-coded connection
4 gold-plated contacts
DC PNP electrical design
Green operation LED
2 yellow status LEDs
PUR halogen-free cable
IP65 / IP67 / IP68 / IP69K
Drag-chain compatible
Oil and coolant resistant
Industrial automation
Sensors and actuators
Machine tools
Robotic equipment
Conveyor systems
Factory production lines
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH043MSS0015H04STGH040MSS |
| Cable Length | 15 m |
| Connector | M12 |
| Configuration | Straight plug / angled socket |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.3 mm |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Electrical Design | DC PNP |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing | TPU |
| Sealing | FKM |
| Nut | Nickel-plated brass |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Weight | 424.5 g |
| MTTF | 20,027 years |
