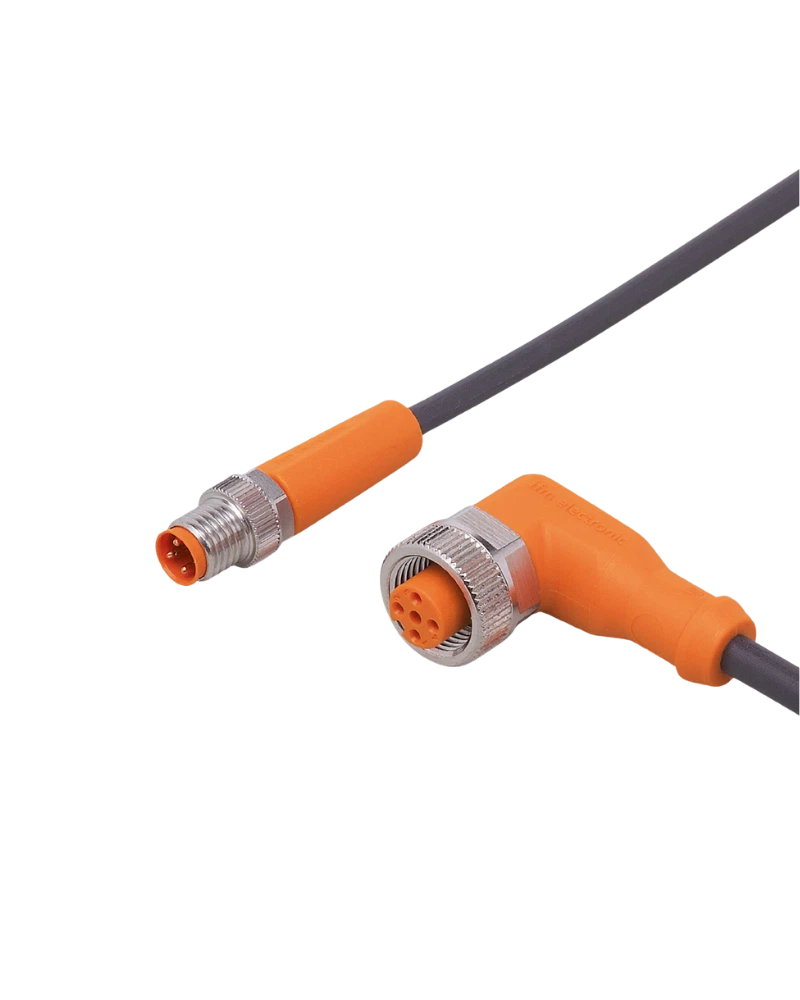

EVC135 is a 10 m M12 connection cable designed for industrial sensor and actuator applications. It features a PUR halogen-free cable with gold-plated contacts and robust connector construction. Integrated LED indication provides clear operating and switching-status visibility. Its high protection rating and mechanical durability make it suitable for demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable Sensor Connectivity
EVC135 provides a dependable M12 connection for industrial sensors and automation devices. The straight plug and angled socket configuration supports practical installation. Gold-plated contacts help maintain stable electrical connectivity. It is designed for industrial control and sensing applications.
Clear LED Indication
The connector provides visual operating and switching-status indication. A green LED indicates operation while two yellow LEDs indicate switching status. This helps technicians identify device status quickly. Clear indication can simplify troubleshooting and maintenance.
Durable Industrial Design
The cable uses PUR construction with halogen-free characteristics. The connector assembly uses TPU housing and FKM sealing. It is designed to resist oils and coolants encountered in industrial environments. The high protection rating supports demanding operating conditions.
Dynamic Machine Applications
EVC135 is suitable for applications involving repeated cable movement. Drag-chain compatibility and a minimum bending radius of 10 times the cable diameter support dynamic installation. The cable is designed for more than 5 million bending cycles. This supports reliable operation in automated machinery.
10 m cable length
M12 A-coded connectors
4 gold-plated contacts
Green operation LED
2 yellow switching-status LEDs
PUR halogen-free cable
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistance
Drag-chain suitable
FKM sealing
Factory automation
Sensor and actuator connections
Machine tools
Robotic systems
Conveyor equipment
Industrial control systems
Condition monitoring installations
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH043MSS0010H04STGH040MSS |
| Cable Length | 10 m |
| Connector | M12 |
| Configuration | Straight plug / angled socket |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable | PUR, halogen-free |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.3 mm |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Electrical Design | DC PNP |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| LEDs | 1 green + 2 yellow |
| Housing | TPU |
| Sealing | FKM |
| Drag Chain | Yes |
| Bending Cycles | >5 million |
| Bending Radius | Min. 10 × cable diameter |
| Weight | Approx. 355 g |
| MTTF | 20,027 years |
